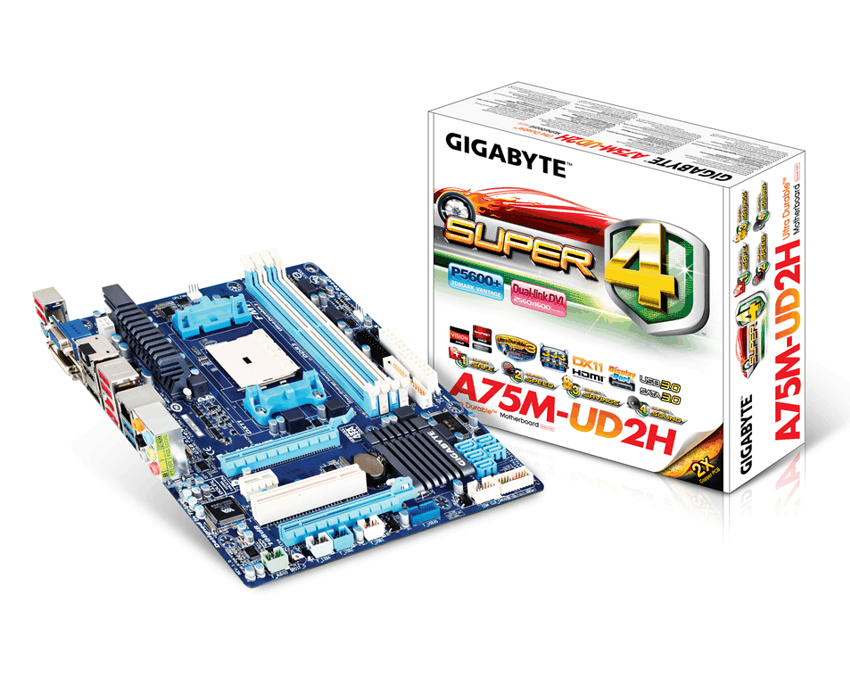

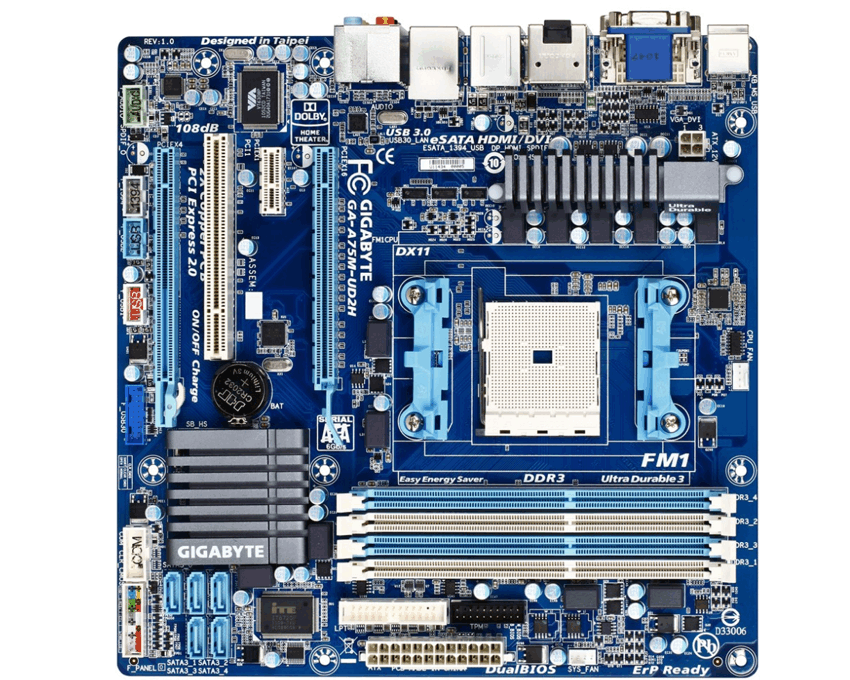

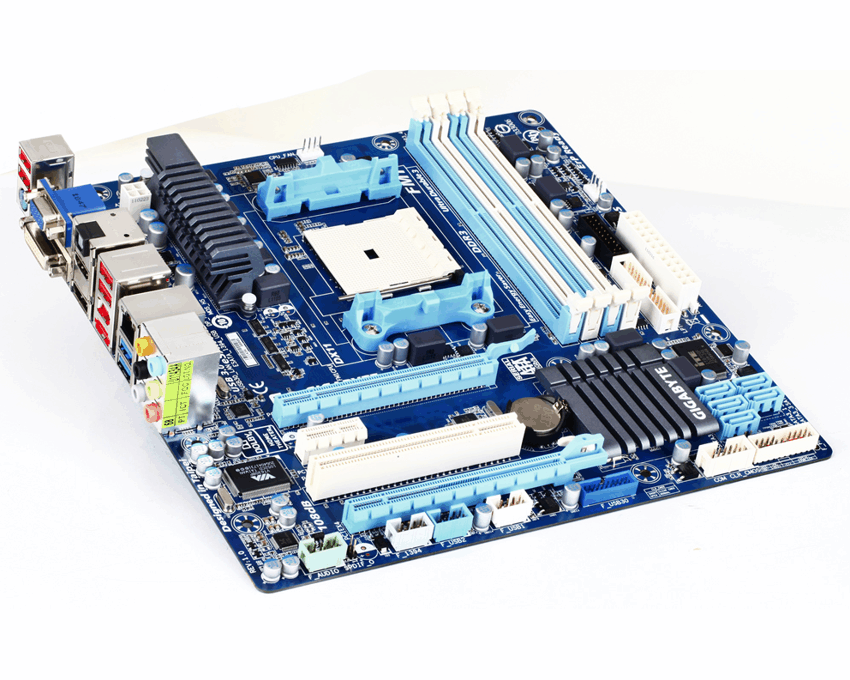

Placa Base Gigabyte GA-A75M-UD2H



Placa-Base-Gigabyte-GA-A75M-UD2H-foto1.jpgPlaca-Base-Gigabyte-GA-A75M-UD2H-foto2.jpgPlaca-Base-Gigabyte-GA-A75M-UD2H-foto3.jpgPlaca-Base-Gigabyte-GA-A75M-UD2H-foto4.jpg
Cod. Producto: A-3860
Familia: Componentes
Sección: Placas Base
Categoría: Placas Base
Fabricante: GIGABYTE
Part Number:
Garantía: 2 Años
Disponibilidad: 0 Unidades
Entrega en el Día
ver condiciones
Envio: Gratis

Descatalogado
Descripción de Producto
Producto Gigabyte Placa Base AMD GA-A75M-UD2H
Descripción Gigabyte GA-A75M-UD2H
Supports Socket FM1 of 32nm AMD A-series/E2-series processors
Enhanced AMD Radeon HD 65xx/64xx/63xx graphics (DX11) integrated with the processor
Integrated USB 2.0 and SATA2 interfaces with RAID 0,1,10
GIGABYTE 3x USB Power with On/Off Charge USB ports
Supports 4 USB 3.0 interfaces with superfast transfer rates of up to 5Gbps
Supports 6 SATA3 storage interfaces with superfast 6Gbps link speed and RAID 0,1,10
Integrated Display port/HDMI/Dual-link DVI/D-sub outputs for high resolution up to 2560x1600 Full HD playback
Supports Dolby Home Theater audio
Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature
Patented DualBIOS with Hybrid EFI technology for 3TB HDD support
Especificaciones

APU FM1 Socket:

AMD A series processors

Chipset

AMD A75 chipset


Memoria

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Arquitectura de memoria Dual Channel
Support for DDR3 1866/1600/1333/1066 MHz memory modules


Gráfica Integrada Integrated in the APU:

1 x DisplayPort, supporting a maximum resolution of 2560x1600
1 x DVI-D port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1200
1 x D-Sub port


Audio

Support for Dolby Home Theater
Support for S/PDIF Out
2/4/5.1/7.1-channel
Realtek ALC889 codec
High Definition Audio


LAN

1 x Realtek 8111E chip (10/100/1000 Mbit)


Zócalos de Expansión

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI


Multi Graphics Technology

Support for AMD Dual Graphics technology


Storage Interface Chipset:

1 x eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device
5 x SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 10, and JBOD


USB Chipset:

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)


IEEE 1394 VIA VT6308 chip:

Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)


Conectores Internos E/S

1 x APU fan header
1 x serial port header
1 x system fan header
1 x USB 3.0/2.0 header
1 x front panel audio header
1 x 24-pin ATX main power connector
5 x SATA 6Gb/s
1 x parallel port header
1 x front panel header
1 x clearing CMOS jumper
1 x IEEE 1394a
1 x conector para ventilador de la fuente de alimentación
1 x Trusted Platform Module (TPM) header
TPM function is optional due to different regional policy
1 x SPDIF out
1 x conector de alimentación ATX 12V de 4-pin
2 x USB 2.0/1.1

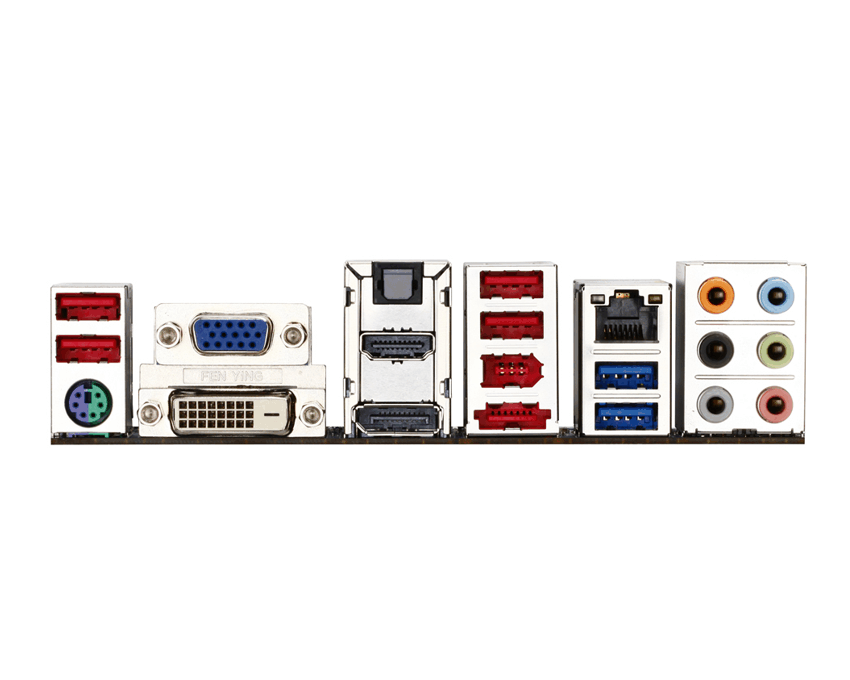

Panel E/S Trasero

1 x PS/2 keyboard/mouse port
1 x eSATA 6Gb/s
1 x DisplayPort
2 x USB 3.0/2.0
1 x DVI-D
1 x HDMI
1 x D-Sub
1 x Salida Óptica S/P-DIF
6 x jacks de audio (Line In / Line Out / MIC In / Surround (Traseros) / Central/Subwoofer / Laterales)
4 x USB 2.0/1.1
1 x RJ45 LAN


I/O Controller

iTE IT8720


Monitorización Hardware

APU/System fan speed control
APU/System fan fail warning
APU overheating warning
APU/System fan speed detection
APU/System temperature detection
Detección del voltaje del sistema


BIOS

2 x 32 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Soporta DualBIOS™


Otras Características

Supports @BIOS™
Support for EasyTune
Support for ON/OFF Charge
Auto Green
Smart Recovery
Support for Q-Share
Supports Q-Flash utility
Soporta Xpress BIOS Rescue
Xpress™ Recovery 2
Xpress™ Install
Download Center
Support for 3TB+ Unlock


Software Incluido

Norton Internet Security (versión OEM)


Sistema Operativo

Microsoft® Windows® 7/ Vista/ XP


Formato

Micro ATX, 244mm x 244mm
