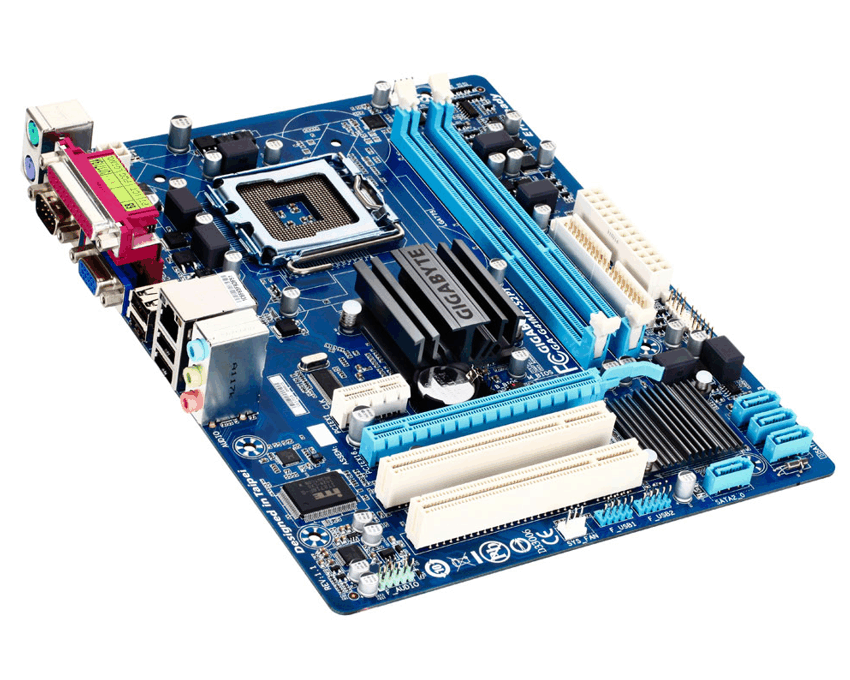

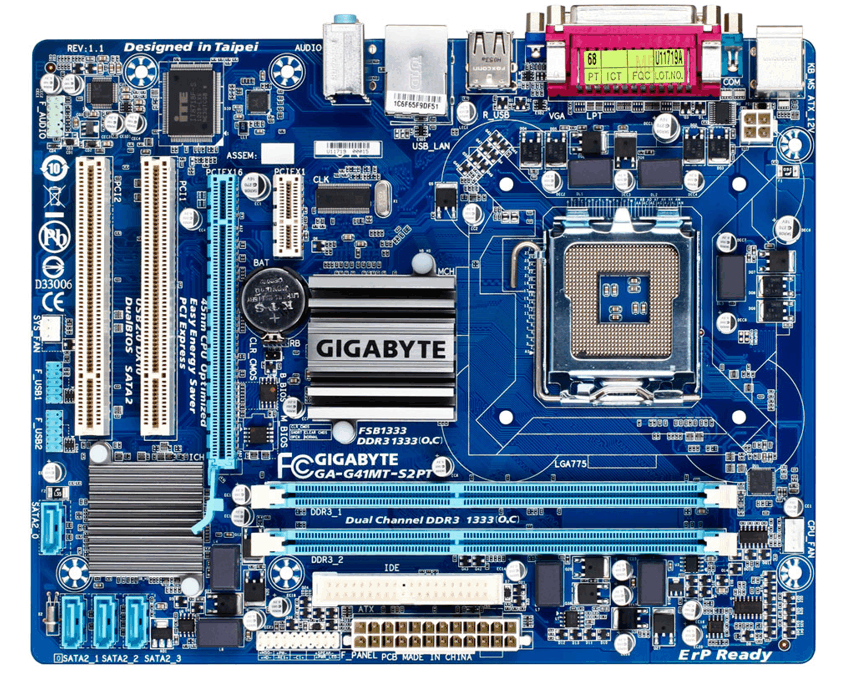

GIGABYTEPlaca Base Gigabyte G41MT-S2PT
DescatalogadoPrecio no disponible
Placa Base Gigabyte G41MT-S2PT
Socket : LGA 775 Chipset : Intel® G41 Formato : mATX Memoria : DDR3
Especificaciones
| Descripción de Producto |
| Producto | Gigabyte Placa Base G41MT-S2PT Intel 775 G41 2DDR3 |
| Descripción | PLACA GIGABYTE G41MT-S2PT,INTEL,775,G41,2DDR3,16GB,GBLAN,PUERTO PARALELO,MATX |
| Especificaciones | Procesador Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA 775 package. La caché de nivel 2 (L2) varía según la CPU Please refer "CPU Support List" for more information ChipsetNorth Bridge: Intel® G41 Express Chipset South Bridge: Intel® ICH7 Front Side Bus 1333/1066/800 MHz FSB Memoria 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory Arquitectura de memoria Dual Channel Support for DDR3 1333(OC)/1066/800 MHz memory modules * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Please refer "Memory Support List" for more information Gráfica Integrada Integrated in the North Bridge: 1 x D-Sub port Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel (To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver) LAN 1 x Realtek 8111E chip (10/100/1000 Mbit) Zócalos de Expansión 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 2 x PCI Storage Interface South Bridge: 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices USB South Bridge: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Conectores Internos E/S 2 x USB 2.0/1.1 headers 1 x front panel audio header 1 x 24-pin ATX main power connector 4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices 1 x front panel header 1 x CPU fan header 1 x clearing CMOS jumper 1 x cabeceras frontales de audio 1 x IDE 1 x conector de alimentación ATX 12V de 4-pin Panel E/S Trasero 1 x RJ-45 port 1 x D-Sub port 1 x parallel port 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x serial port 4 x USB 2.0/1.1 3 x jacks de audio (Line-in/Line-out/MIC) I/O Controller iTE IT8720/IT8718 chip Monitorización Hardware CPU fan speed control *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install. CPU/System fan speed detection Aviso de sobrecalentamiento de la CPU Detección del voltaje del sistema Advertencia de fallos en el ventilador de CPU/Sistema Detección de temperatura de la CPU BIOS Use of licensed AWARD BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b 2 x 8 Mbit flash ROM Soporta DualBIOS™ Otras Características Support for Xpress Recovery2 Supports @BIOS™ Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Q-Flash Support for ON/OFF Charge Smart Recovery Support for Q-Share Soporta Xpress BIOS Rescue Xpress™ Install Download Center Support for 3TB+ Unlock Support for Easy Energy Saver Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver. |
