APU
FM1 Socket:
1.AMD A series & E2 series processors
(Please refer "CPU Support List" for more information.)
Chipset
1.AMD A55 chipset
Memory
1.2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
2.Dual channel memory architecture
3.Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
(Please refer "Memory Support List" for more information.)

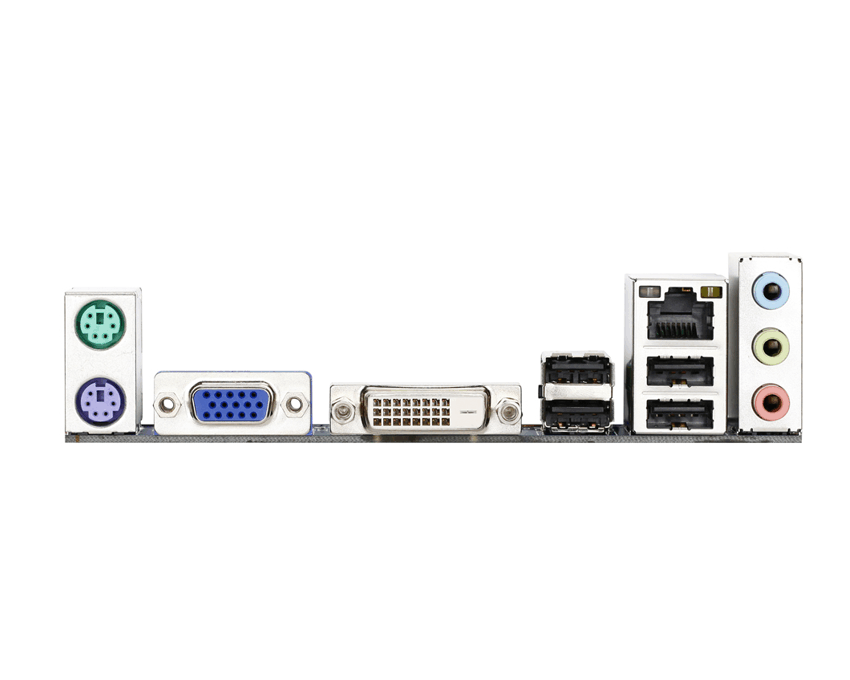

Onboard Graphics
APU:
1.1 x D-Sub port
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)
(All integrated graphics ports do not support Hot plug.
If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.)
Audio
1.Realtek ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel (Note 3)
4.Support for S/PDIF Out
LAN
1.1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.2 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
3.1 x PCI slot
