ASUSPlaca Base Asus M2N68 PLUS
DescatalogadoPrecio no disponible

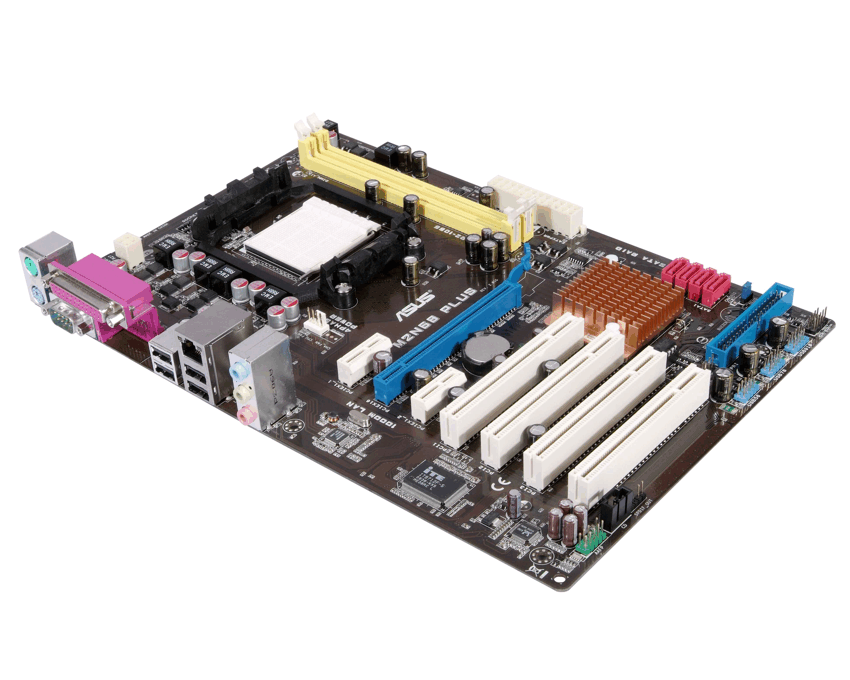

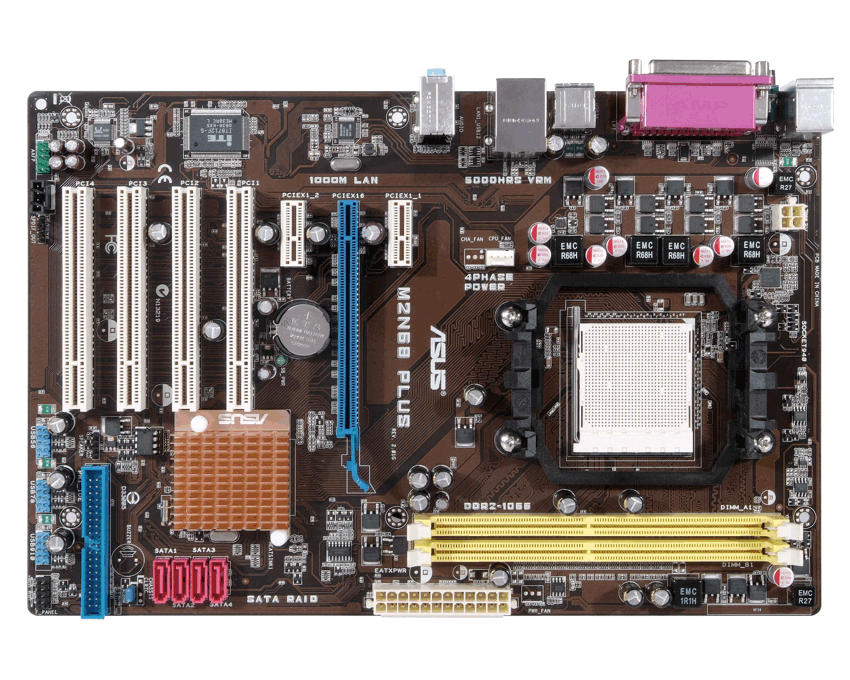

Asus Placa M2N68 PLUS
Socket : Socket AM3 Chipset : NVIDIA nForce 630a Formato : ATX Memoria : DDR2
Especificaciones
| Descripción de Producto |
| Producto | Asus Placa M2N68 PLUS |
| Descripción | Chipset NVIDIA nForce 630a * AM3 CPU Support * 5000hrs VRM Solid Capacitors * DDR2 1066 Memory * Gb LAN |
| Especificaciones | CPU AMD AM3/AM2+/AM2 ;Phenom™II /Athlon™II /Phenom™ / Athlon™ /Sempron™ Processors AMD Cool 'n' Quiet™ Technology * Due to the chipset limitation, the AM3/AM2+ CPU runs at HT1 (1000MHz). Chipset NVIDIA nForce 630a System Bus Up to 2000/1600 MT/s Memory 2 x DIMM, Max. 8 GB, DDR2 1066*/800/667 ECC,Non-ECC,Un-buffered Memory Dual Channel memory architecture * DDR2 1066 is supported by AM3/AM2+ CPU only ** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List). *** When you install a total memory of 4GB or more, Windows® 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows 32-bit operating system. Expansion Slots 1 x PCIe x16 1 x PCIe x1 4 x PCI 2.2 Storage Southbridge 1 xUltraDMA 133/100/66 4 xSATA 3 Gb/s ports NVIDIA MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives LAN Gb LAN Audio Realtek ALC662 6-Channel High-Definition Audio CODEC USB 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel) ASUS Unique Features ASUS Q-Fan ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS AI NET 2 ASUS MyLogo 2 Back Panel I/O Ports 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x LAN(RJ45) port 4 x USB 2.0/1.1 1 x COM port 6 -Channel Audio I/O 1 x Parallel Port Internal I/O Connectors 3 x USB connectors support additional 6 USB 2.0/1.1 ports 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector 1 x Speaker connector 1 x CD audio in connector 1 x High Definition Front panel audio connector 1 x S/PDIF Out connector 1 x 24-pin EATX Power connector 1 x System panel connector 1 x 4-pin ATX 12V Power connector BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI 2.0a, SM BIOS2.5 Accessories User's manual 1 x I/O Shield 1 x UltraDMA 133/100/66 cable 1 x SATA cable Form Factor ATX Form Factor 12 inch x 8 inch ( 30.5 cm x 20.3 cm ) |
Características validas salvo error tipográfico.
