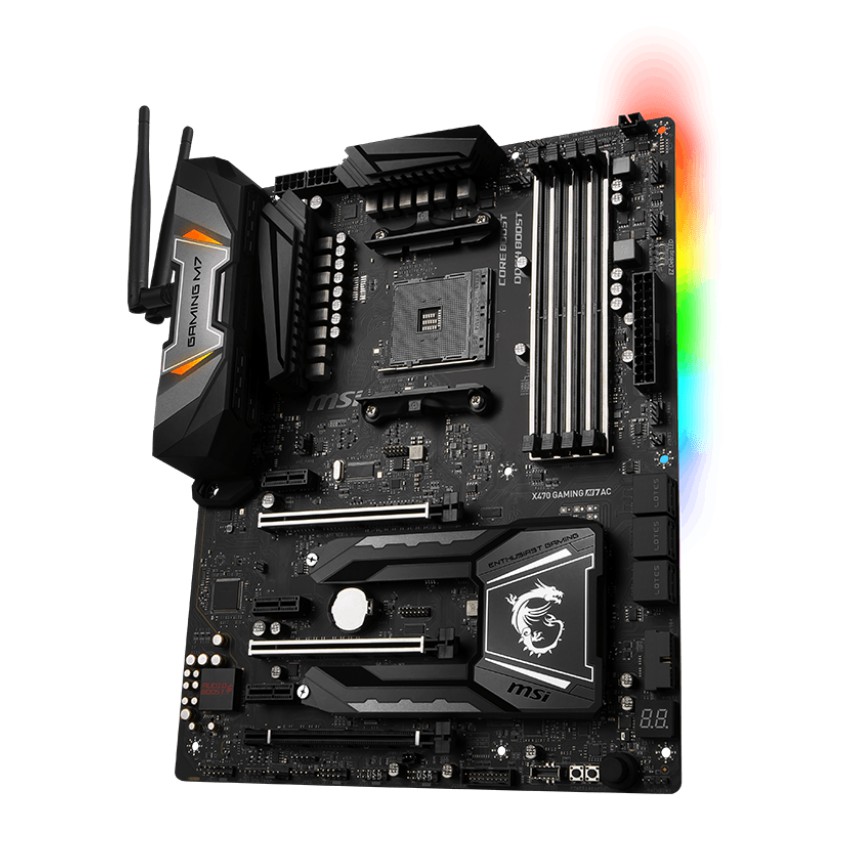

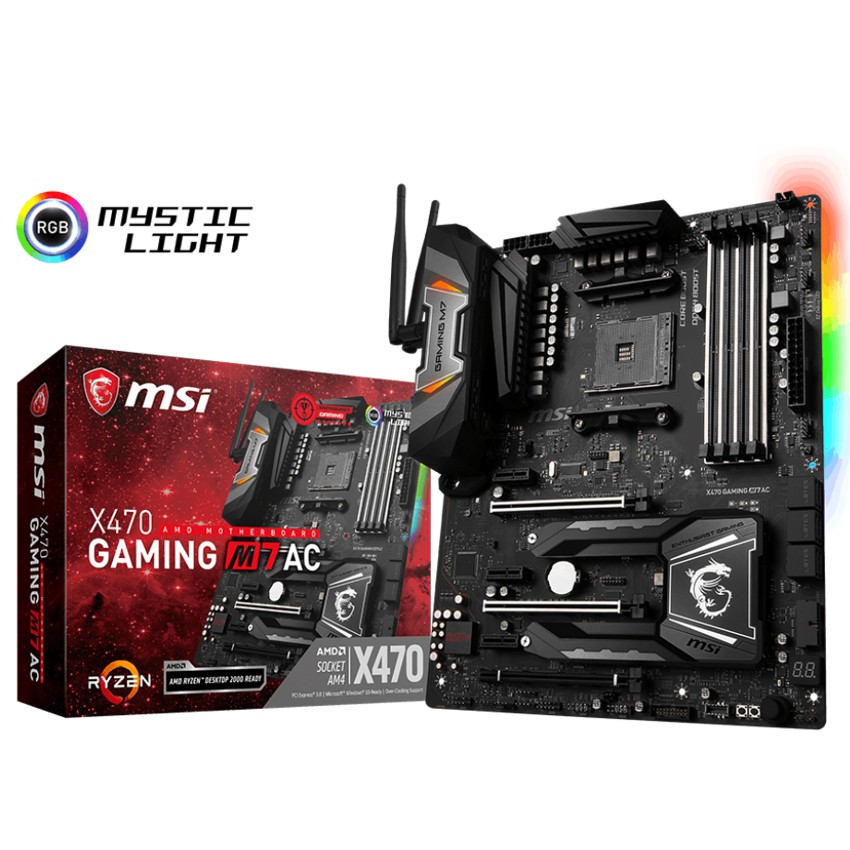

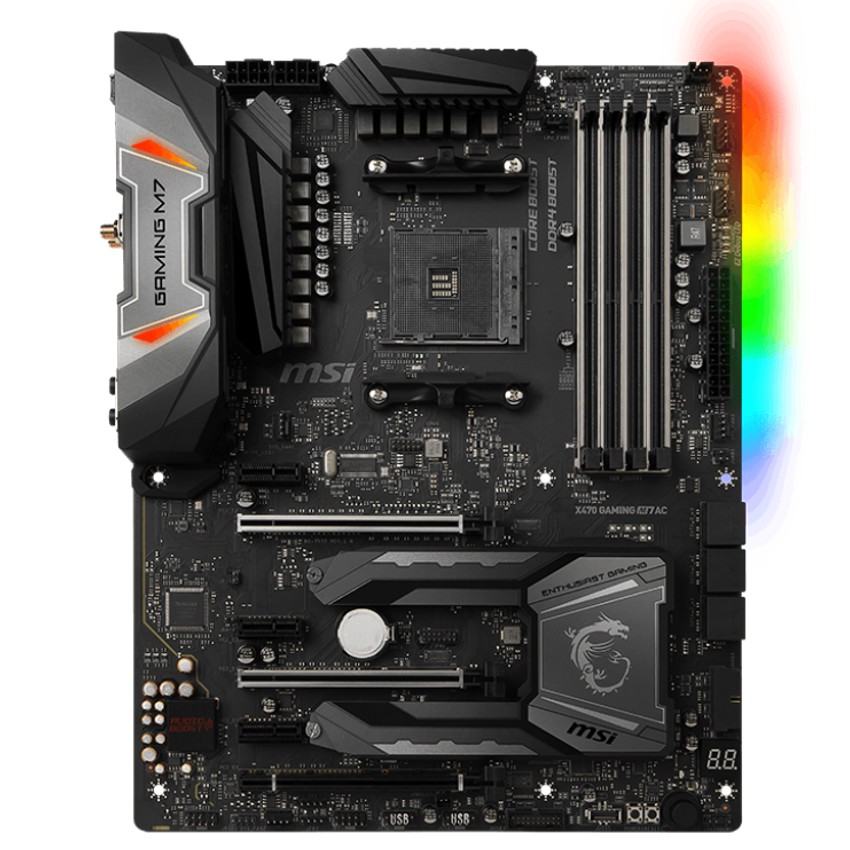

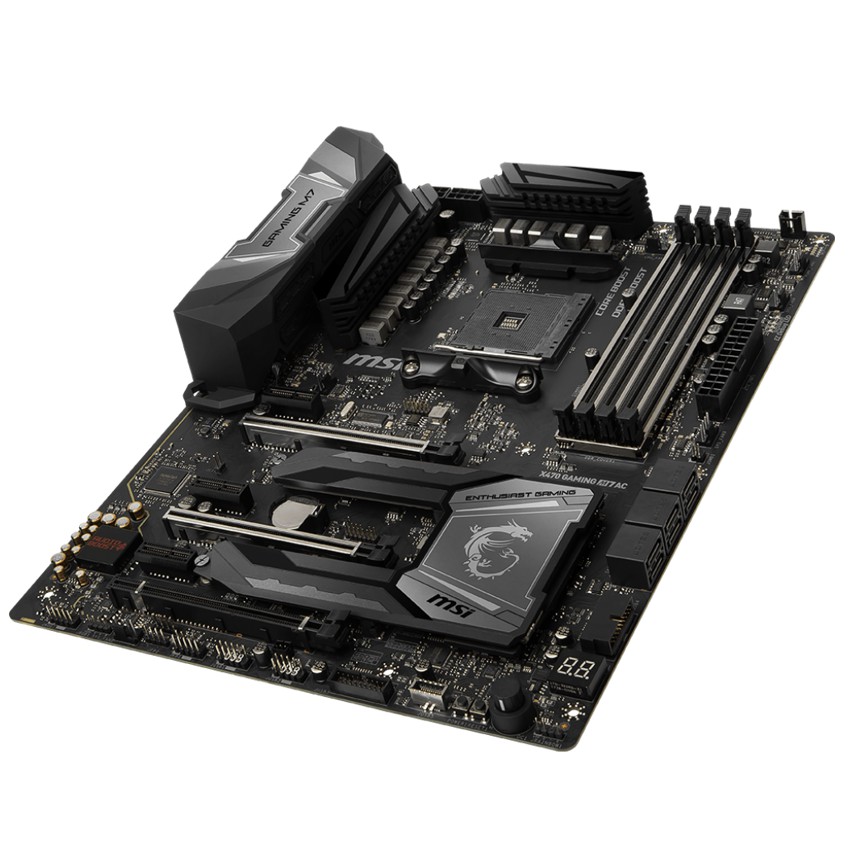

MSI X470 Gaming M7 AC

Descripción
Supports AMD® RYZENTM Desktop Processors and AMD® A-series / Athlon? Processors for socket AM4
Supports DDR4-3600+(OC) Memory
M.2 SHIELD FROZR: Strengthened built-in M.2 thermal solution.
Keeps M.2 safer and faster
DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost
CORE Boost: With premium layout and full digital power design to support more cores and provide better performance.
MYSTIC LIGHT: 16.8 million colors / 17 effects controlled in one click.
MYSTIC LIGHT EXTENSION: supports both RGB and RAINBOW LED strip.
Dual 8 Pin power supply: By providing dual 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.
Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
Turbo M.2 with M.2 Shield FROZR.
Killer LAN : Get ready for the lowest latency with Killers exclusive network management to prioritize game traffic over any other network traffic.
BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card
MULTI-GPU: With Steel Armor PCI-E slots.
Supports NVIDIA SLI? & AMD Crossfire?
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Voice Boost.
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
WHQL certified for Windows 10



Especificaciones
SOCKET: AM4
CPU (MAX SUPPORT): RYZEN 7
CHIPSET: AMD® X470 Chipset
DDR4 MEMORY: 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)/ 3600+ Mhz
MEMORY CHANNEL: Dual
DIMM SLOTS: 4
MAX MEMORY (GB): 64
PCI-EX16: 2
PCI-E GEN: Gen3(16,0) (8,8), Gen2(4)
PCI-EX1: 3
SATAIII: 6
M.2 SLOT: 2
RAID: 0/1/10
TPM (HEADER): 1
LAN: 1x Killer E2500 Gigabit LAN controller
USB 3.1 PORTS (FRONT): 1(Gen2, Type C), 4(Gen1, Type A)

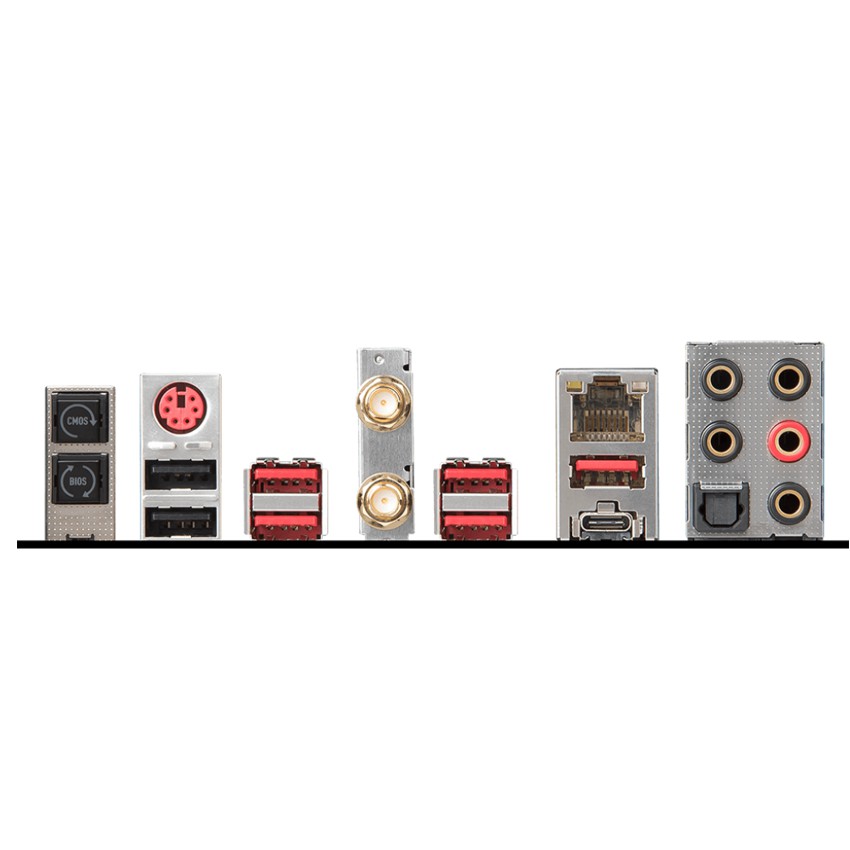

USB 3.1 PORTS (REAR): 1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 2
AUDIO PORTS (REAR): Realtek® ALC1220 Codec
DIRECTX: 12
FORM FACTOR: ATX
SLI: Y
