Asrock Placa P4i945GC



Cod. Producto: A-511
Familia: Componentes
Sección: Placas Base
Categoría: Placas Base
Fabricante: ASROCK
Part Number:
Garantía: 2 Años
Disponibilidad: 0 Unidades
Entrega en el Día
ver condiciones
Envio: Gratis

Descatalogado
Descripción de Producto

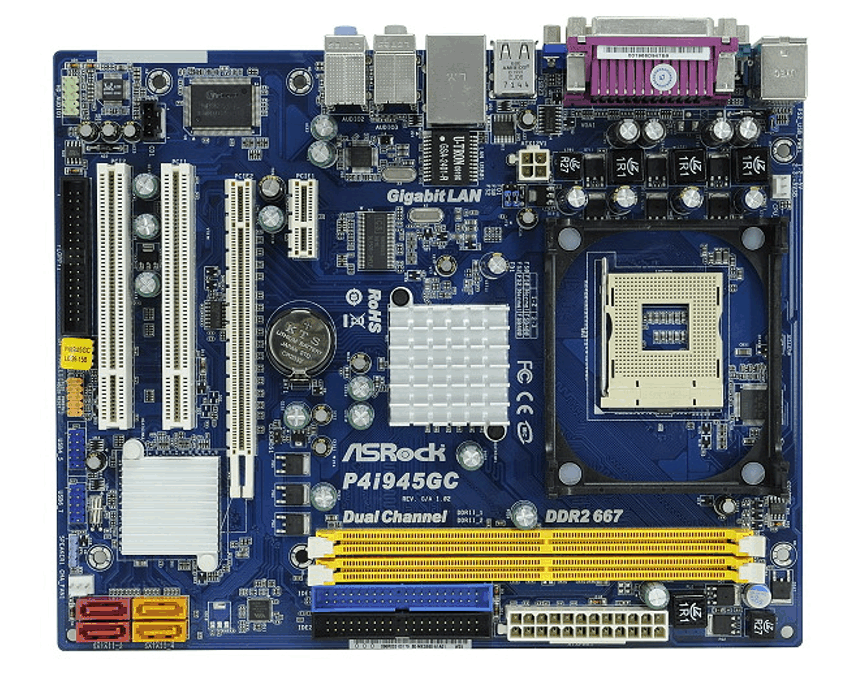

Producto AsRock Placa P4i945GC
Descripción Socket 478 / Intel® 945GC + ICH7
1. Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood) processors
2. Intel® 945GC + ICH7 Chipsets
Especificaciones General
CPU
- Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood) processors
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
Chipset
- Northbridge: Intel® 945GC
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533/400 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS

Audio, Video and Networking
Graphics
- Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN

Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector by Intel® ICH7 (supports 2 x IDE devices)
- 1 x ATA133 IDE connector by VIA® VT6415 (supports 2 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
ASRock 8CH I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Unique Feature
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- ATA Cable (optional)
- 1 x SATA Data Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cm
OS
- Microsoft® Windows® 7 / Vista™ / XP / 2000 compliant
Certifications
- FCC, CE, WHQL
