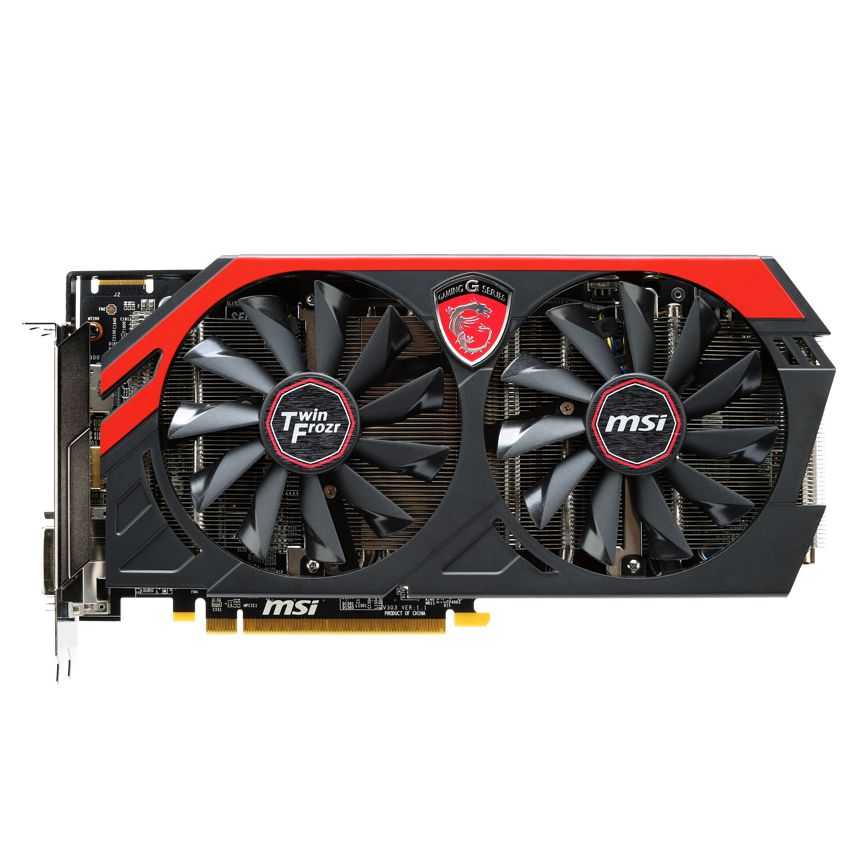

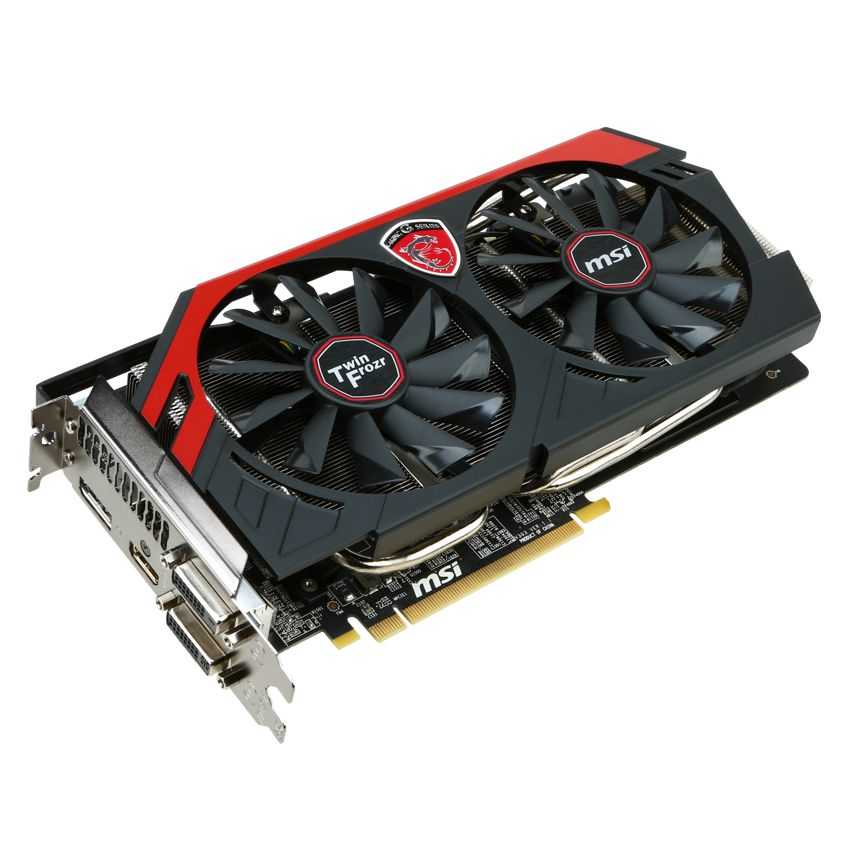

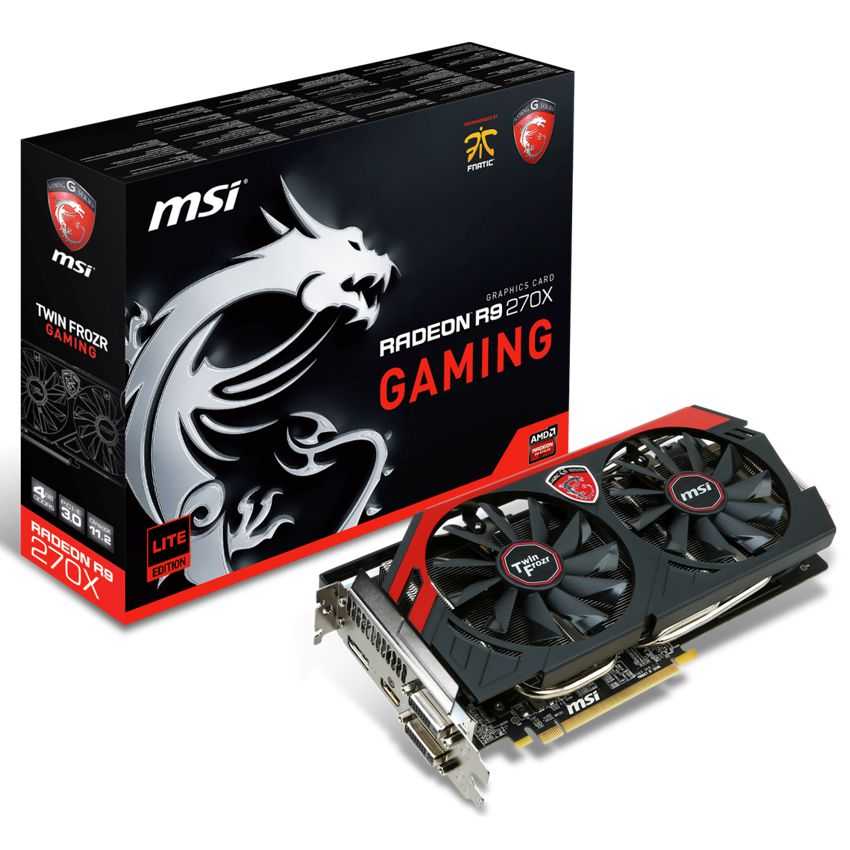

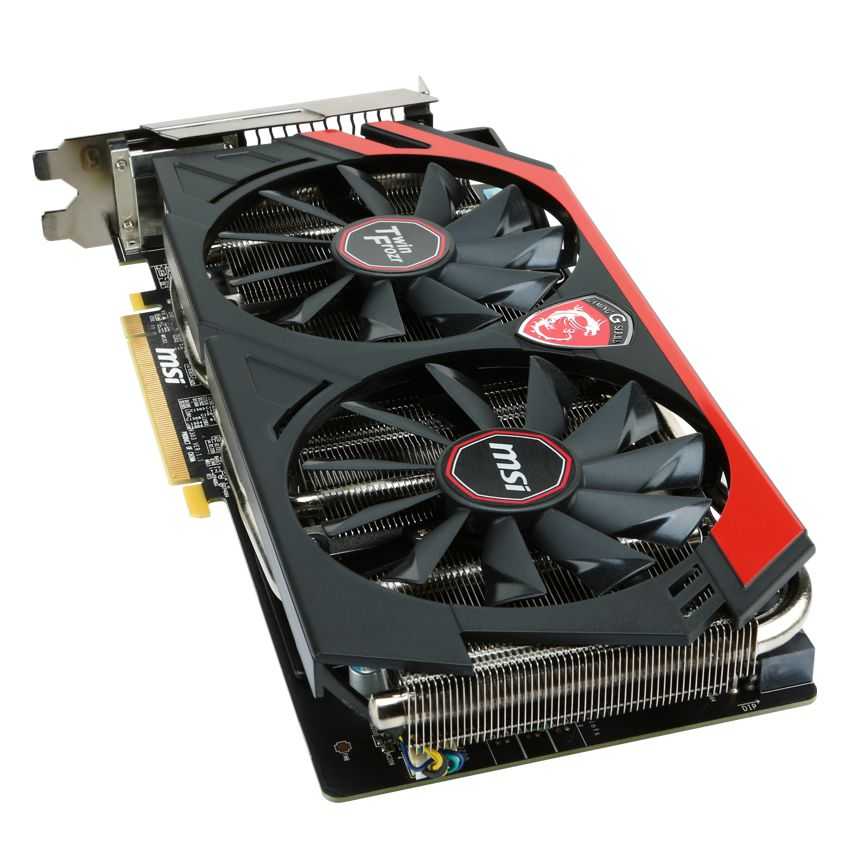

Graphics Processing Unit AMD Radeon? R9 270X
Interface PCI Express x16 3.0
Core Clock Speed (MHz):
- 1010MHz Core (Boost Clock:1070MHz) (OC mode)
- 1010MHz Core (Boost Clock:1060MHz) (Gaming mode)
- 1010MHz Core (Boost Clock:1050MHz) (Silent mode)
Memory Size (MB) 4096
Memory Type GDDR5
Memory Interface 256 bits
Memory Clock Speed (MHz) 5600
Memory Bandwidth (GB/sec) 179.2

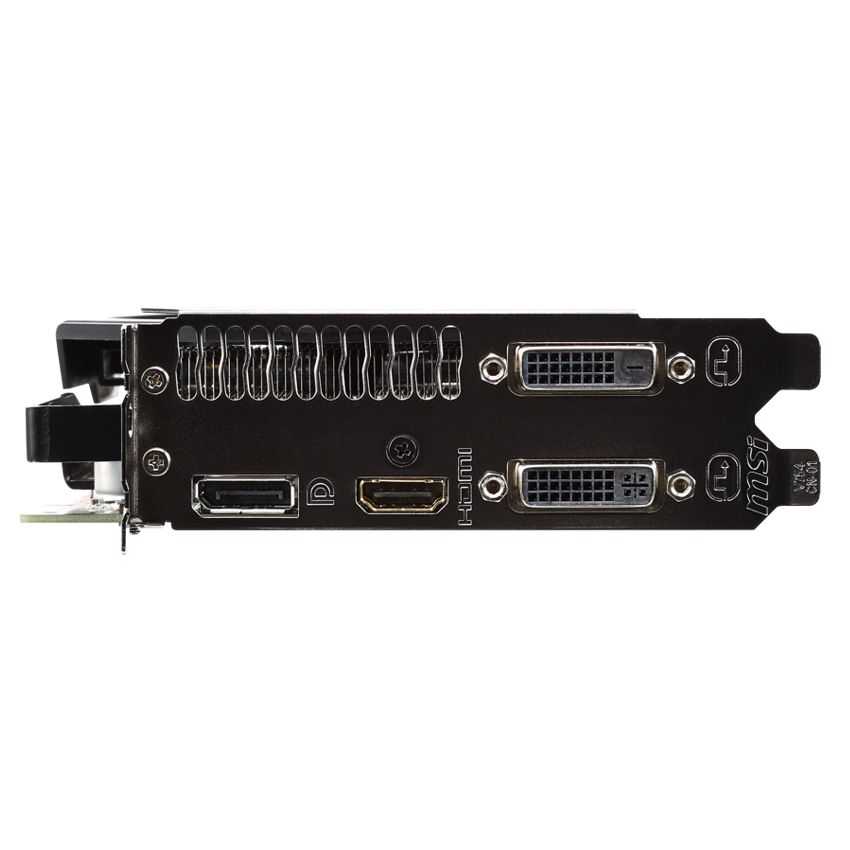

DVI Connectors DL-DVI-Ix1, DL-DVI-Dx1
Max Resolution: 2560 x 1600 @60 Hz
HDMI Connectors:
- 1 (version 1.4a)
- Max Resolution: 3840x2160 @30 Hz-30bpp
- 4096x2160 @24 Hz-24bpp
DisplayPort 1 (version 1.2)
Max Resolution: 4096x2160 @ 50 Hz
Maximum Displays Up to 6 displays with the use of a DP MST Hub
HDCP Support Y
RAMDAC speed (MHz) 400
DirectX Version Support 11.2 API (feature 11_0)
OpenGL Version Support 4.3
Multi-GPU Technology CrossFire, 2-ways
Card Dimension(mm) 260x129x38mm
Card Weight (g) 757
Power consumption (W) 161
Recommended PSU (W) 500
Power Connectors 2x6-Pin
Accessories DVI to D-Sub Dongle
