Descripción
Supports New Intel® Core™ i7 processors Extreme Edition in LGA 2011-3 socket
Supports Quad Channel DDR4-3333(OC) Memory
USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection.
Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s
SATA Express + USB 3.1 + SATA 6Gb/s
Multi-GPU: NVIDIA Quad SLI & AMD Quad CrossFire Support
OC Engine: For More Flexible BCLK Adjustments
OC Certified: Military Class Burn-in Test Passed
Enhanced Thermal Design
Easy to Disable the VGA Card
Guard-Pro: Improved Protection and Power Efficiency
Military Class 4: Top Quality & Stability
OC Essentials: Convenient Set Of Overclocking Tools While Breaking World Records
Intel® Gigabit LAN: Always connected with Intel® Gigabit LAN networking
OC Genie 4: Overclock in 1 Second
Click BIOS 4: Easily Fine-tune Your System
Especificaciones
CPU
• Supports New Intel® Core™ Processors for the Socket LGA2011-3
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® X99 Express Chipset
Main Memory
• Support eight DDR4 DIMMs 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333*(OC) DRAM (128GB Max)
- Supports Quad-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Slots
• 4x PCIe 3.0 x16 slots (PCI_E1,3,5,6), support up to 3-way mode
- 1-way mode: x16/ x0/ x0/ x0
- 2-way mode: x16/ x16/ x0/ x0*, 16/ x8/ x0/ x0**
- 3-way mode: x16/ x16/ x0/ x8*, x8/ x8/ x8/ x0**
• 2x PCIe 2.0 x1 slots (PCI_E2,4)
* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes
On-Board SATA
• Intel X99 Express Chipset
• 10x SATA 6Gb/s ports (2x ports reserved for SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 ports only support IDE mode and AHCI mode.
- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)
• 1x SATA Express port*
• 1x M.2 port, supports M.2 SATA 6Gb/s module* or M.2 PCIe module up to 32Gb/s speed**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10.
* The SATA Express port/ SATA5~6 ports will be unavailable when installing the M.2 SATA interface module in the M.2 port.
** Intel RST does not support PCIe M.2 SSD with Legacy ROM.
USB
• Intel X99 Express Chipset
- 6 x USB 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors**)
• VIA VIA805 Chipset
- 4 x USB 3.0 ports on the back panel
• ASMedia ASM1142 Chipset
- 2 x USB 3.1 ports on the back panel
*Internal JUSB1 connector supports MSI Super Charger.
Audio
• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
• 1x Intel I210-AT Gigabit LAN controller
Multi-GPU
• Supports 3-Way AMD CrossFire™ Technology*
• Supports 3-Way NVIDIA® SLI™ Technology
*Supports Windows 7 and Windows 8/8.1.
Internal I/O Connectors
- 1 x 24-pin ATX power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 10 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.0 connector (supports additional 4 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x GO2BIOS button
- 1 x Power button
- 1 x Reset button
- 2 x Base Clock control buttons
- 1 x OC Genie button
- 1 x Multi-BIOS switch
- 1 x OC Genie mode switch
- 1x Slow mode booting switch
- 1x Slow mode booting jumper
- 1 x 2-Digit Debug Code LED

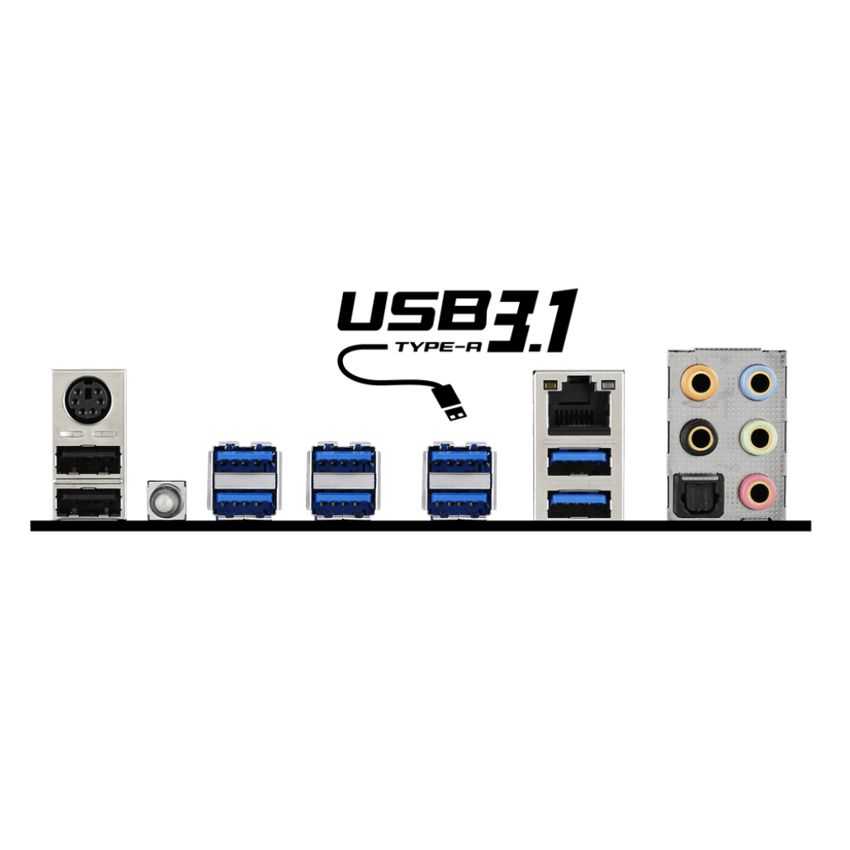

Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo port
- 1 x Clear CMOS button
- 1 x Optical S/PDIF-out port
- 2 x USB 2.0 ports
- 6 x USB 3.0 ports
- 2 x USB 3.1 ports
- 1 x RJ45 LAN jack
- 1 x 5 in 1 OFC audio jack
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.48cm(L) x 24.38cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
