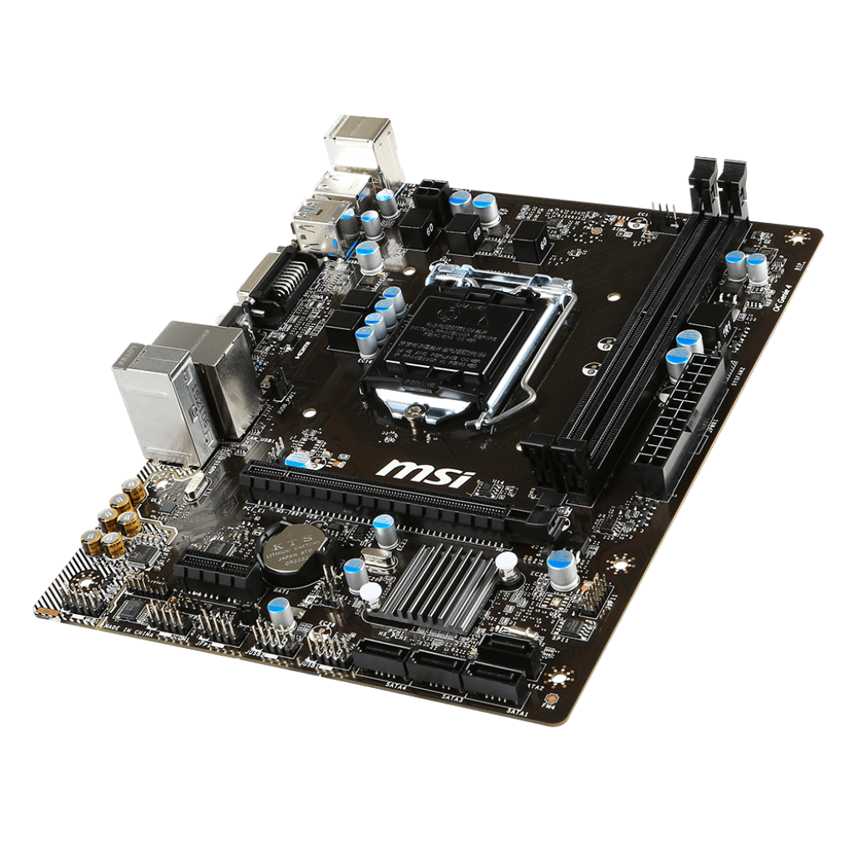

MSI H81M-P33 PLUS

Descripción
Soporta procesadores 4th generación Intel® Core?/Pentium®/Celeron® para socket LGA 1150
Soporta memoria DDR3-1600
2x USB 3.1 Gen1 + SATA 6Gb/s
Military Class 4: Componentes de calidad y estabilidad superior
Military Class Essentials: Protección total para las placas base
OC Genie 4: Overclocking en 1 segundo
Click BIOS 4: Ajusta facilmente el sistema
Command Center: Controla y personaliza la configuración del PC
Fast Boot: Quickly Boot Up & Enter OS en pocos segundos
M-Flash: Actualización de BIOS sencilla
Live Update 6: Actualice fácilmente la última BIOS y todos los controladores



Especificaciones
CPU: 4th Generation Intel® Core? i7 / Core? i5 / Core? i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset: Intel® H81 Express Chipset
Main Memory
- 2x DDR3 memory slots supporting up to 16GB
- Supports DDR3 1600/ 1333/ 1066 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
Slots
- 1 x PCIe 2.0 x16 slot
- 1 x PCIe 2.0 x1 slot
Onboard Graphics
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @ 60Hz, 24bpp
- 1 x VGA port, supporting a maximum resolution of 1920x1200 @ 60Hz, 24bpp
On-Board SATA
- Intel® H81 Express Chipset
   - 2 x SATA 6Gb/s ports (SATA1~2)
   - 2 x SATA 3Gb/s ports (SATA3~4)
   - Supports Intel Smart Connect Technology (optional)*
USB
- Intel® H81 Chipset
   - 2 x USB 3.1 Gen1 ports on the back panel
   - 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
Audio: Realtek® ALC887 Codec
LAN: 1 x Realtek RTL8111G Gigabit LAN controller
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 2 x USB power jumpers
Dimension: 8.9 in.
x 6.8 in.
(22.6 cm x 17.3 cm) Micro-ATX Form Factor
Mounting: 6 mounting holes
