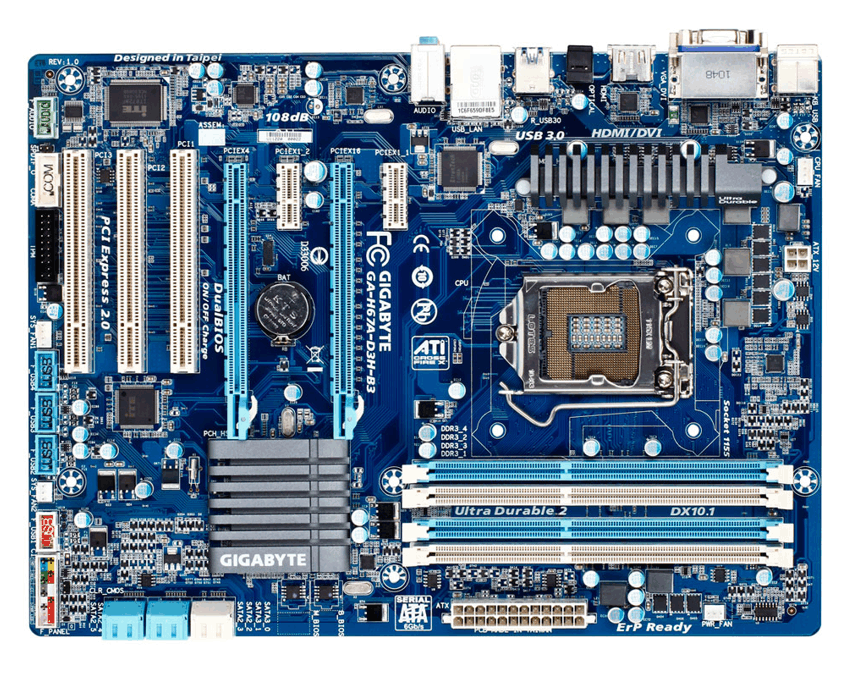

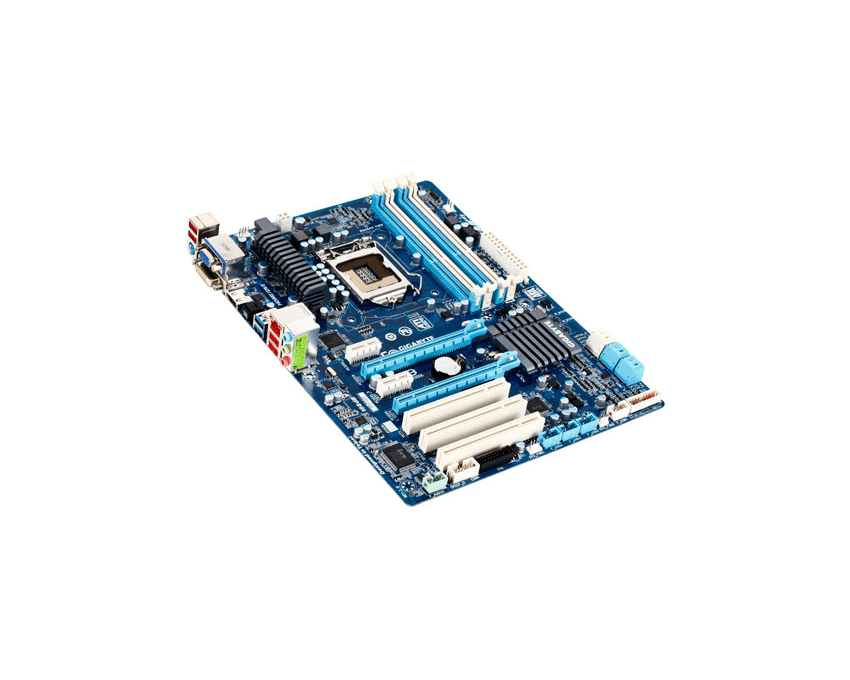

Placa Base Gigabyte H67A-D3H-B3
Cod. Producto: A-3921  ||  Fabricante: GIGABYTE
Part Number:   Stock: 0 Unidades
Entrega en el Día
ver condiciones
Envio: Gratis

Descatalogado

Producto Placa Gigabyte H67A-D3H-B3 INTEL 1155 H67

Descripción

Especificaciones Procesador
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel® H67 Express

Memoria
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Arquitectura de memoria Dual Channel
DDR3 1333/1066/800 MHz
Support for non-ECC memory modules
Go to GIGABYTE's website for the latest supported memory speeds and memory modules.
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Gráfica Integrada
Integrated in the Chipset:
1 x HDMI port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
1 x D-Sub port
* The DVI-D port does not support D-Sub connection by adapter.

Audio
Support for S/PDIF Out
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel (To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver)

LAN
1 x RTL8111E chip (10/100/1000 Mbit)

Zócalos de Expansión
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1
3 x PCI
(All PCI Express slots conform to the PCI Express 2.0 standard.)

Multi Graphics Technology
Support for ATI CrossFireX™ technology

Storage Interface
Chipset:
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

USB
Chipset:
Up to 12 USB 2.0/1.1 ports (4 ports on the back panel, 8 ports available through the internal USB headers)

Conectores Internos E/S
4 x SATA 3Gb/s connectors
1 x front panel audio header
1 x 24-pin ATX main power connector
2 x SATA 6Gb/s
1 x front panel header
1 x CPU fan header
1 x clearing CMOS jumper
1 x serial port
2 x cabeceras para ventilador del sistema
4 x USB 2.0/1.1
1 x conector para ventilador de la fuente de alimentación
1 x Trusted Platform Module (TPM) header
TPM function is optional due to different regional policy
1 x SPDIF out
1 x conector de alimentación ATX 12V de 4-pin

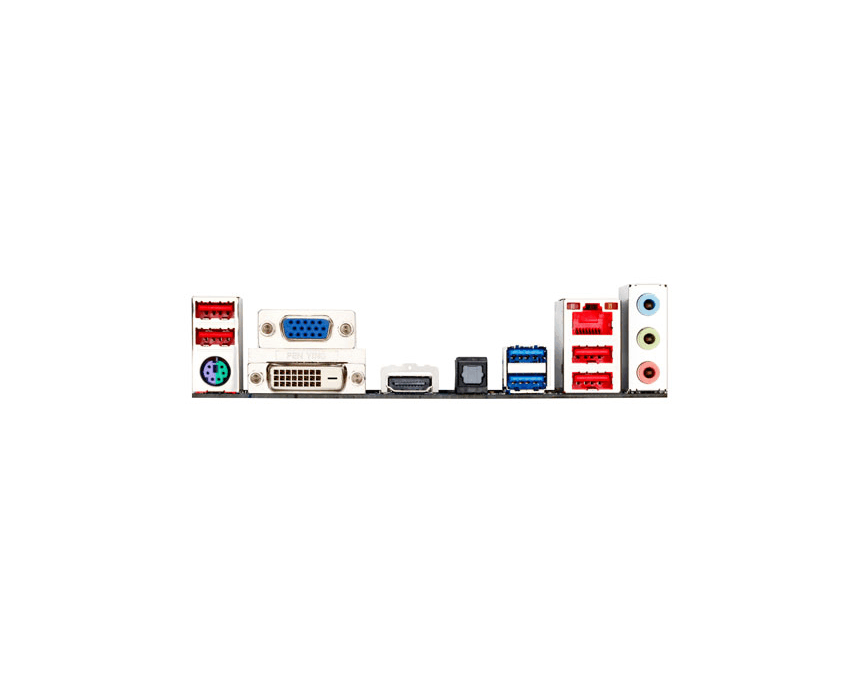

Panel E/S Trasero
1 x PS/2 keyboard/mouse port
2 x USB 3.0/2.0
1 x DVI-D
1 x HDMI
1 x D-Sub
1 x Salida Óptica S/P-DIF
4 x USB 2.0/1.1
3 x jacks de audio (Line-in/Line-out/MIC)
1 x RJ45 LAN

I/O Controller
iTE IT8728

Aviso de fallo en el ventilador de CPU/Sistema/Alimentación
Detección de la velocidad del ventilador de CPU/Sistema/Alimentación
Aviso de sobrecalentamiento de la CPU
Detección del voltaje del sistema
Detección de la temperatura de CPU/Sistema

BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Soporta DualBIOS™

Otras Características
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Cloud OC
Support for ON/OFF Charge
eXtreme Hard Drive
Auto Green
Support for Smart 6™
Support for Q-Share
Soporta Xpress BIOS Rescue
@BIOS™
Xpress™ Recovery 2
Xpress™ Install
Download Center
Q-Flash™

Software Incluido
Norton Internet Security (versión OEM)

Sistema Operativo
Support for Microsoft® Windows 7/Vista/XP

Formato
ATX Form Factor; 305mm x 225mm
