Estás en

Componentes

  >

Placas Base

Placa Base Gigabyte GA-A75-D3H

Placa-Base-Gigabyte-GA-A75-D3H-foto1Placa-Base-Gigabyte-GA-A75-D3H-foto2Placa-Base-Gigabyte-GA-A75-D3H-foto3Placa-Base-Gigabyte-GA-A75-D3H-foto4
Cod. Producto: A-3924  ||  Fabricante: GIGABYTE
Part Number:
Stock: 0 Unidades
Entrega en el Día
ver condiciones
Envio: Gratis

Descatalogado

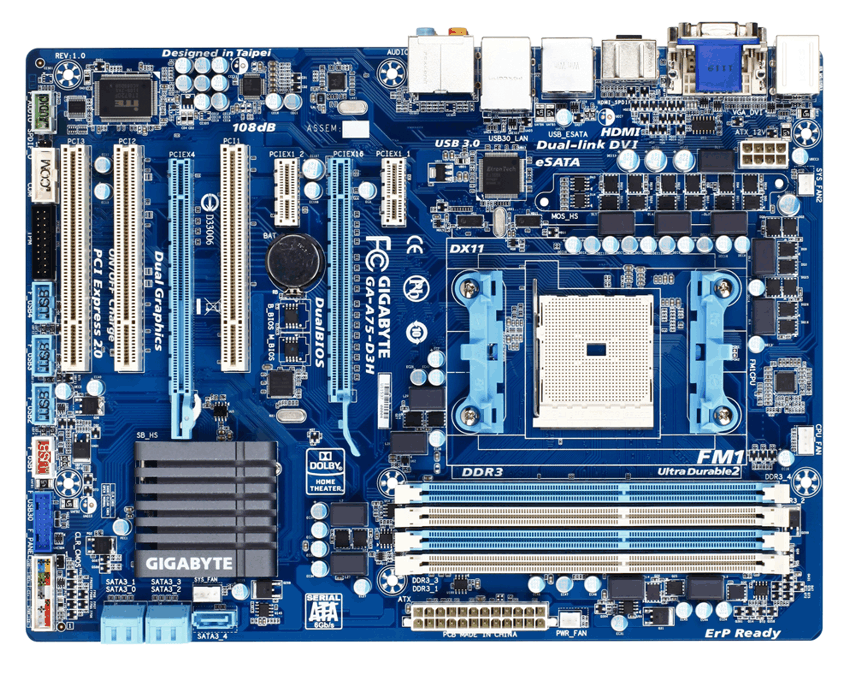

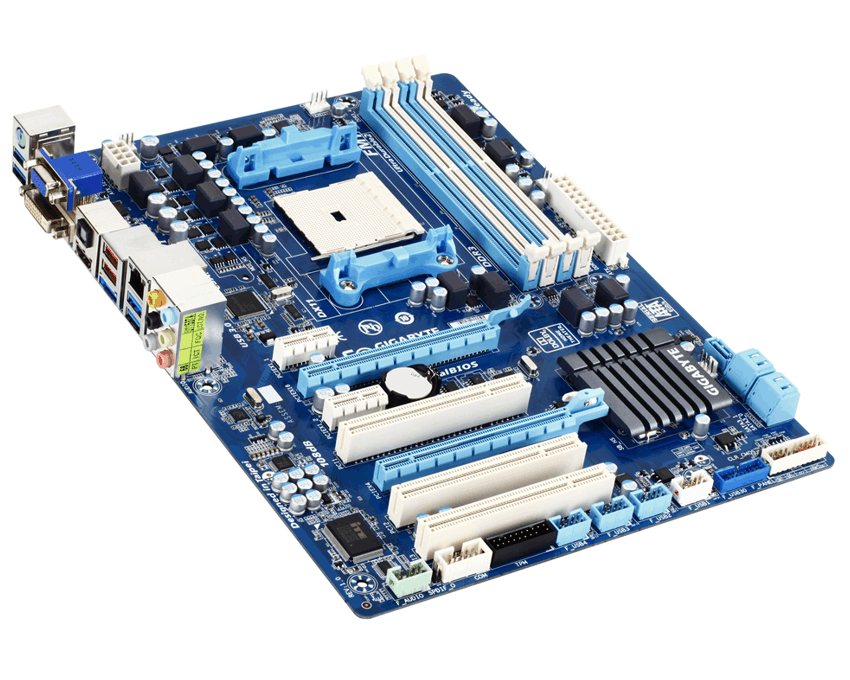

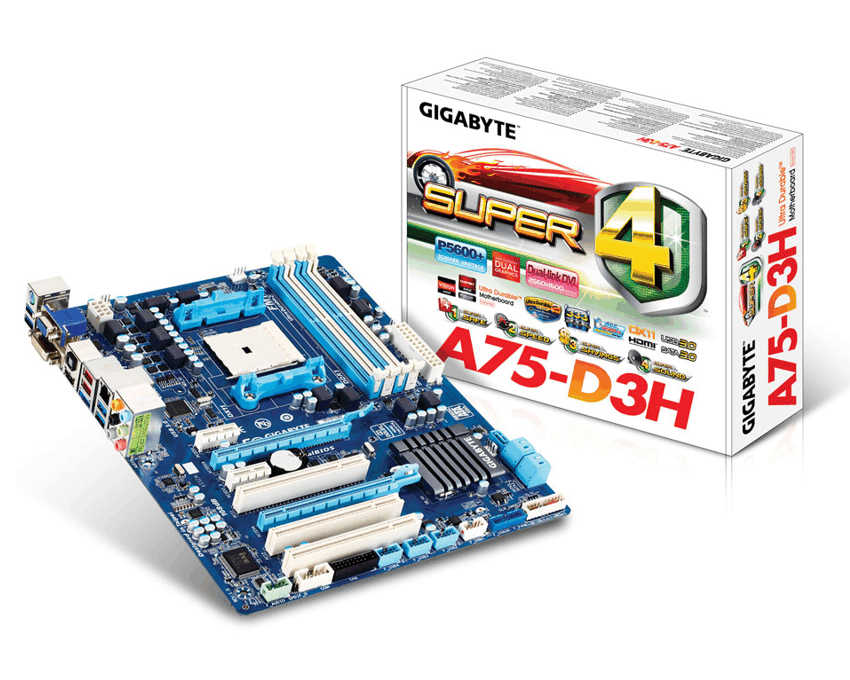

Producto Gigabyte Placa Base AMD GA-A75-D3H
Descripción Gigabyte GA-A75-D3H
Supports Socket FM1 of 32nm AMD A-series/E2-series processors
Enhanced AMD Radeon HD 65xx/64xx/63xx graphics (DX11) integrated with the processor
2 PCI-E 2.0 interfaces with AMD Dual Graphics and CrossFireX technology support
Ultra Durable 2 Classic Technology with 4+1 phase power VRM designed
Supports 6 USB 3.0 interfaces with superfast transfer rates of up to 5Gbps
Supports 6 SATA3 storage interfaces with superfast 6Gbps link speed and RAID 0,1,10
GIGABYTE 3x USB Power with On/Off Charge USB ports
Integrated HDMI/Dual-link DVI/D-sub outputs for high resolution up to 2560x1600 Full HD playback
Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
Patented DualBIOS with Hybrid EFI technology for 3TB HDD support
Supports Dolby Home Theater audio
Especificaciones APUFM1 Socket:

AMD A series & E2 series processors

Chipset: AMD A75 chipset

Memory

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1866/1600/1333/1066 MHz memory modules (Note 2)

(Please refer "Memory Support List" for more information.)
Onboard GraphicsAPU:

1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 2560x1600 (Note 3) (Note 4)
1 x HDMI port, supporting a maximum resolution of 1920x1200

(All integrated graphics ports do not support Hot plug.
If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.)
Audio

Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater
Support for S/PDIF Out

LAN

1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
3 x PCI slots

Multi-Graphics Technology

Support for AMD Dual Graphics technology
Only A series APU support AMD Dual Graphics.
Support for AMD CrossFireX technology

Storage InterfaceChipset:

5 x SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices
1 x eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device (Note 6)
Support for RAID 0, RAID 1, RAID 10, and JBOD

USBChipset:

Up to 10 USB 2.0/1.1 ports (2 ports on the back panel, 8 ports available through the internal USB headers)
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Etron EJ168 chips:

Up to 2 USB 3.0/2.0 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
5 x SATA 6Gb/s connectors
1 x APU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
4 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x clearing CMOS jumper

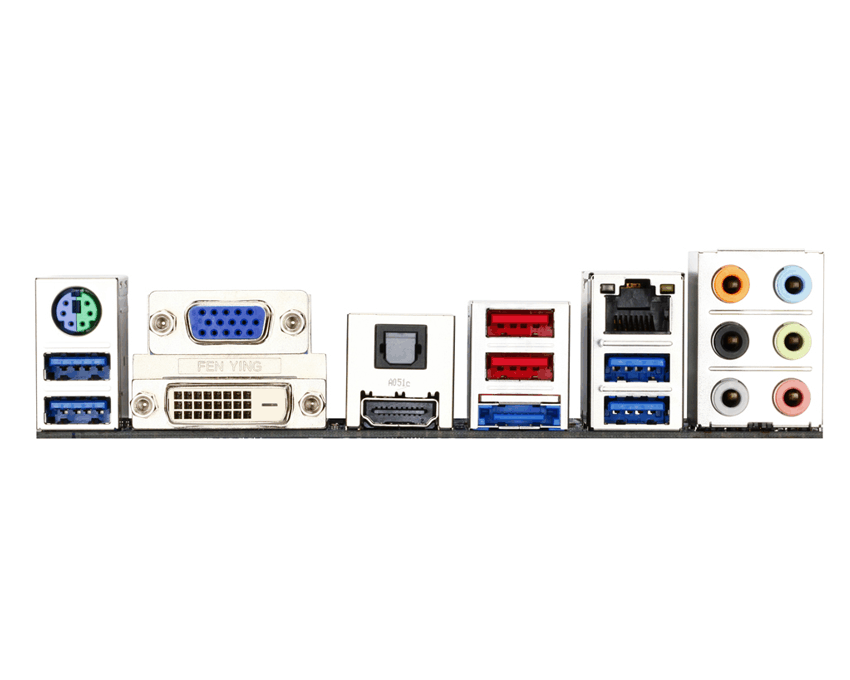

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x optical S/PDIF Out connector
2 x USB 2.0/1.1 ports
4 x USB 3.0/2.0 ports
1 x eSATA 6Gb/s port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

iTE IT8720 chip

H/W Monitoring

System voltage detection
APU/System temperature detection
APU/System/Power fan speed detection
APU overheating warning
APU/System/Power fan fail warning
APU/System fan speed control (Note 7)

BIOS

2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 8)
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share

Bundle Software

Norton Internet Security (OEM version)

Operating System

Support for Microsoft® Windows 7/Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 22.5cm
