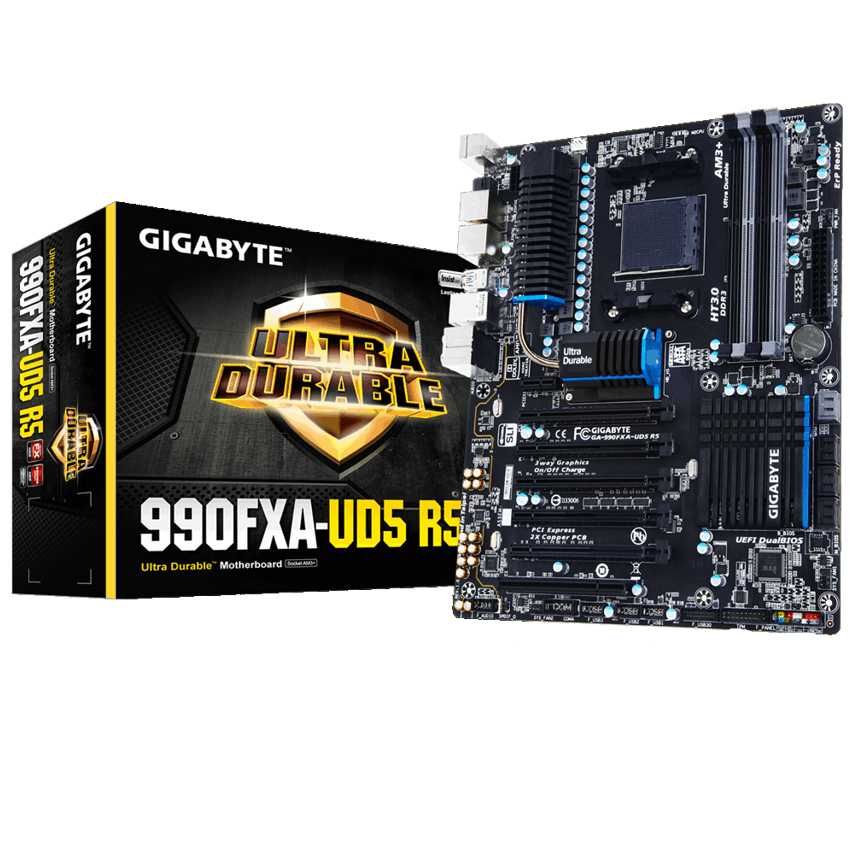

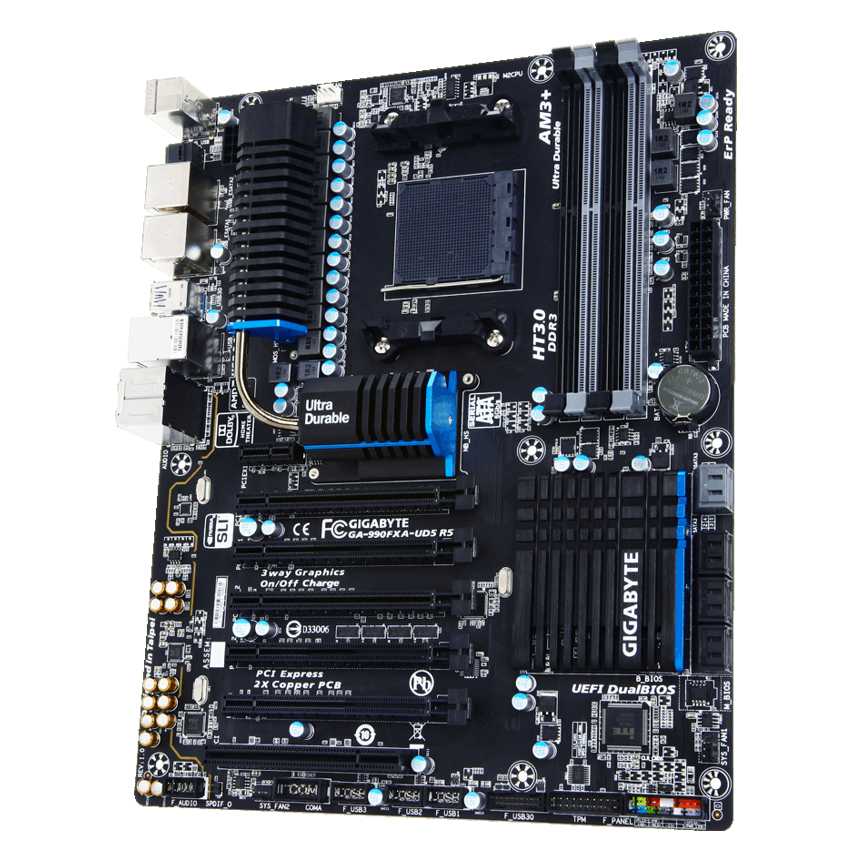

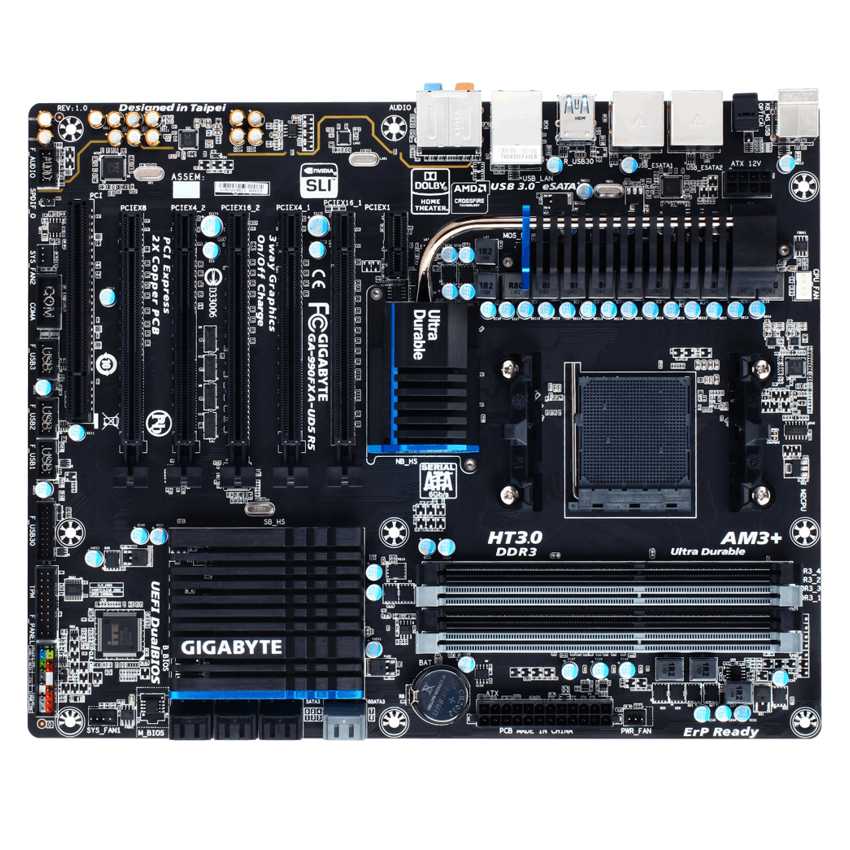

Gigabyte 990FXA-UD5 R5

Descripción
Soporta los procesadores serie AM3+ / AM3
Diseño de energía con 8+2 fases para el VRM del CPU para procesadores AMD de alto TDP
Soporte para 3-Way CrossFire y 3-Way SLI
Diseño de MOSFETD de alta calidad para un rendimiento de alta eficiencia
Tecnología Ultra Durable?4 de GIGABYTE
Protección contra el ruido con capacitores de audio con características de Alta Calidad
Soporta Dolby Home Theater
8 puertos SATA3 y 2 puertos eSATA3 para transferencias de hasta 6Gbps de velocidad y soporte RAID
4 puertos USB 3.0 con transferencias de hasta 5Gbps
Tecnología On/Off Charge de GIGABYTE
Tecnología UEFI DualBIOS? de GIGABYTE

Especificaciones
Procesador: AM3+ Socket:
- AMD AM3+ FX processors
- AMD AM3 Phenom? II processors/ AMD Athlon? II processors
Bus Hyper Transport: 5200 MT/s
Chipset:
- North Bridge: AMD 990FX
- South Bridge: AMD SB950
Memoria:
- 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
- Dual channel memory architecture
- Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Audio:
- Realtek® ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby® Home Theater
- Support for S/PDIF Out
LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
Puertos de Expansión:
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
- 1 x PCI Express x1 slot
- 1 x PCI slot
Tecnología Multi-Gráficos: Support for 2-Way/3-Way AMD CrossFire?/NVIDIA® SLI? technology
Interfaz de Almacenamiento:
- South Bridge:
   - 6 x SATA 6Gb/s connectors (SATA3 0~SATA3 5)
   - Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
- 2 x Marvell® 88SE9172 chips:
   - 2 x SATA 6Gb/s connectors (GSATA3 6/7)
   - 2 x eSATA 6Gb/s connectors on the back panel
   - Support for RAID 0 and RAID 1
USB:
- South Bridge:
   - 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
- VIA® VL805 chip:
   - 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos de E/S:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 8 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 2 x system fan headers
- 1 x power fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 3 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header

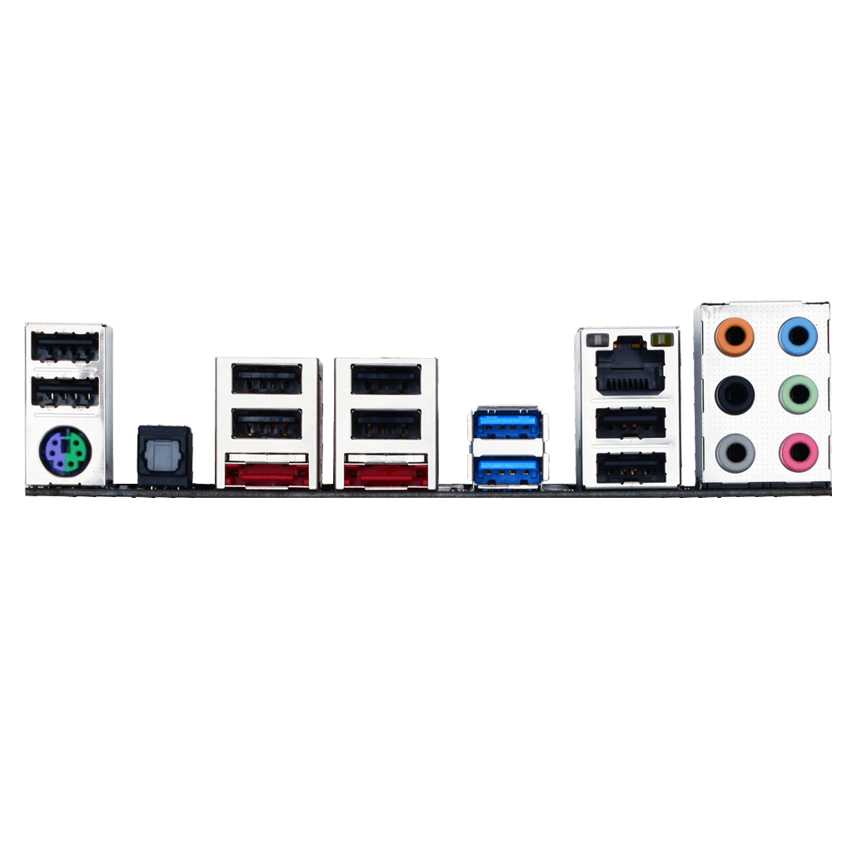

Conectores del Panel Trasero:
- 1 x PS/2 keyboard/mouse port
- 1 x optical S/PDIF Out connector
- 2 x eSATA 6Gb/s connectors
- 8 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Controlador de E/S: iTE® I/O Controller Chip
Monitorización H/W:
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU/System fan speed control
BIOS:
- 2 x 32 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS?
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas:
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Install
- Support for EasyTune
- Support for Smart Recovery 2
- Support for ON/OFF Charge
Software Incluido: Norton® Internet Security (OEM version)
Sistema Operativo: Support for Windows 8.1/8/7
Diseño: ATX Form Factor; 30.5cm x 24.4cm
