| Producto |

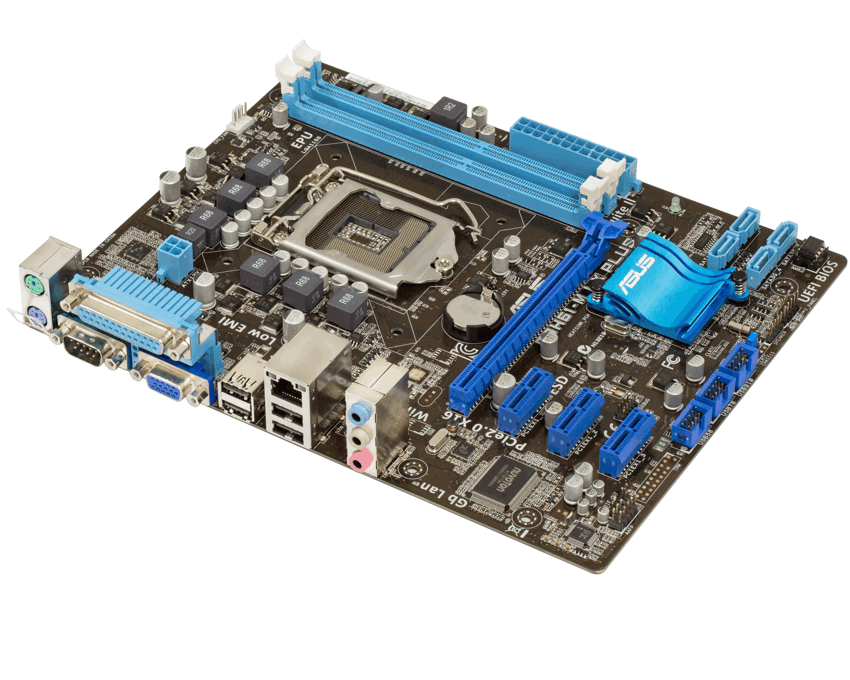

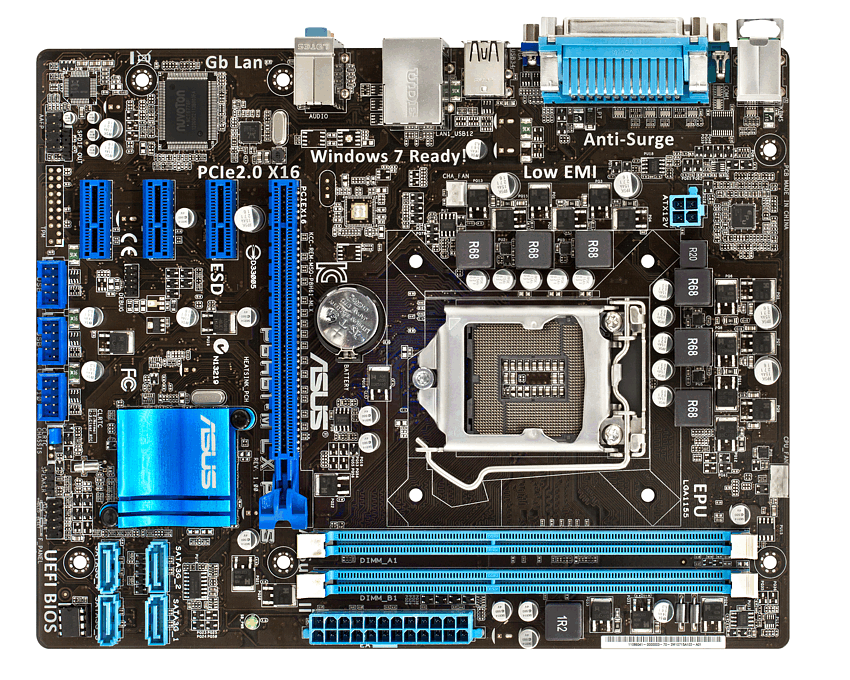

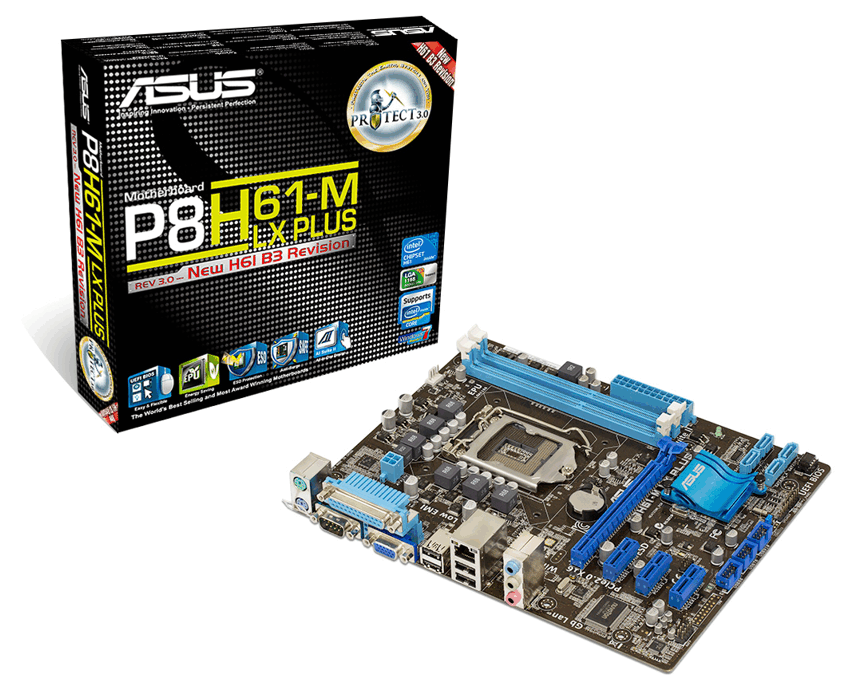

Placa Base Asus P8H61-M LX Plus |
| Descripción |
P8H61-M LX PLUS
Revisión 3.0 – Nueva H61 revisión B3. La mejor elección Intel H61 costo-eficiencia con la interfaz amigable UEFI BIOS y 100% capacitores sólidos. |
| Especificaciones |
CPU:
Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2
Chipset: Intel® H61(B3)
Memoria:
2 x DIMM, Max. 16GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Grafica:
Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports DirectX 10.1
Puertos de Expansión:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
Almacenamiento:
Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue
LAN:
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC *1
Puertos USB: Intel® H61(B3) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Capacidades de Overclocking:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Capacidades Especiales:
ASUS EPU :
- EPU
ASUS Protect 3 Technology :
- Anti-Surge Protection
- Low EMI Solution
- ESD
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

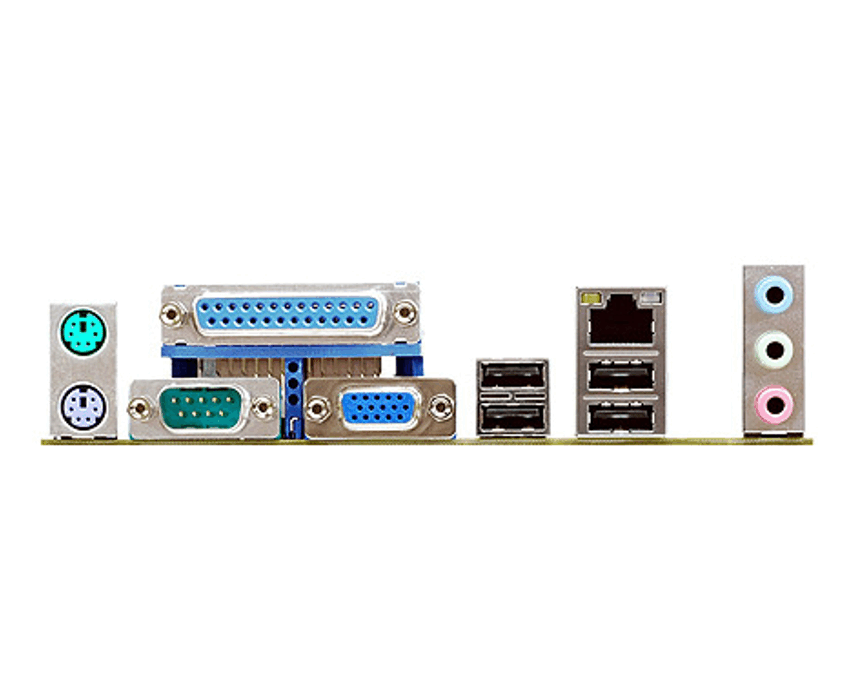

Puertos posteriores I/O:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O:
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Accesorios User's manual:
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS:
32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS
Form Factor:
microATX Form Factor
9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
|  |
