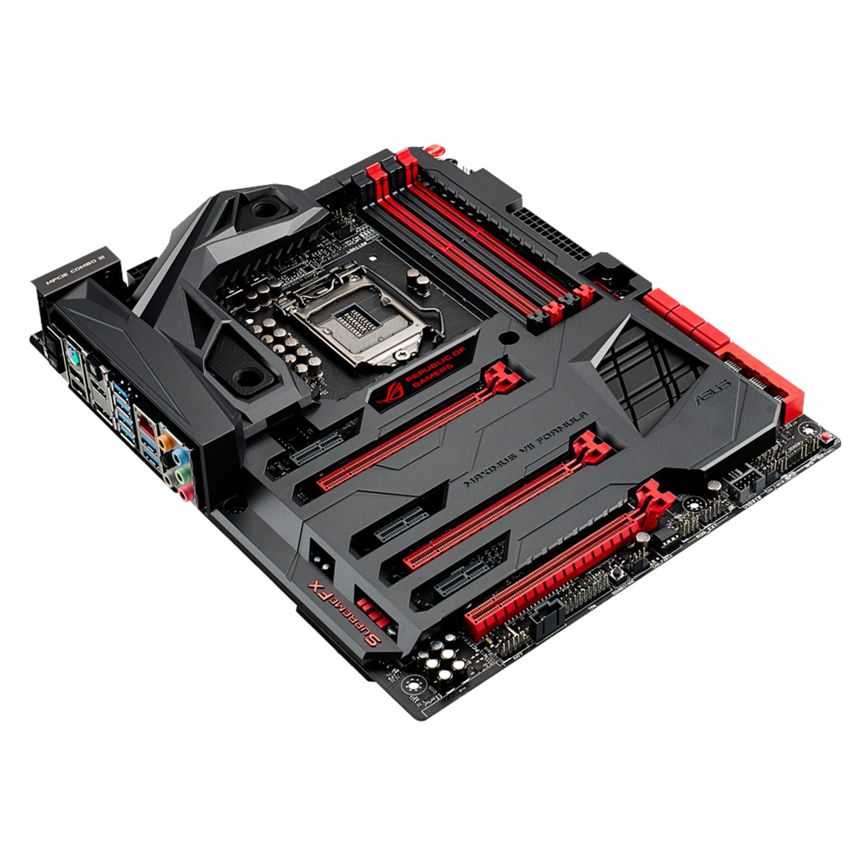

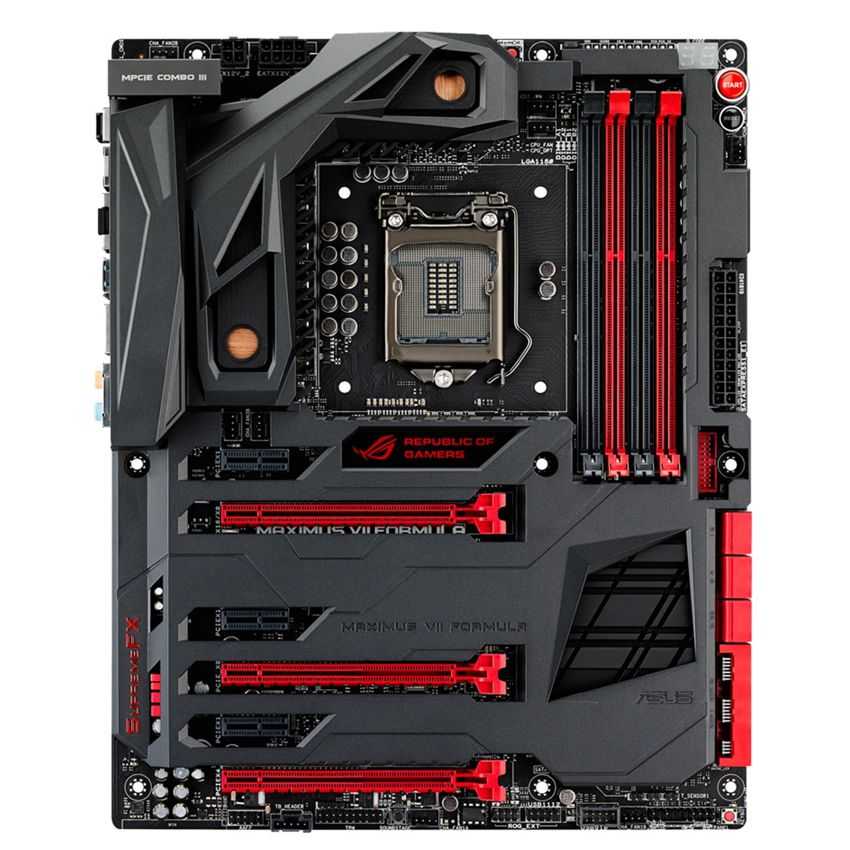

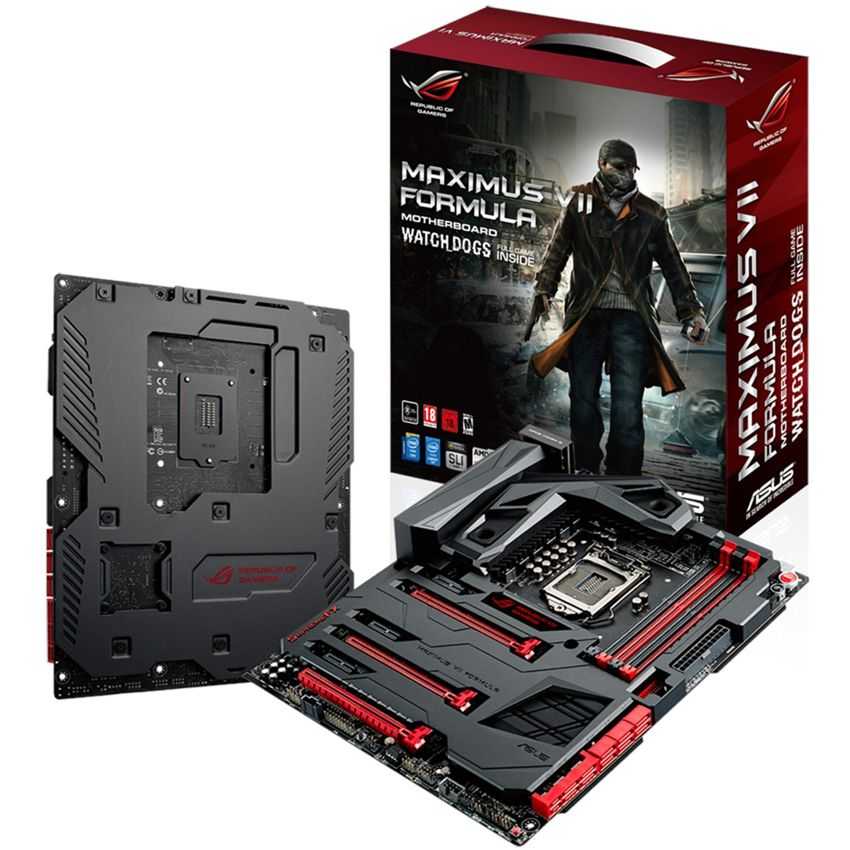

Placa Base ASUS Maximus VII Formula Gaming

·         CPU

Intel® Socket 1150 for the 5^th/New 4^th/4^th Generation Core? i7/Core? i5/Core? i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

·         Chipset

·         Memory

4 x DIMM, Max.
32GB, DDR3 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

·         Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max.
resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max.
resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider?

·         Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI? Technology
Supports AMD 3-Way CrossFireX? Technology

·         Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode) *¹
3 x PCIe 2.0 x1
1 x mini-PCIe 2.0 x1 *²

·         Storage

Intel® Z97 chipset :
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , with M Key, type 2260 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *³
ASMedia® SATA Express controller : *⁴
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
ASMedia® ASM1061 controller : *⁴
2 x SATA 6Gb/s port(s), red

·         LAN

Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard

·         Wireless Data Network

Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz

·         Bluetooth

·         Audio

ROG SupremeFX Formula 2014 8-Channel High Definition Audio CODEC *⁴
- Supports : Jack-detection, Multi-streaming
- SupremeFX Shielding Technology
- Cirrus Logic® CS4398 DAC: 120 dB SNR, -107 dB THD+N (Max.
192 kHz/ 24 -bit)
- WIMA® film capacitors
- ELNA® premium audio capacitors
- TI LM4562 high-fidelity audio OP AMP(s)
Audio Feature :
- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II

·         USB Ports

Intel® Z97 chipset : *⁵
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z97 chipset : *⁶
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)

·         ROG Exclusive Features

CrossChill Copper (Hybrid air and liquid cooling)*⁷

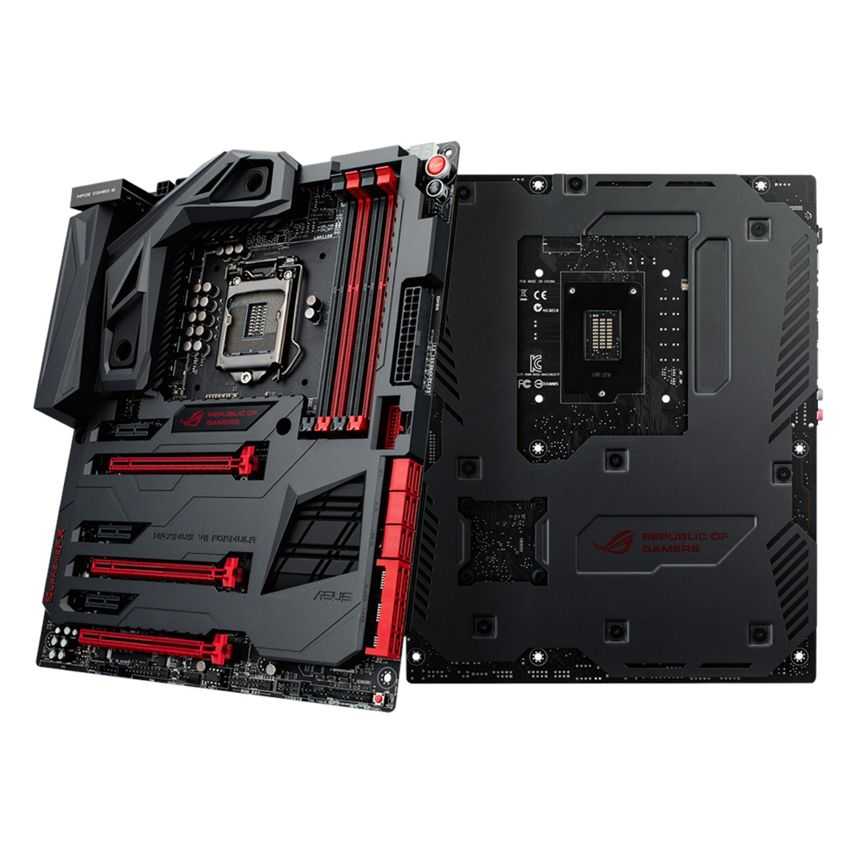

ROG Armor (including top cover and SECC steel backplate)*⁸
mPCIe Combo III (mPCIe/M.2 combo card)
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ III :
- 8 + 2 phase power design
- NexFET? Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- GPU.DIMM Post
- Tweakers Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
Extreme Tweaker

·         Special Features

5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C.
Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer

·         Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

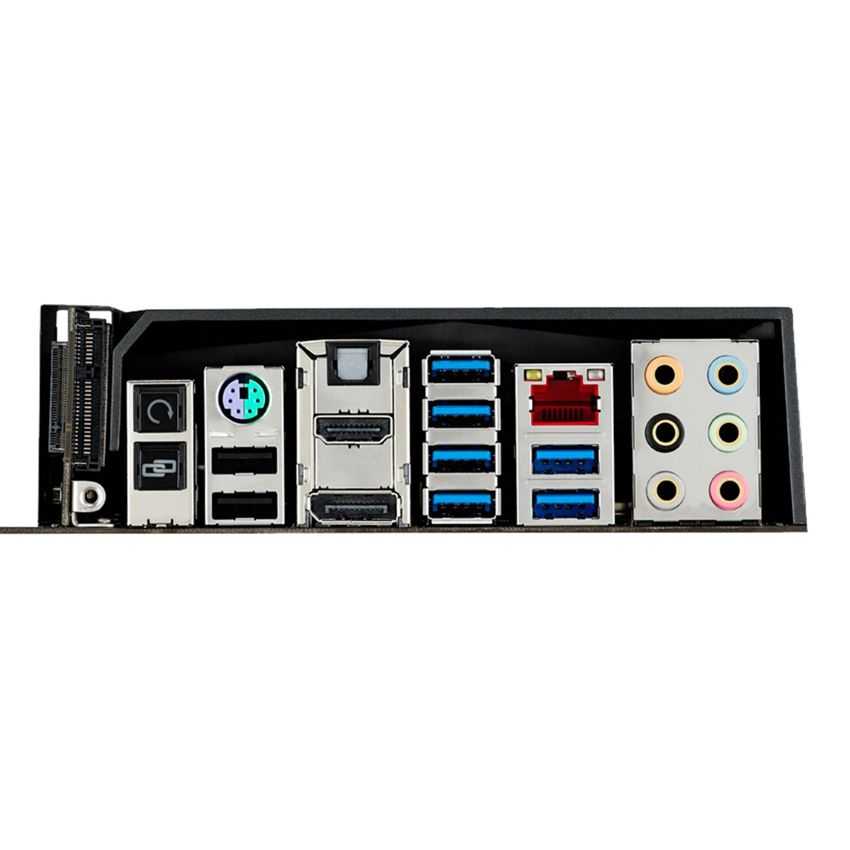

·         Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)

·         Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: red,
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
6 x Chassis Fan connector(s) (6 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
10 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x mPCIe Combo III connector(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button

·         Accessories

Users manual
I/O Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo III card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0 module
1 x ROG Door Hanger(s)

·         BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS

·         Manageability

·         Support Disc

Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities

·         Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
