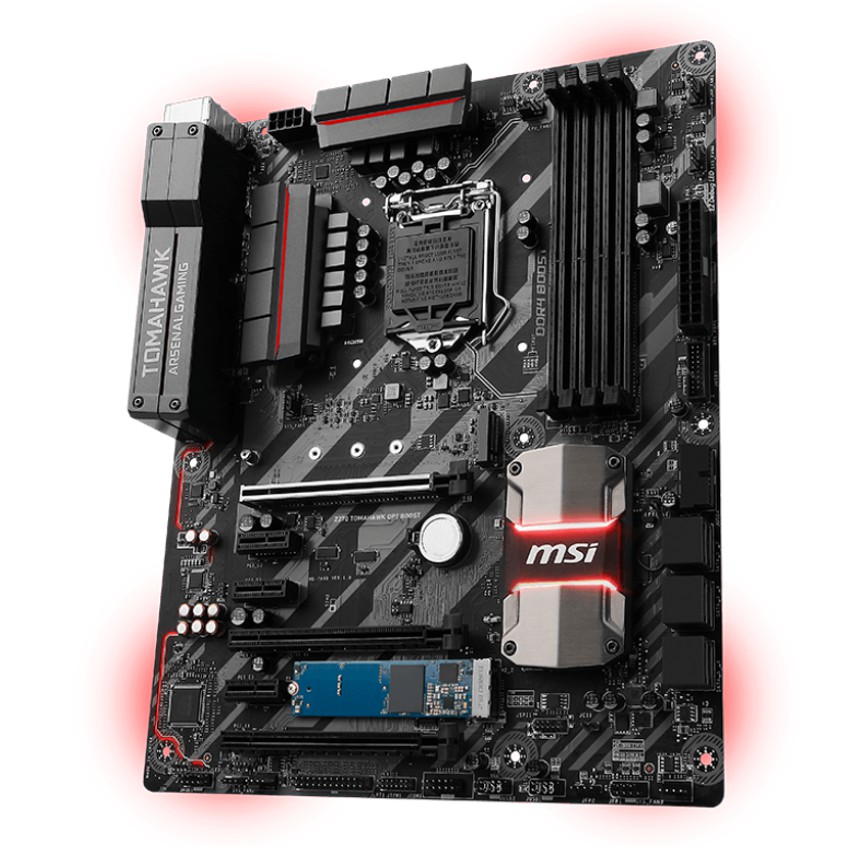

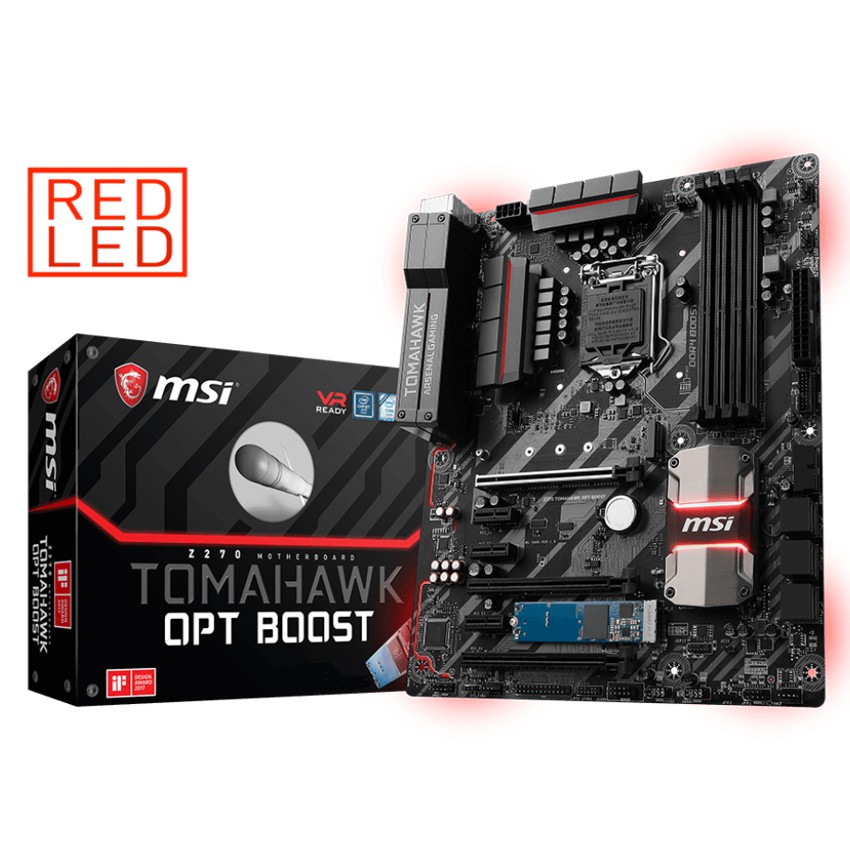

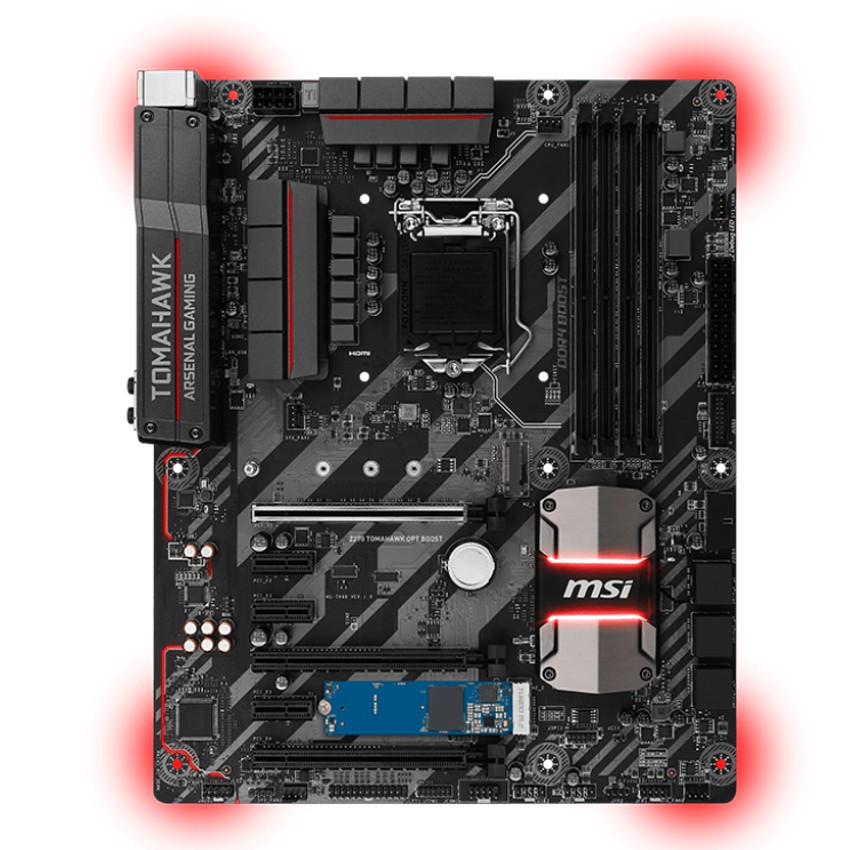

MSI Z270 TomaHawk OPT Boost

Descripción
Supports 7th / 6th Gen Intel® Core? / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-3800+(OC) Memory
16GB Intel® Optane? memory included: Boost your system up to 14X faster
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready: Best virtual reality game experience without latency
GAMING LEDs: Ambient LED lights for an awesome look & feel
Twin Turbo M.2 with Steel Armor.
Intel Optane Memory Ready, Lightning USB 3.1 Gen2
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency and bandwidth management
MULTI-GPU: With Steel Armor PCI-E slots.
Supports AMD Crossfire?
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Especificaciones
CPU
- Supports 7th/6th Gen Intel® Core? i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
  * This function will be supported depend on the CPU.


Chipset
- Intel® Z270 Chipset

Main Memory
- 4x DDR4 memory slots, support up to 64GB
  - 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
  - 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
  * Please refer www.msi.com for more information on compatible memory.


Slots
- 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
- 3 x PCIe 3.0 x1 slots
  * The PCI_E4 slot will be unavailable when an M.2 PCIe SSD module has been installed in the M.2_2 slot.
  ** The PCI_E2/ PCI_E5 slot will be unavailable when an expansion card has been installed in the PCI_E3/ PCI_E6 slot.

Onboard Graphics
- 1 x HDMI? port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Multi-GPU
- Supports 2-Way AMD® CrossFire? Technology

Storage
- Intel®Z270 Chipset
- 6 x SATA 6Gb/s ports*
- 2 x M.2 slots (Key M)
  - Support up to PCIe 3.0 x4 and SATA 6Gb/s
  - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
  - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
  - M2_2 slot supports 2242/ 2260 /2280 storage devices
  - Intel® Optane? Memory Ready for all M.2
- Supports Intel® Smart Response Technology for Intel Core? processors
  *The Intel® Optane? memory is pre-installed in the M2_2 slot
  ** M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs.
Please refer to manual for more detail.
  *** The Turbo U.2 Host Card is not included, please purchase separately.

RAID
- Intel®Z270 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
  * M.2 PCIe RAID volume can be created with M.2 GENIE, Please refer to manual for more detail.


USB
- ASMedia® ASM2142 Chipset
  - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- Intel®Z270 Chipset
  - 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio
- Realtek® ALC892 Codec
  - 7.1-Channel High Definition Audio
  - Supports S/PDIF output

LAN
- 1 x Intel® I219-V Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

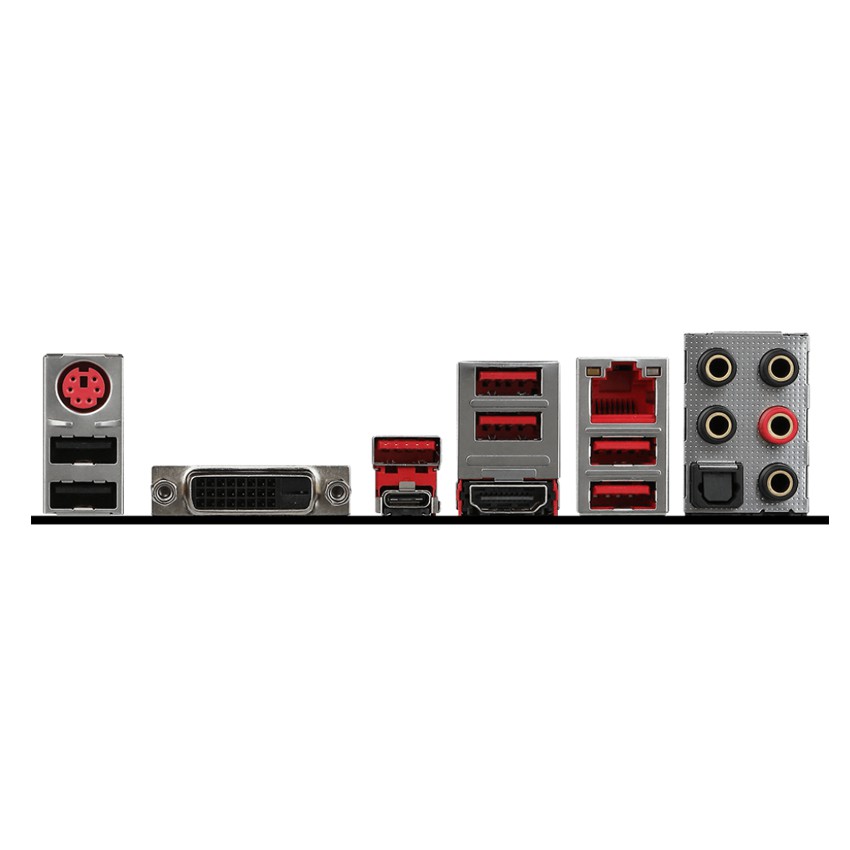

Back Panel I/O Ports
- 1 PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI? port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector

Dimension
- 12 in.
x 9.6 in.
(30.4 cm x 24.3 cm)
- ATX Form Factor

Mounting
- 9 mounting holes
