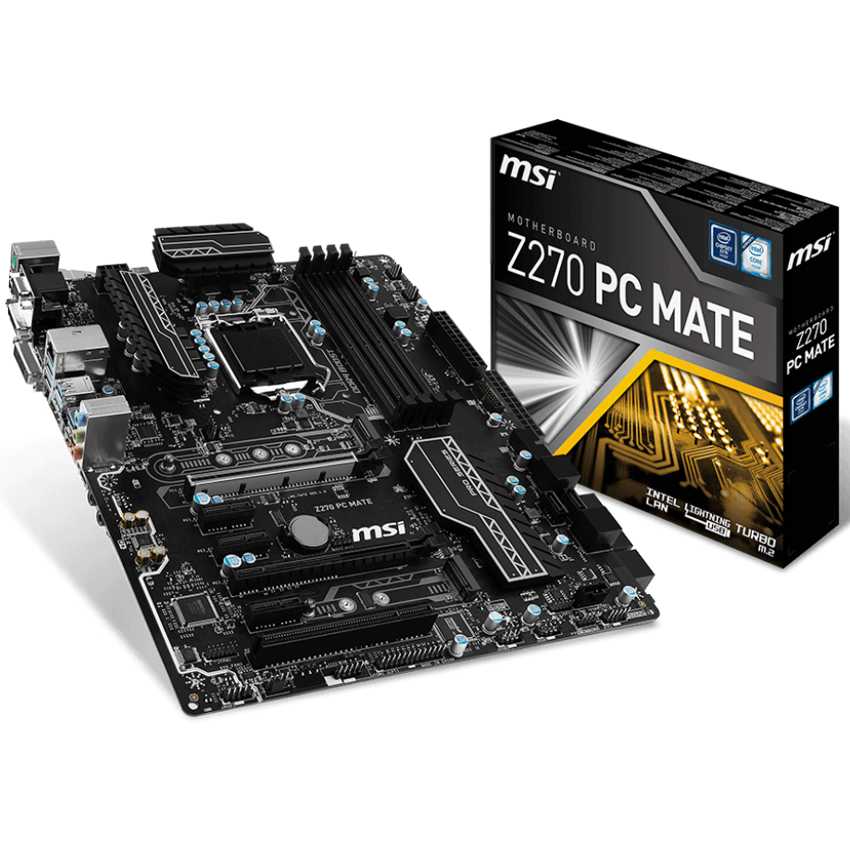

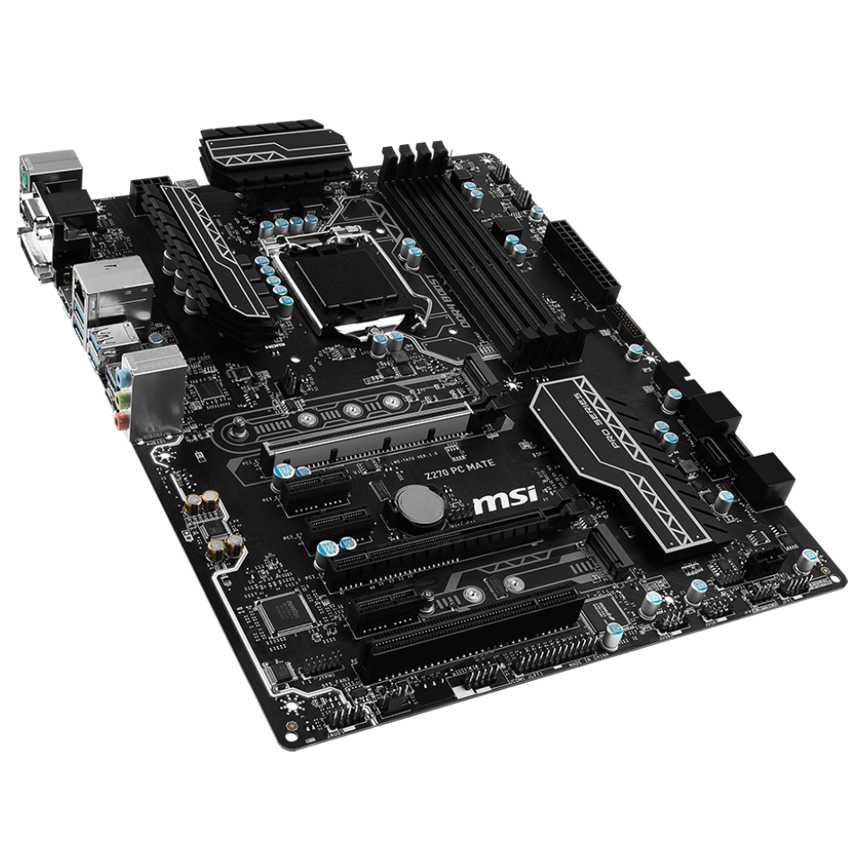

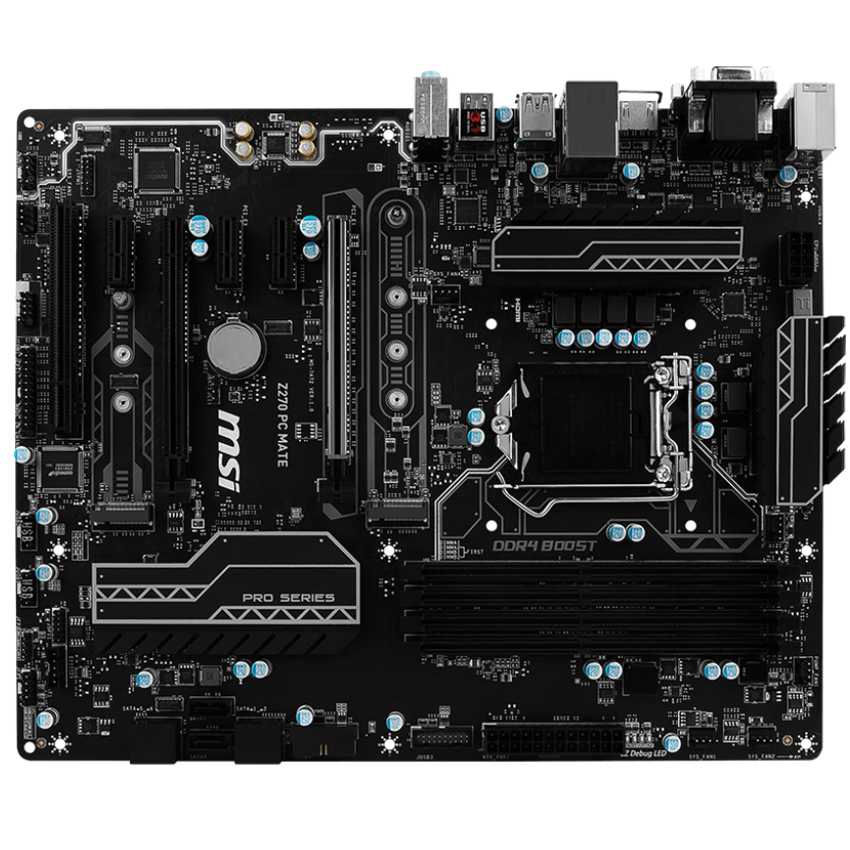

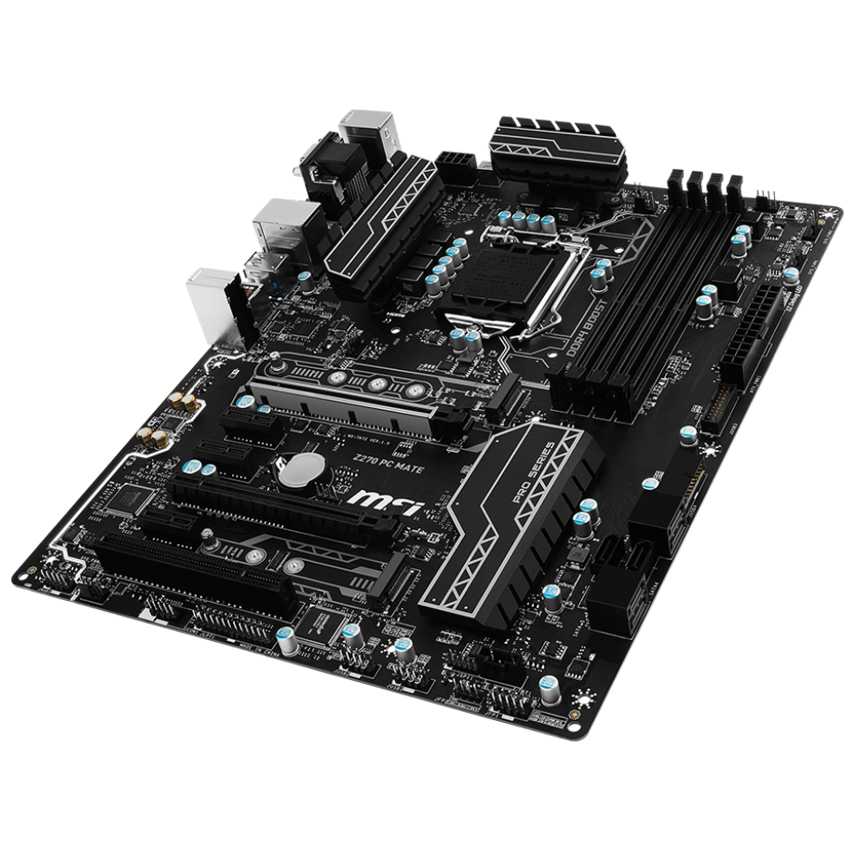

MSI Z270 PC MATE

Descripción
Supports 7th / 6th Gen Intel® Core? / Pentium® / Celeron® processors for LGA 1151 socket
Supports DDR4-3800+(OC) Memory
DDR4 Boost: Give your DDR4 memory a performance boost
Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
EZ Debug LED: Easiest way to troubleshoot
Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
M.2 Genie: Setting up RAID for M.2 much easier and faster
Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
X-Boost: Great tool to boost your USB & Storage performance
Doublo ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

Especificaciones
CPU
- Supports 6th/7th Gen Intel® Core? i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset
- Intel® Z270 Chipset

Main Memory
- 4 x DDR4 memory slots, support up to 64GB
  - 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
  - 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)

Slots
- 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)
- 3 x PCIe 3.0 x1 slots
- 1 x PCI slot

Onboard Graphics
- 1 x HDMI? port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Multi-GPU
- Supports 2-Way AMD® CrossFire? Technology

Storage
- Intel® Z270 Chipset
- 6 x SATA 6Gb/s ports
- 2 x M.2 slots (Key M)
  - Support up to PCIe 3.0 x4 and SATA 6Gb/s
  - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
  - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
  - M2_2 slot supports 2242/ 2260 /2280 storage devices
  - Intel® Optane? Memory Ready
- Supports Intel® Smart Response Technology for Intel Core? processors (optional)

RAID (optional)
- Intel® Z270 Chipset
  - Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0 and RAID1 for M.2 PCIe storage devices

USB
- ASMedia® ASM2142 Chipset
  - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
?  - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- Intel® Z270 Chipset
  - 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector) (optional)
  - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

Audio
- Realtek® ALC887 Codec
  - 7.1-Channel High Definition Audio

LAN
- 1 x Intel® I219-V Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TBT connector
- 1 x Clear CMOS jumper

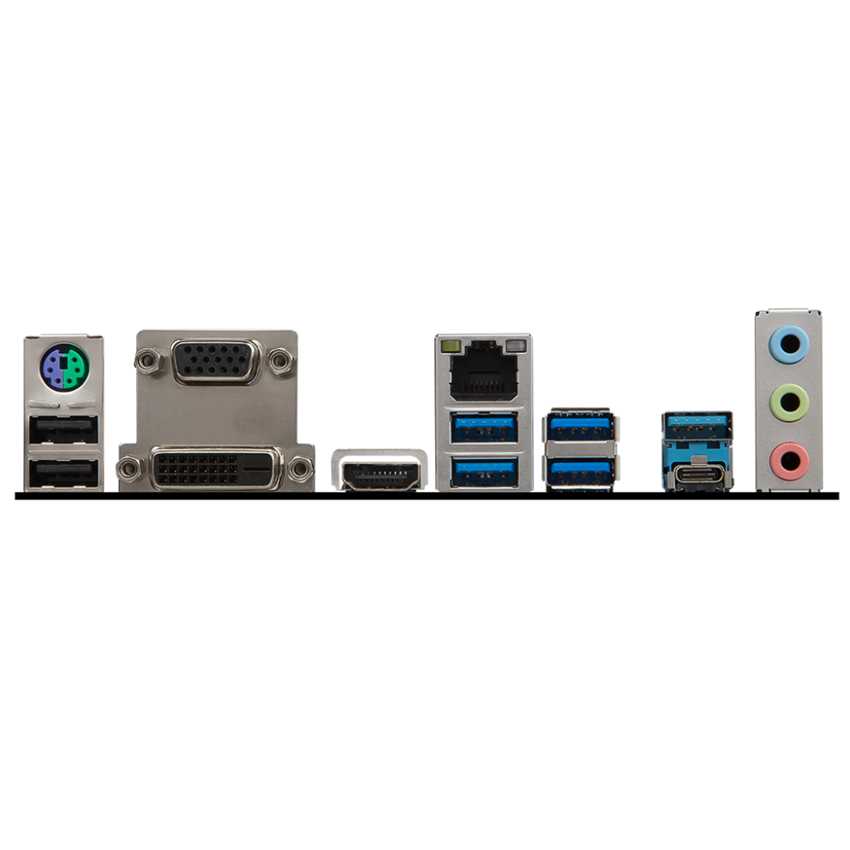

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI? port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 3 x audio jacks

Dimension
- 12 in.
x 9.6 in.
(30.4 cm x 24.3 cm)
- ATX Form Factor

Mounting
- 9 mounting holes
