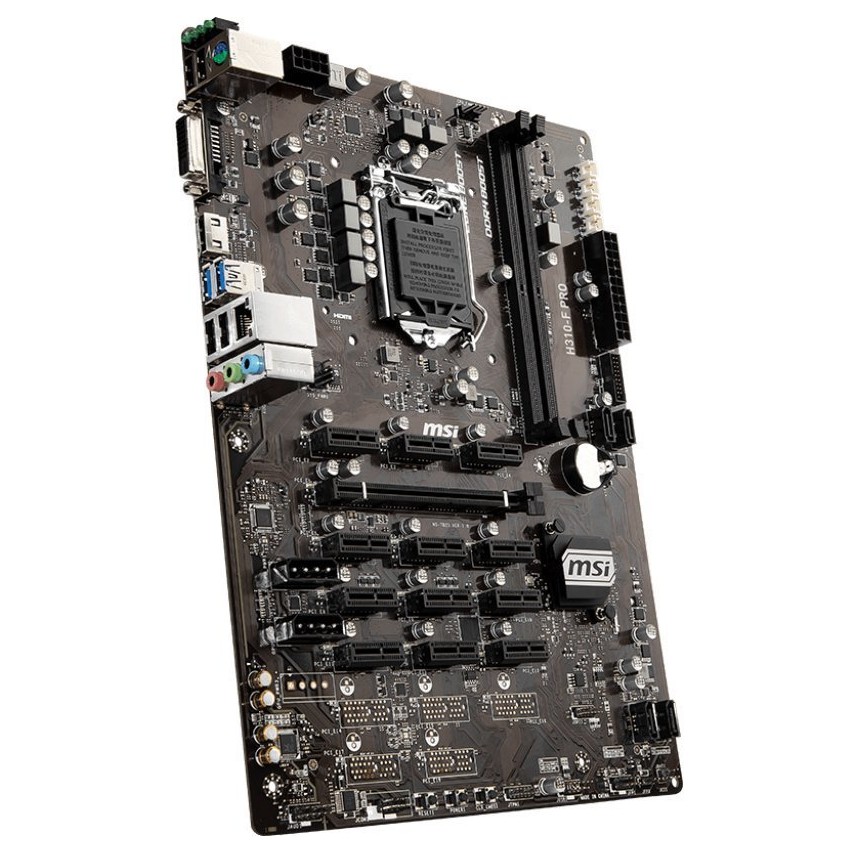

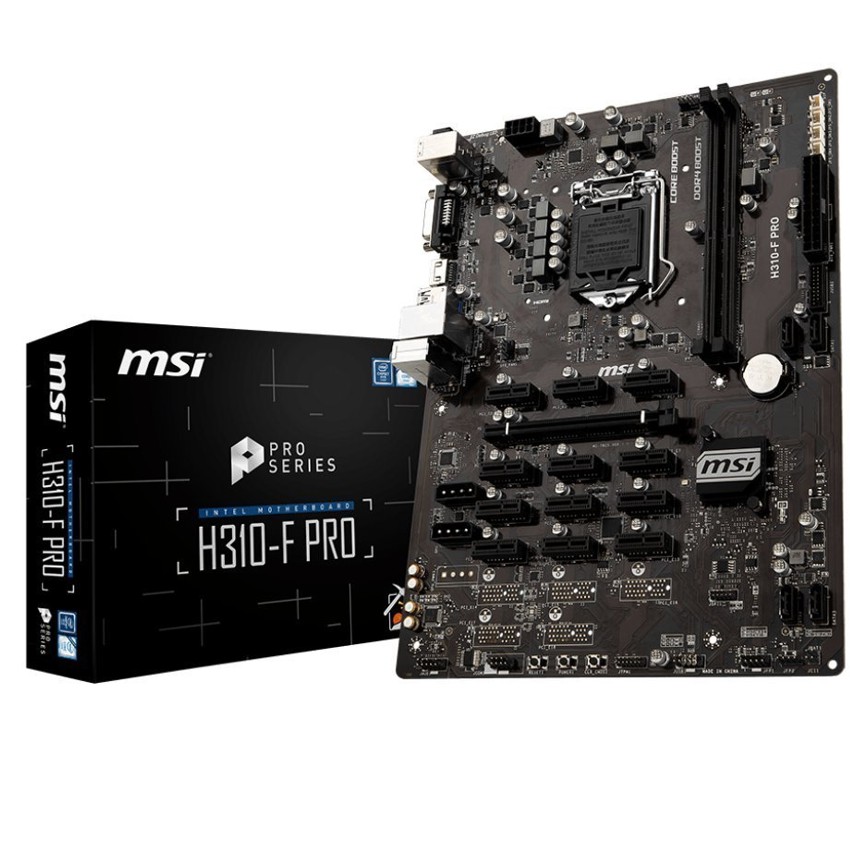

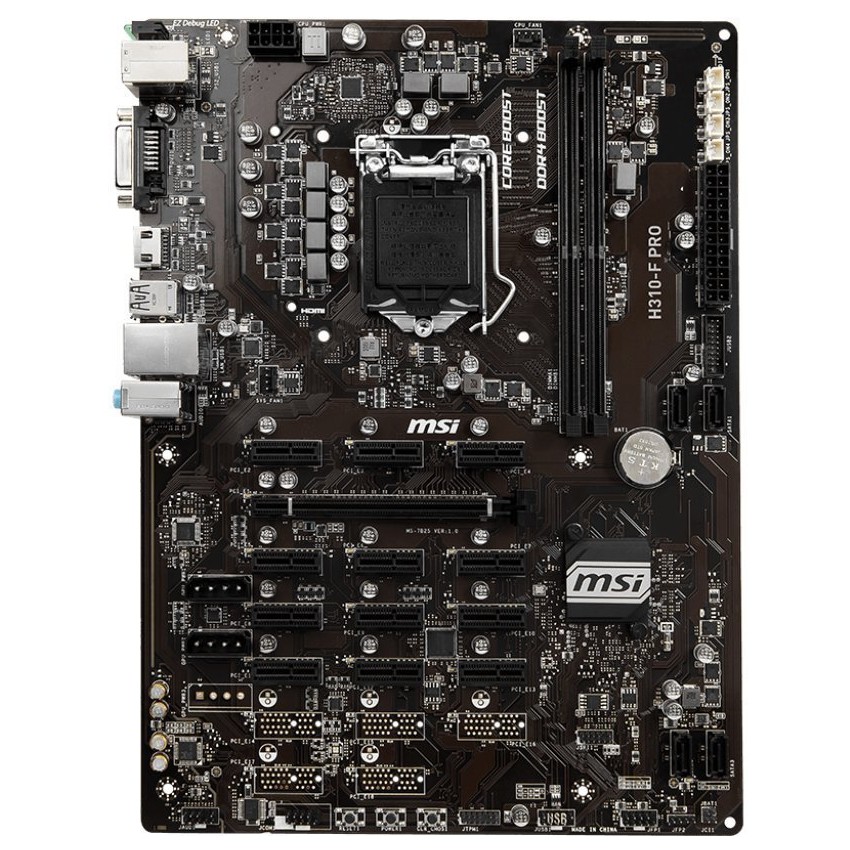

MSI H310-F Pro

Descripción
EZ Debug LED: Onboard LEDs for key components will indicate the source of the problem.
Mining Guard: Power/Reset/Clear CMOS Buttons on Board for managing your mining board without screen on
Intel LAN: Premium network solution from Intel® for professional and multimedia use.
Delivers a secure, stable and fast network connection.
Mining Management: MSI mining motherboard featuring customized Mining BIOS and built-in slot detection.
Auto detect your PCIE slot status and manage your mining rig with just one glance
Diskless Boot Supports: With diskless boot environment, miners don?t need maintain the operation system for each mining machines and save the money from the hard drives.
Mining LED: Featuring mining LED for each PCIE slot on the mining motherboard, you can check the status for each GPU by only spot the motherboard.
Super Mining Machine: Support 13X graphic cards for more hash.
Give you the easiest and the most convenient solution for your mining rig.
Independent Slot Power: The 13 PCIe slots are grouped into two distinct zones; each slot can be enhanced for better signal and more stable voltage.
5 x Power Sync: Supports up to 5 power supply to deliver power for your motherboard and GPUs

Especificaciones
SOCKET: 1151
CPU (MAX SUPPORT): i7
CHIPSET: Intel® H310 Chipset
DDR4 MEMORY: 2666/ 2400/ 2133 MHz
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 32
PCI-EX16: 1
PCI-E GEN: Gen3
PCI-EX1: 12
TPM (HEADER): 1

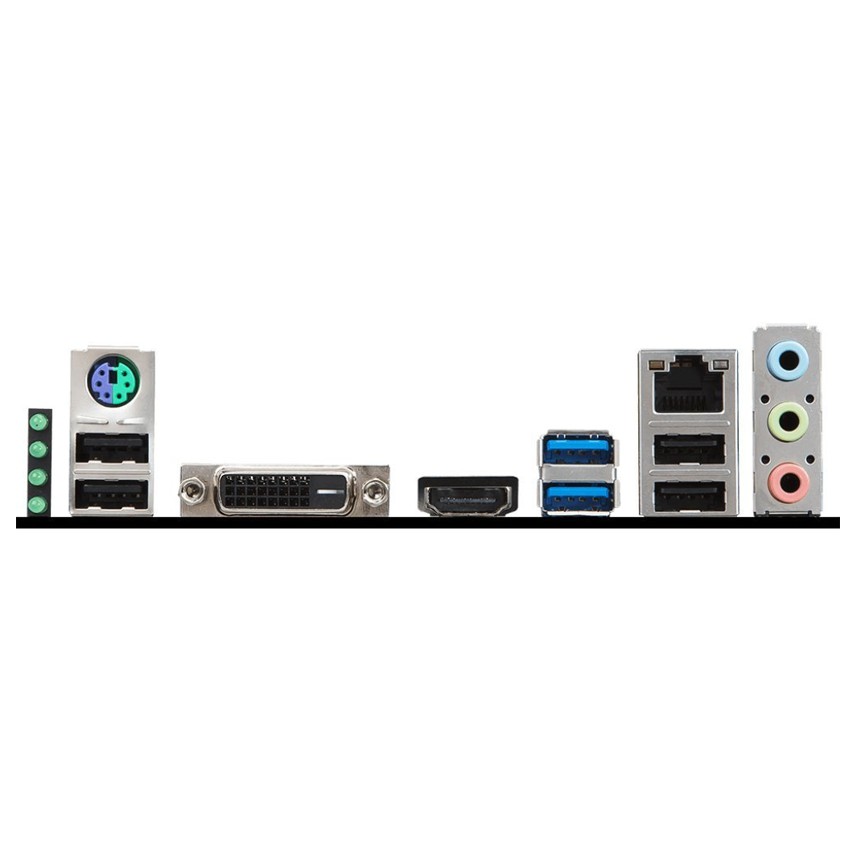

LAN: 10/100/1000*1
USB 3.1 PORTS (FRONT): 2(Gen1, Type A)
USB 3.1 PORTS (REAR): 2(Gen1, Type A)
USB 2.0 PORTS (FRONT): 2
USB 2.0 PORTS (REAR): 4
SERIAL PORTS(FRONT): 1
AUDIO PORTS (REAR): Realtek® ALC887 Codec
DVI-D: 1
HDMI: 1
DIRECTX: 12
FORM FACTOR: ATX
