CPU
? Soporta la sexta generacion de procesadores Intel Core i3/i5/i7 e Intel Pentium y Celeron para socket LGA1151
Chipset
? Intel® H110 Chipset
Memoria
? 2x DDR4 slot de memoria, soporta hasta 32GB
? Soporta DDR4 2133 MHz*
? Arquitectura dual chanel
? Soporta memoria non-ECC y un-bufered
? Soporta perfil Intel memoria extrema (XMP)
Slots
? 1 x PCIe 3.0 x16 slot
? 1 x PCIe 2.0 x1 slot
? 2 x PCI slots
Graficos integrados
? 1 x VGA , soporta resolucion maxima de 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
? 1 x DVI-D , soporta resolucion maxima de 1920x1200@60Hz
On-Board SATA
? Intel® H110 Chipset
? 4 x SATA 6Gb/s ports
USB
? Intel® H110 Chipset
- 4x USB 3.1 Gen1
- 6x USB 2.0
? GENESYS GL850G Chipset
- 2x USB 2.0
Audio
? Realtek® ALC887 Codec
? 7.1-Canal de audio HD
LAN
? 1 x Realtek RTL8111H Gigabit LAN controlador

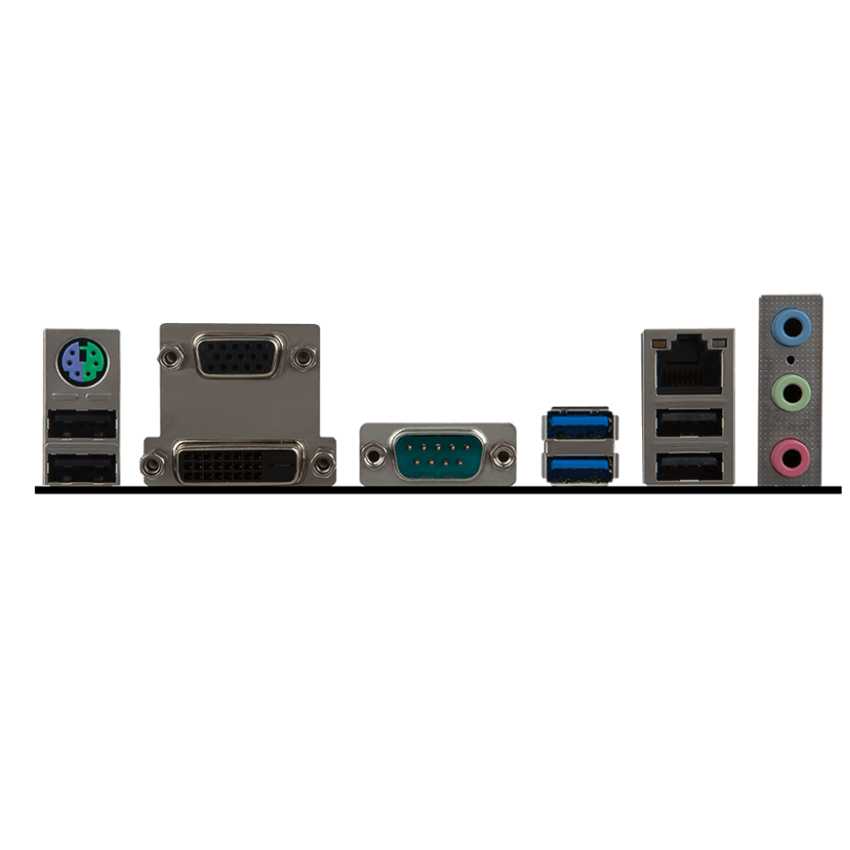

Panel trasero entrada/salida
- 1x PS/2 raton y teclado puerto combo
- 1 x VGA
- 1 x DVI-D
- 1 x COM
- 2 x USB 3.1 Gen1
- 4 x USB 2.0
- 1 x LAN (RJ45)
- 3 x audio jacks
Conectores internos entrada/salida
- 1x 24-pin ATX
- 1x 8-pin ATX 12V
- 4x SATA 6Gb/s c
- 2x USB 2.0
- 1x USB 3.1 Gen1
- 1x 4-pin CPU
- 2x 4-pin system fan
- 1x Front panel audio
- 2x Front panel
- 1x Serial
- 1x Parallelo
- 1x TPM
- 1x Chassis Intrusion
- 1x Clear CMOS
Dimensiones
? 20.5 cm x 24.4 cm factor de forma Micro-ATX
