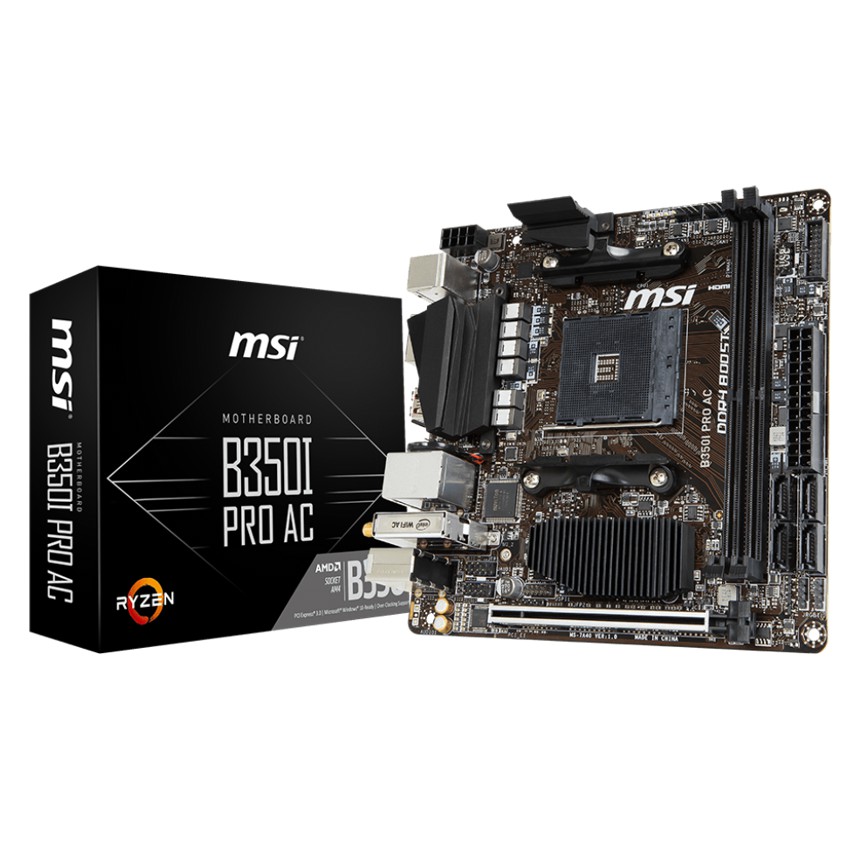

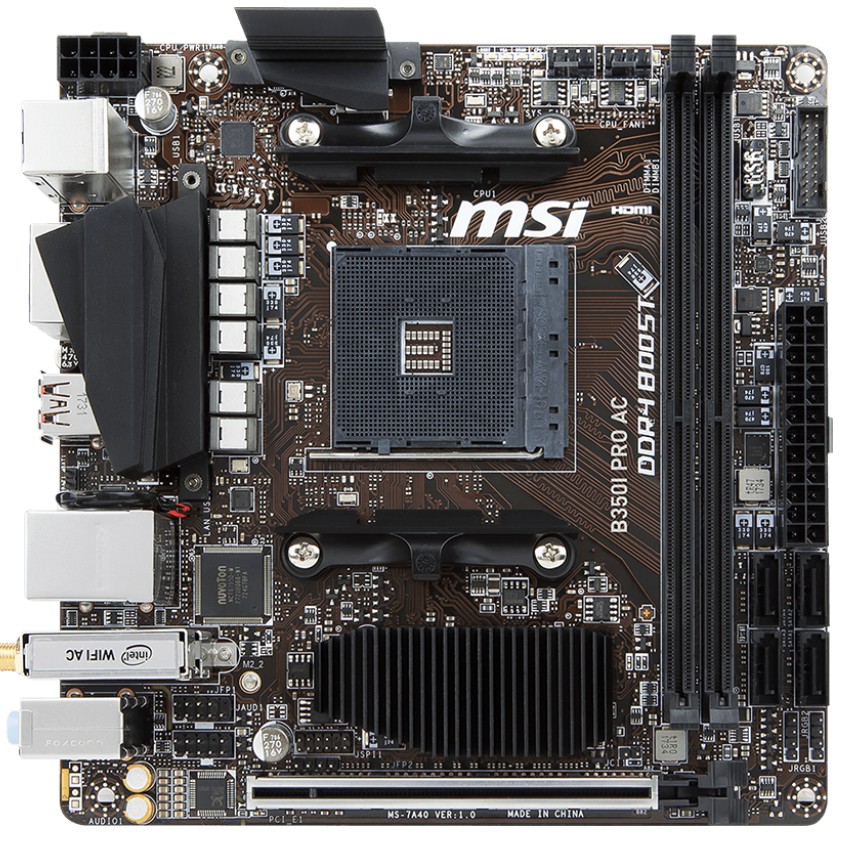

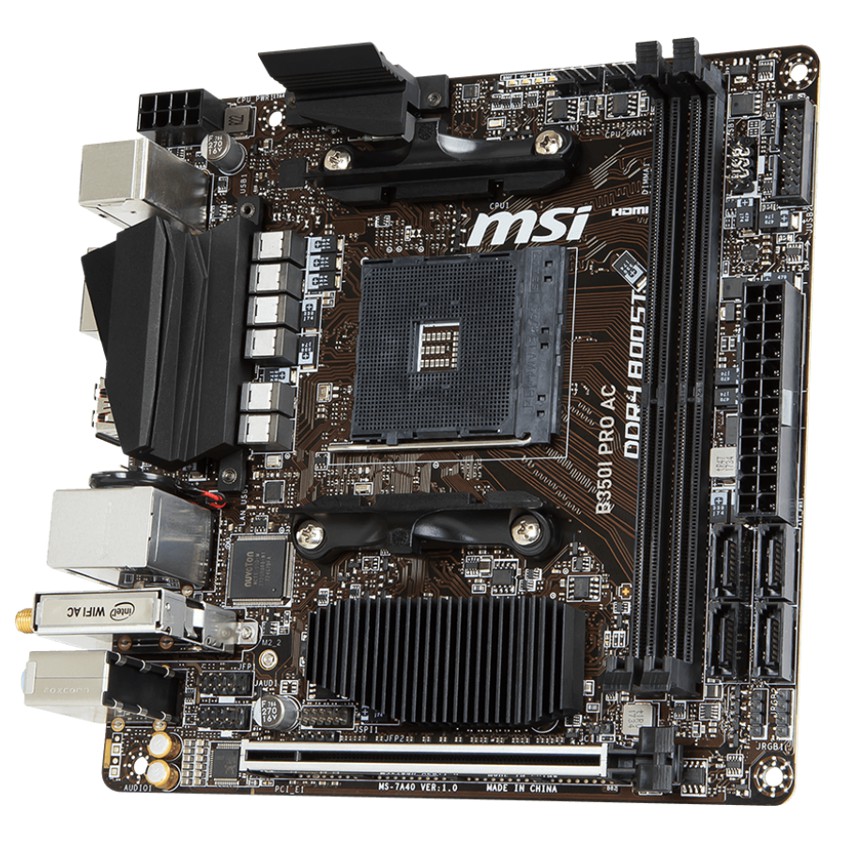

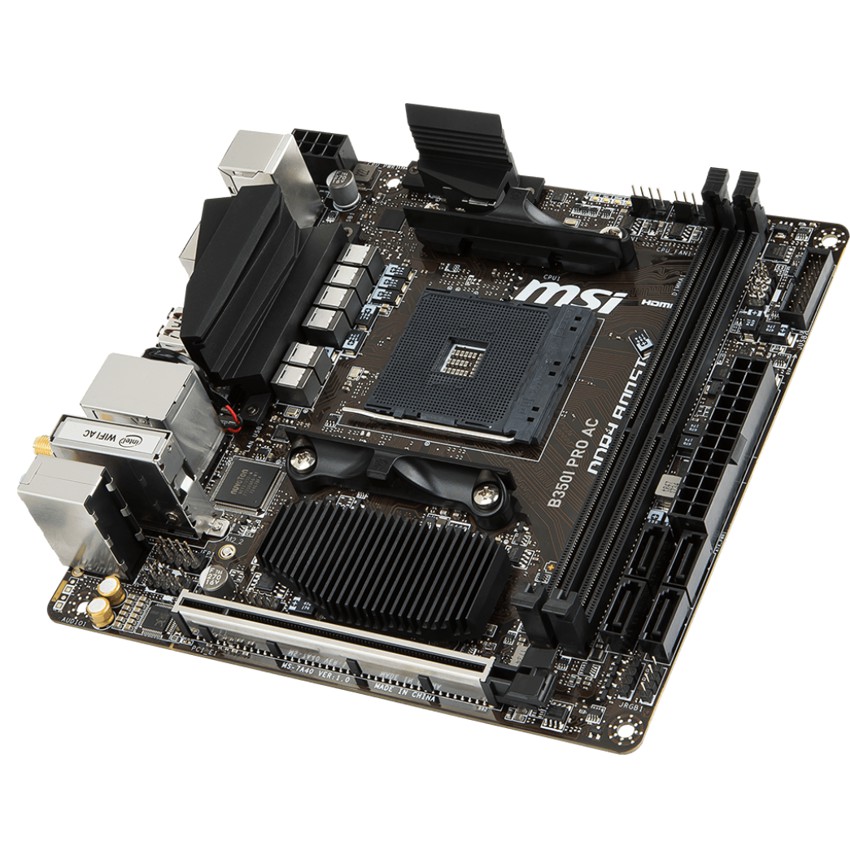

MSI B350I Pro AC

Descripción
Compatible con la serie de procesadores AMD® RYZEN y séptima generación de procesadores A-series / AthlonTM para socket AM4
Compatible con memorias DDR4-3200+(OC)
DDR4 Boost: Tecnología avanzada distribuida por MSI que asegura la máxima compatibilidad y rendimiento para el overclocking.
Turbo M.2: Proporcionando velocidades de hasta 32Gb/s
Audio Boost: Audio aislado de gran calidad para una experiencia realmente inmersiva
PCI-E Steel Armor: Protegiendo las tarjetas gráficas frente a las dobleces y las interferencias EMI
EZ Debug LED: El camino más rápido para encontrar el problema
VR Ready: La mejor experiencia en realidad virtual con la menor latencia, reduce la sensación de mareo
X-Boost: Fantástica herramienta para incrementar el rendimiento de tu USB o dispositivo de almacenamiento
Click BIOS 5: Galardonada BIOS con una fuente de alta resolución escalable con fantásticas funciones


Especificaciones
PROCESSOR
- Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon? processors for Socket AM4

CHIPSET
- AMD® B350 chipset

MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/3200(OC)+ MHz1
- Dual channel memory architecture
- Supports ECC UDIMM memory (non-ECC mode)/li>
- Support non-ECC UDIMM memory
- 7th Gen A-series/ Athlon ? processors support up to 2400 MHz only.

SLOTS
- 1x PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
- 7th Gen A-series/ Athlon? processors support x8 mode

ONBOARD GRAPHICS
- 1 x DisplayPort 1.2 port, supporting a maximum resolution of 4096x2160@60Hz1
- 1 x HDMI?1.4 port, supporting a maximum resolution of 4096x2160@24Hz1
- Only support when using a 7th Gen A-series/ Athlon? processor.

STORAGE
- AMD® B350 Chipset
- 4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
- 1 x M.2 port (M2_1), supports PCIe 3.0 x 4 ( RYZEN Series processors) or PCIe 3.0 x2 (7th Gen A-series/ AthlonTM processors) and SATA 6Gb/s, 2280 storage device

USB
- ASMedia® ASM3142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel
- AMD® B350 Chipset
- AMD® RYZEN Series Processors/ 7th Gen A-series/ Athlon? Processors
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)

AUDIO
- Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio

LAN
- 1 x Realtek® 8111H Gigabit LAN controller

WIRELESS LAN & BLUETOOTH®
- Intel® Dual Band Wireless-AC 3168 module
- The Wireless module is pre-install in the M2_2 (Key E) slot.
- Supports Wi-Fi 1x1 802.11ac, dual band (2.4GHz,5GHz) up to 433 Mbps speed.
- Supports Bluetooth® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR

INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x Chassis Intrusion connector
- 2 x LED strip connector
- 1 x Clear CMOS jumper

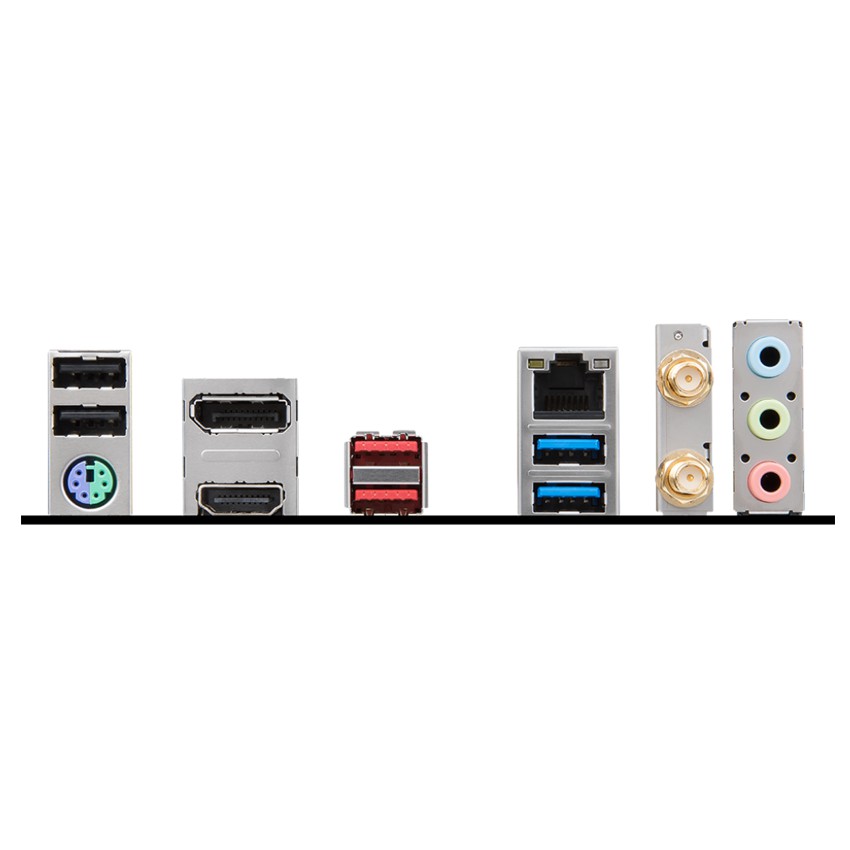

BACK PANEL PORTS
- USB 2.0 Port
- DisplayPort
- USB 3.1 Gen 2(Type A)
- LAN Port
- Antenna Connectors
- PS/2 Combo Port
- HDMI
- USB 3.1 Gen 1
- HD Audio Connectors
- MSI B350I PRO AC back panel ports

DIMENSIONS
- 6.7 in.
x 6.7 in.
(17.0 cm x 17.0 cm)
- Mini-ITX Form Factor

MOUNTING
- 4 mounting holes
