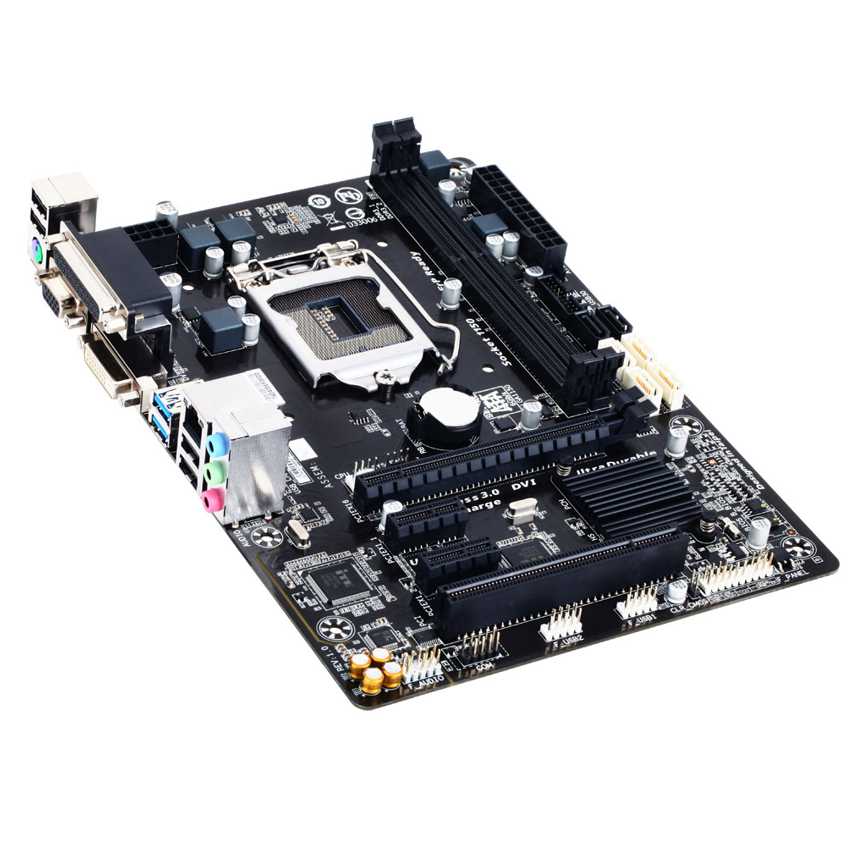

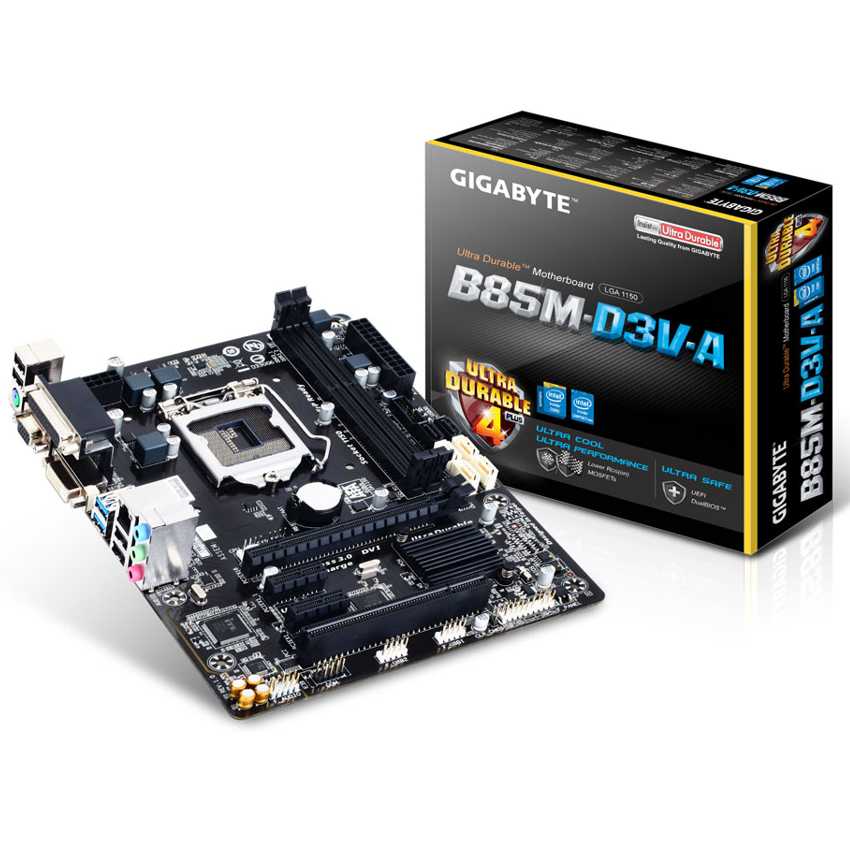

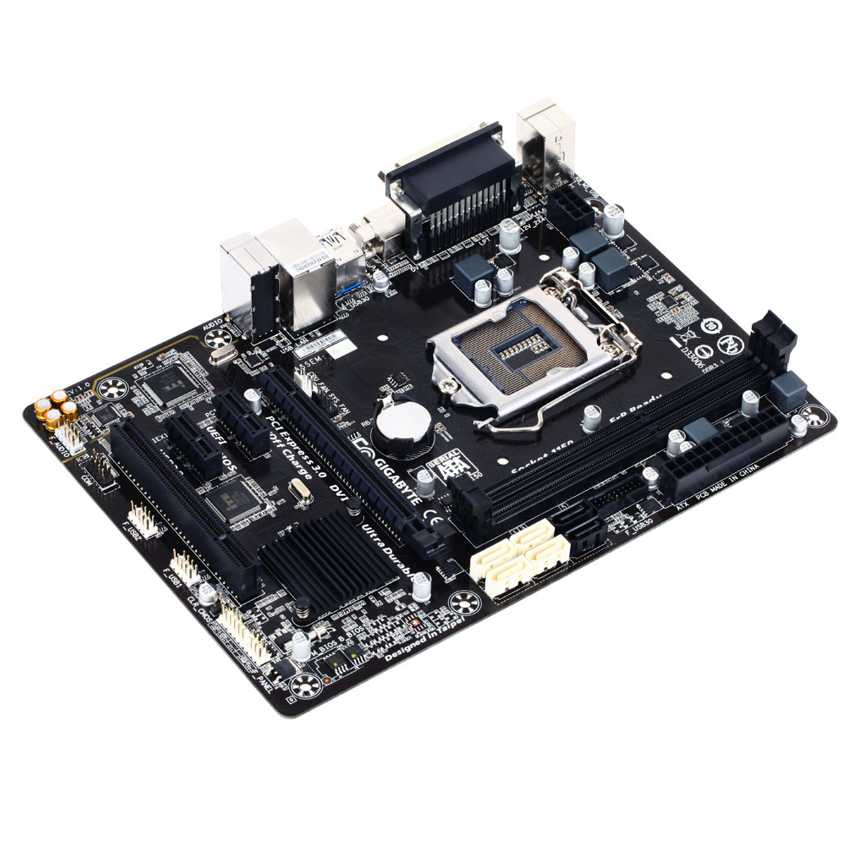

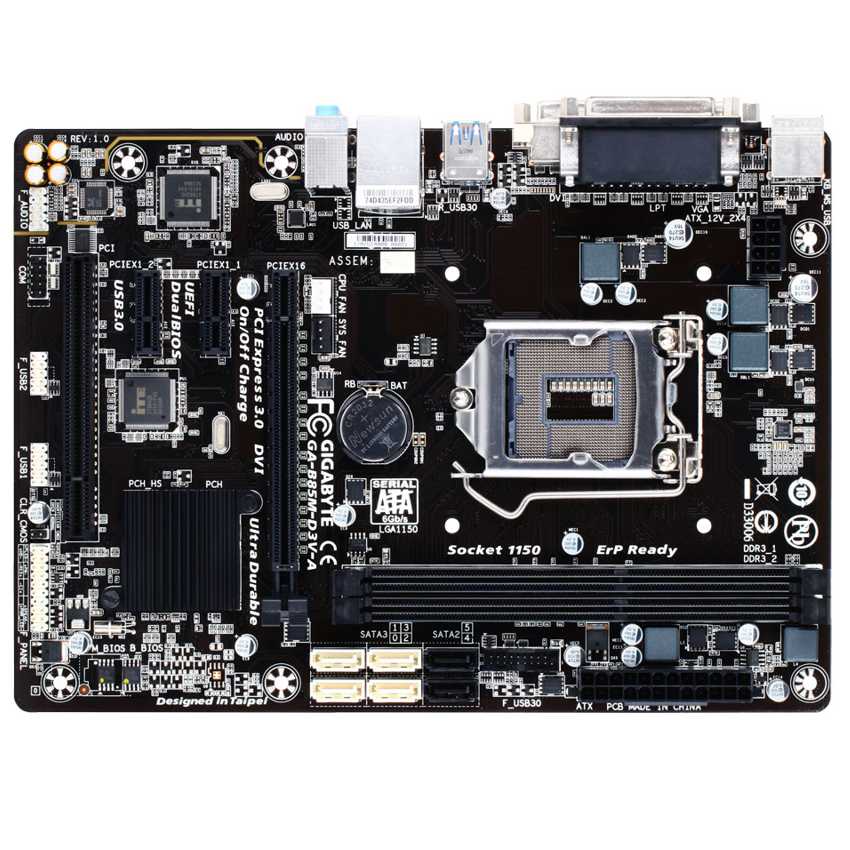

Gigabyte GA-B85M-D3V-A

Descripción
Supports 4th Generation Intel® Core? processors
GIGABYTE Ultra Durable? 4 Plus Technology
Audio Noise Guard with High Quality Audio Capacitors
GIGABYTE UEFI DualBIOS?
Industrys Leading All Solid Capacitor Design
GIGABYTE On/Off Charge? for USB devices
LAN with high ESD Protection
DVI interface for smoother HD video playback

Especificaciones
CPU:
Support for Intel® Core? i7 processors/Intel® Core? i5 processors/ Intel® Core? i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU

Chipset:
Intel® B85 Express Chipset

Memory:
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB

Audio:
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
1 x PCI slot

Storage Interface: Chipset:
4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
2 x SATA 3Gb/s connectors (SATA2 4/5)

USB: Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

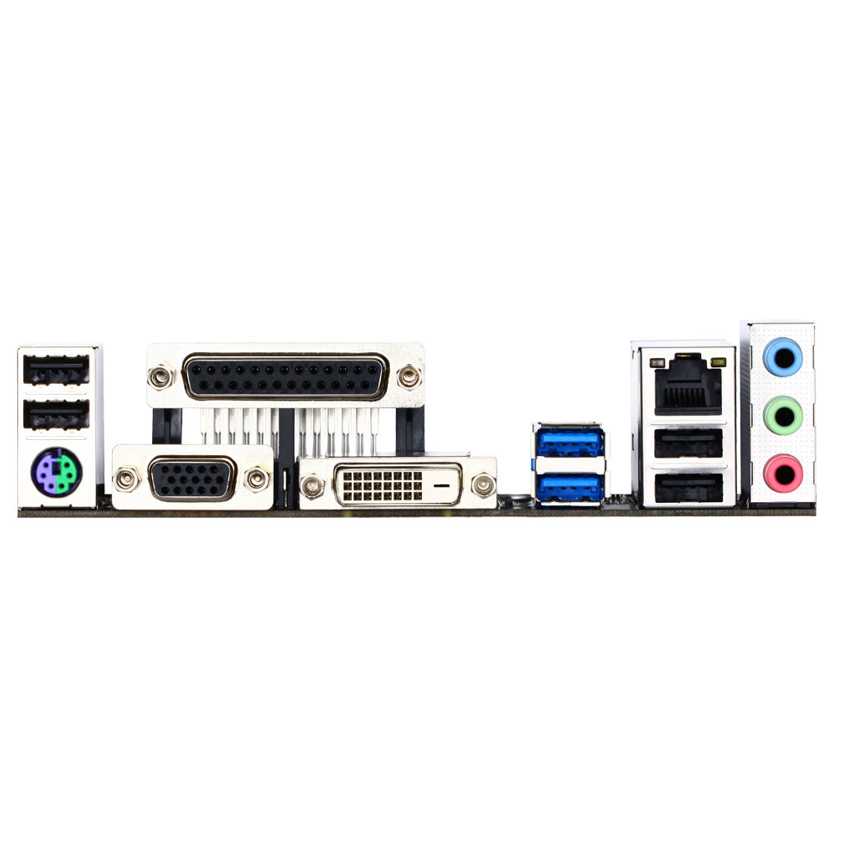

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller:
iTE® I/O Controller Chip

H/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control

BIOS:
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS?
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for Q-Flash
Support for Xpress Install
Support for APP Center
- @BIOS
- EasyTune
- EZ Setup
- USB Blocker
- Smart TimeLock
- Smart Recovery 2
- Fast Boot
Support for ON/OFF Charge

Bundle Software:
Norton® Internet Security (OEM version)
Intel® Rapid Start Technology
Intel® Smart Connect Technology

Operating System:
Support for Windows 10/8.1/8/7

Form Factor:
Micro ATX Form Factor; 24.4cm x 17.4cm
