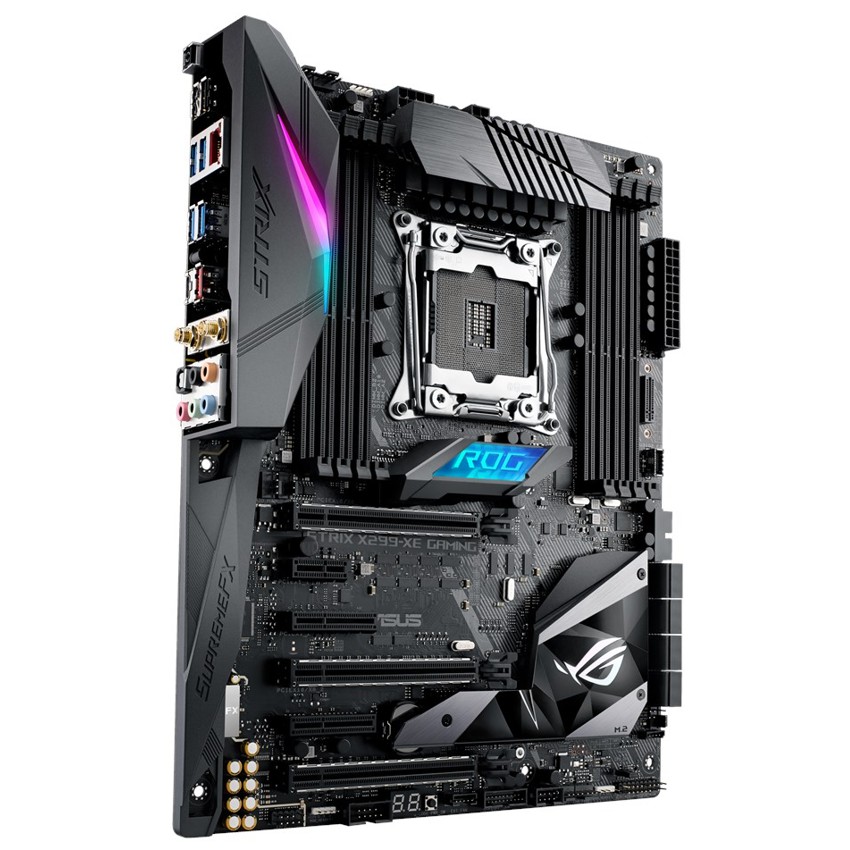

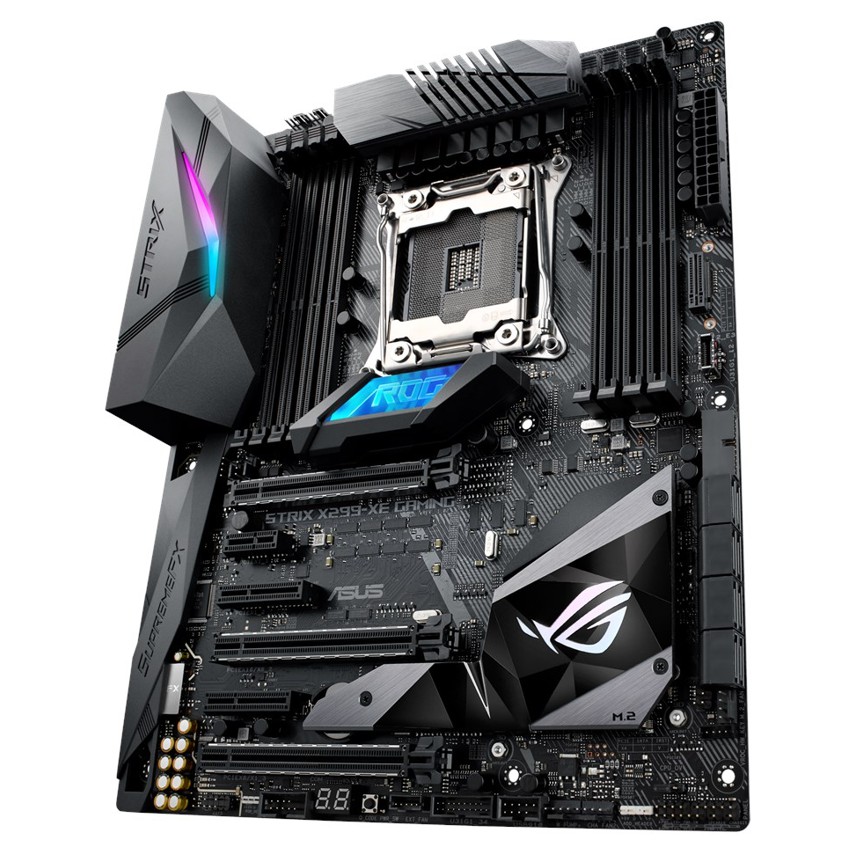

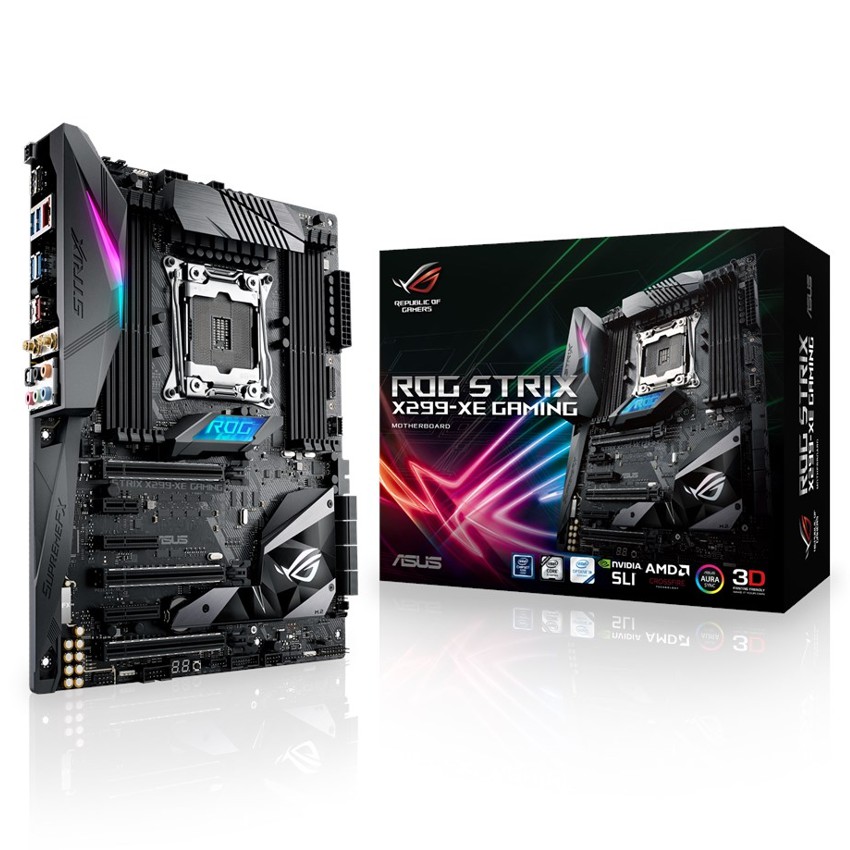

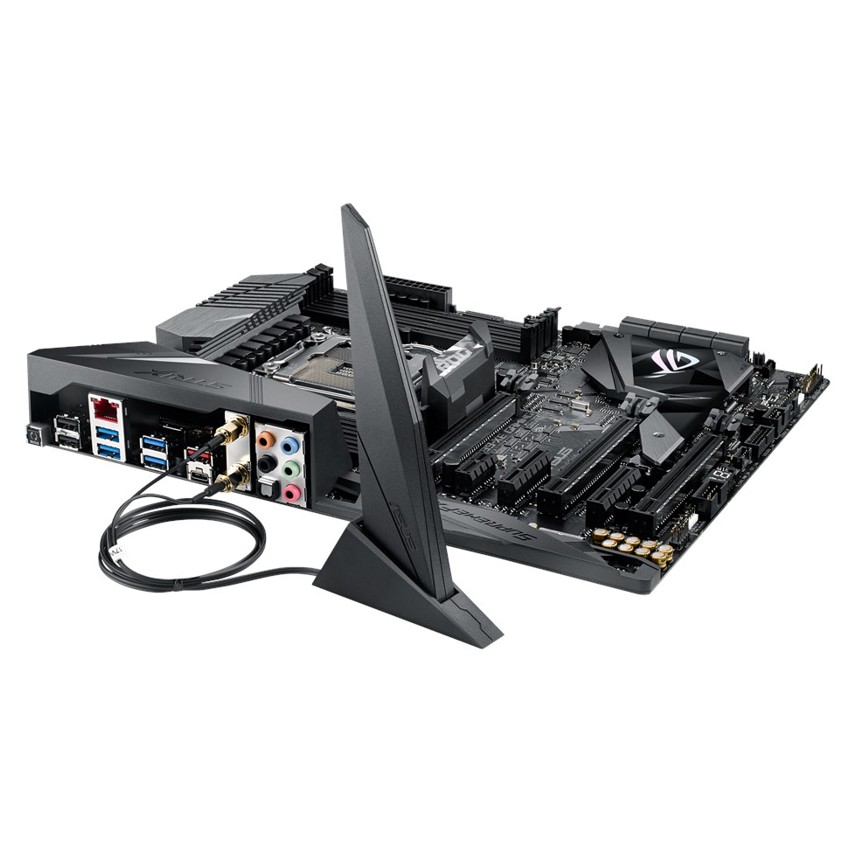

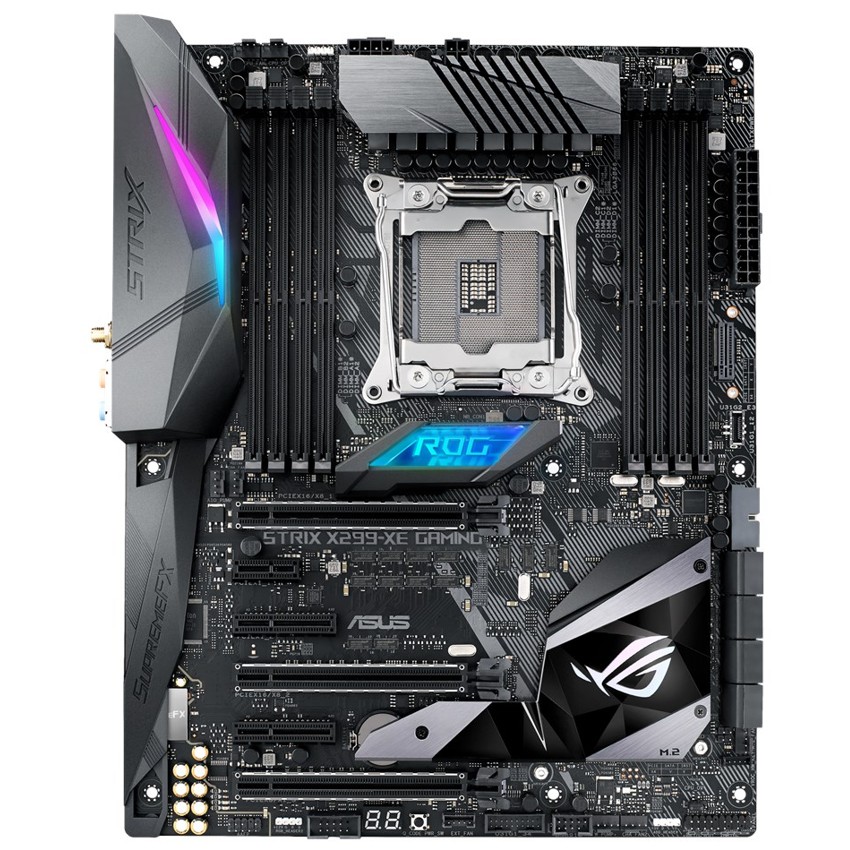

Asus ROG StriX X299-XE Gaming

Descripción
Familia de procesadores Intel® Core? X Series: Listo para las últimas CPU de zócalos LGA 2066.
Aura Sync RGB: Sincronice la iluminación LED con una amplia gama de equipos compatibles para PC, incluidas las tiras RGB direccionables.
Disipador térmico Onboard M.
2: Refrigera su unidad M.
2, proporcionando un rendimiento de almacenamiento consistente y una fiabilidad mejorada.
Optimización de 5 vías: Ajuste automatizado en todo el sistema, proporcionando perfiles de overclocking y enfriamiento hechos a medida para su equipo.
Audio de juegos: SupremeFX S1220A en conjunto con Sonic Studio III crean un paisaje auditivo que te lleva a una acción más profunda.
Conectividad para juegos: Conectores Dual M.
2 y USB 3.1 Gen 2 Type-A y Type-C?.
Redes de juegos: Intel Gigabit Ethernet, LANGuard GameFirst y 2x2 802.11ac Wi-Fi con soporte MU-MIMO.
Durabilidad de juego: ASUS SafeSlot y componentes premium para una máxima resistencia.
ROG Strix gratis: Tiras RGB direccionables, ventilador, soporte de ventilador y soporte VGA todo incluido, además de un montón de pequeños extras.

Especificaciones
CPU
Intel® Socket 2066 Core? X-Series Processors

Chipset
Intel® X299

Memory
Intel® Core? X-series Processors (6-core above)
8 x DIMM, Max.
128GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core? X-series Processors (4-core)
4 x DIMM, Max.
64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI? Technology
Supports NVIDIA® 3-Way SLI? Technology
Supports NVIDIA® 2-Way SLI? Technology
Supports AMD Quad-GPU CrossFireX? Technology
Supports AMD 3-Way CrossFireX? Technology
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
44-Lane CPU-
Intel® Core? X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
28-Lane CPU-
Intel® Core? X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
16-Lane CPU-
Intel® Core? X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1

Storage
Intel® Core? X-Series Processors Family :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel Rapid Start Technology
Intel® Optane? Memory Ready

LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst IV

Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac

Bluetooth
Bluetooth V4.2

Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- SupremeFX Shielding? Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III

USB Ports
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board)
Intel® X299 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)

ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Special Features
OC Design - ASUS PRO Clock II Technology
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Back I/O Ports
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper

Accessories
Users manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x ROG addressable LED strip (30cm)
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x M.2 screw kit (long screw and mount)
1 x Thermal sensor cable pack(s)
1 x Cable ties pack(s)
ROG Fan Label
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x 3D printing mount package

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
