Asus ROG StriX B250G Gaming

Descripción
ROG SupremeFX S1220A audio - Amplia tecnología de audio con amplificadores de auriculares para un sonido cristalino
Redes de juegos - El mejor en su clase Intel® Gigabit Ethernet para optimizar las experiencias de LAN y de juegos en línea, además de proteger LANGuard
Conectividad de próxima generación - Ranuras M2 de doble placa para hasta 32 Gbps de ancho de banda PCIe y memoria Intel® Optane ?
ASUS SafeSlot de patente pendiente para una mayor retención PCIe y resistencia al corte

Especificaciones
CPU
Build in Intel® Socket 1151 for 7th/6th Generation Core? i7/Core? i5/Core? i3/Pentium®/Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset
Build in Intel® B250

Memory
4 x DIMM, Max.
64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI ports
- Supports HDMI with max.
resolution 4096 x 2160 @ 24 Hz
- Supports DVI with max.
resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider?

Expansion Slots
1 x PCIe 3.0/2.0 x1 (x16 mode)
2 x PCIe 3.0/2.0 x1

Storage
Intel® B250 Chipset :
6 x SATA 6Gb/s port(s),
Intel® B250 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*
Intel® Optane? Memory Ready *

LAN
Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard

Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *1
Audio Feature :
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity

USB Ports
Intel® B250 Chipset :
6 x USB 3.0 port(s) (2 at back panel, , 4 at mid-board)
Intel® B250 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

ROG Exclusive Features
ROG CPU-Z
Overwolf

Special Features
Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
GPU Boost
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Fan Xpert 3

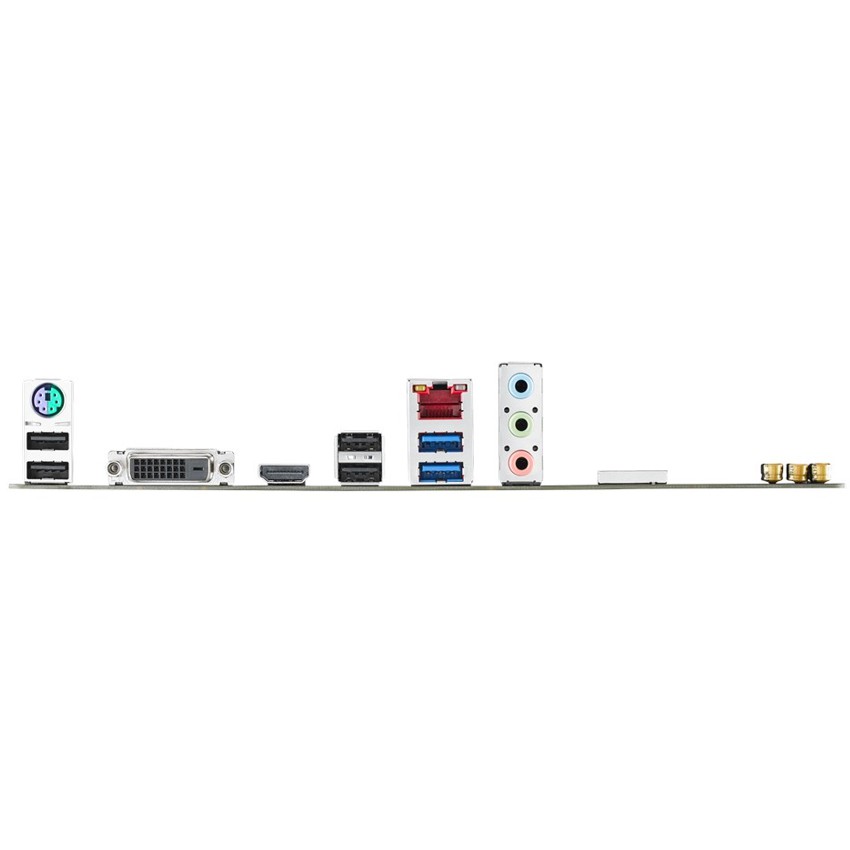

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 2.0
2 x USB 3.0
3 x Audio jack(s)

Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) ( x 4 -pin)
1 x Chassis Fan connector(s) ( x 4 -pin)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM2.0, DMI3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *1
Windows® 7 32-bit *1
Windows® 7 64-bit *1

Form Factor
mATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
