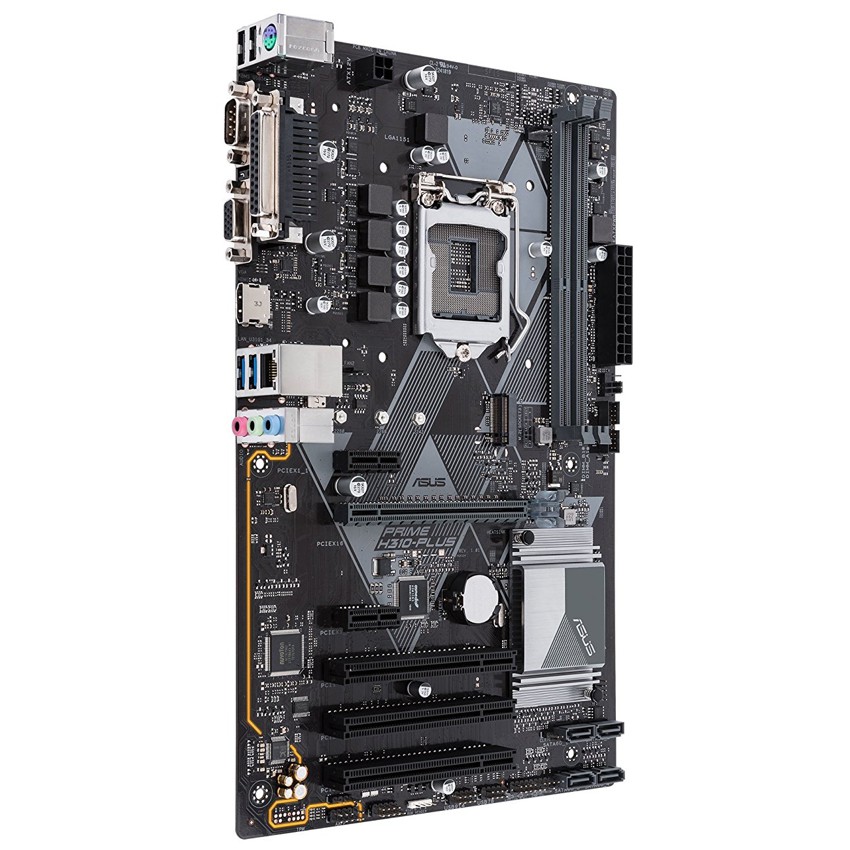

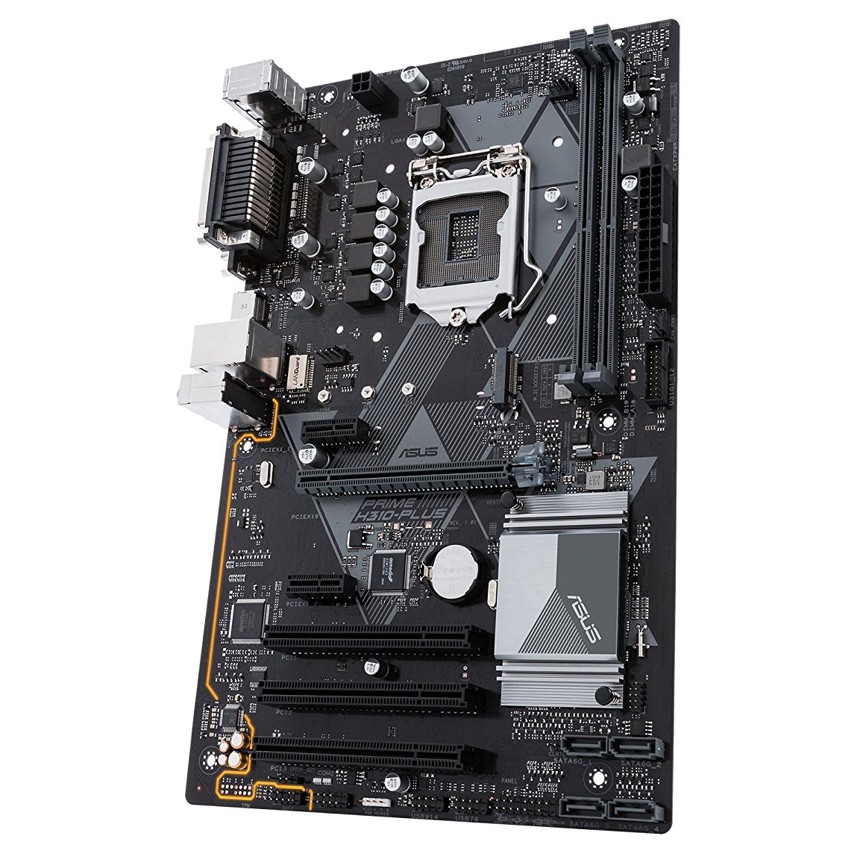

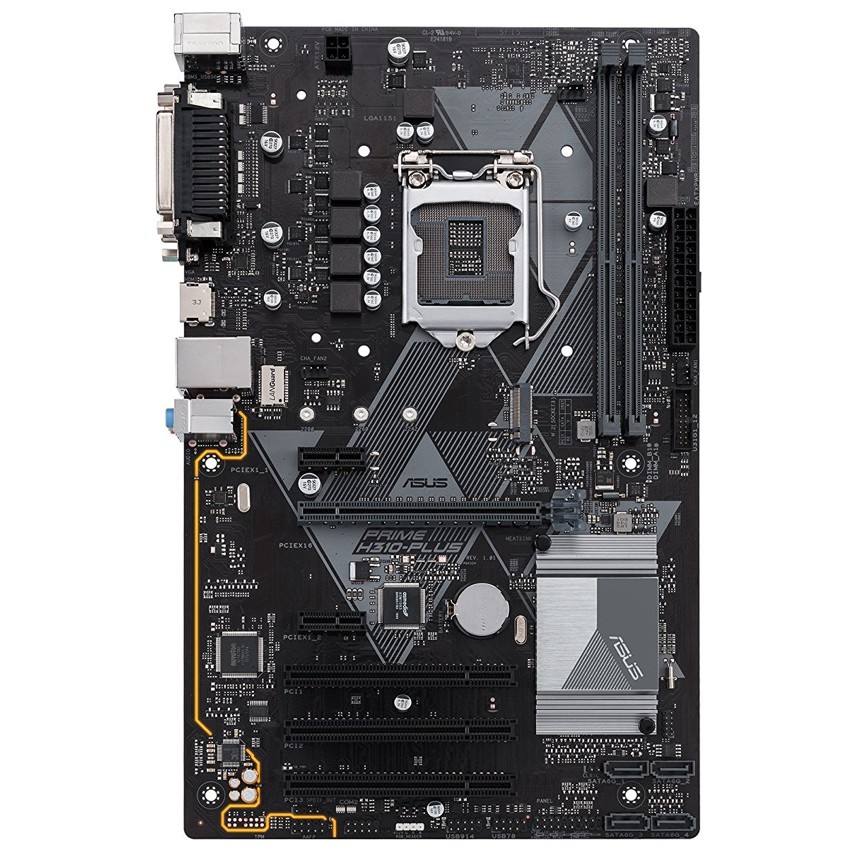

Asus Prime H310-Plus

Descripción
Placa Base ATX Intel LGA-1151 con iluminación led, DDR4 a 2666MHz, soporte M.2, HDMI, SATA de 6Gbps y USB 3.1 Gen 1
- ASUS OptiMem: Aumenta la integridad de la señales en la memoria ram para una mejor estabilidad del sistema.
- Fan Xpert 2+: Controles flexibles para la máxima refrigeración, además de detección de temperatura GPU para juegos más fríos.
- 5X Protection III: Múltiples protecciones de hardware para una protección integral.
- Máxima Velocidad: Puerto M.2 nativo para transferencias de datos ultra rápidas.

Especificaciones
CPU
- Intel® Socket 1151 for 8th Generation Core? i7/Core? i5/Core? i3/Pentium®/Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
- Intel® H310
Memoria
- 2 x DIMM, Max.
32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max.
2666MHz on Intel® 8th Gen.
6-core or higher processors; DDR4 2400MHz and higher memory modules will run at max.
2400MHz on Intel® 8th Gen.
4-core processors.
Gráficos
- Integrated Graphics Processor- Intel® HD Graphics support
- Multi-VGA output support : HDMI/D-Sub ports
  - Supports HDMI 1.4b with max.
resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
  - Supports D-sub with max.
resolution 1920 x 1200 @ 60 Hz
  - Maximum shared memory of 1024 MB (for iGPU exclusively)
Slots de Expansión
- 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- 2 x PCIe 2.0 x1
- 3 x PCI
Almacenamiento
- Intel® H310 Chipset :
- 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
- 4 x SATA 6Gb/s port(s), gray,
LAN
- Realtek® RTL8111H, 1 x Gigabit LAN
Audio
- Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
- Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
- Intel® H310 Chipset :
- 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
- Intel® H310 Chipset :
- 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Caracteristicas Especiales
- ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS EPU :
  - EPU
- ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - PC Cleaner
  - File Transfer
- ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
- ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
- ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
- M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

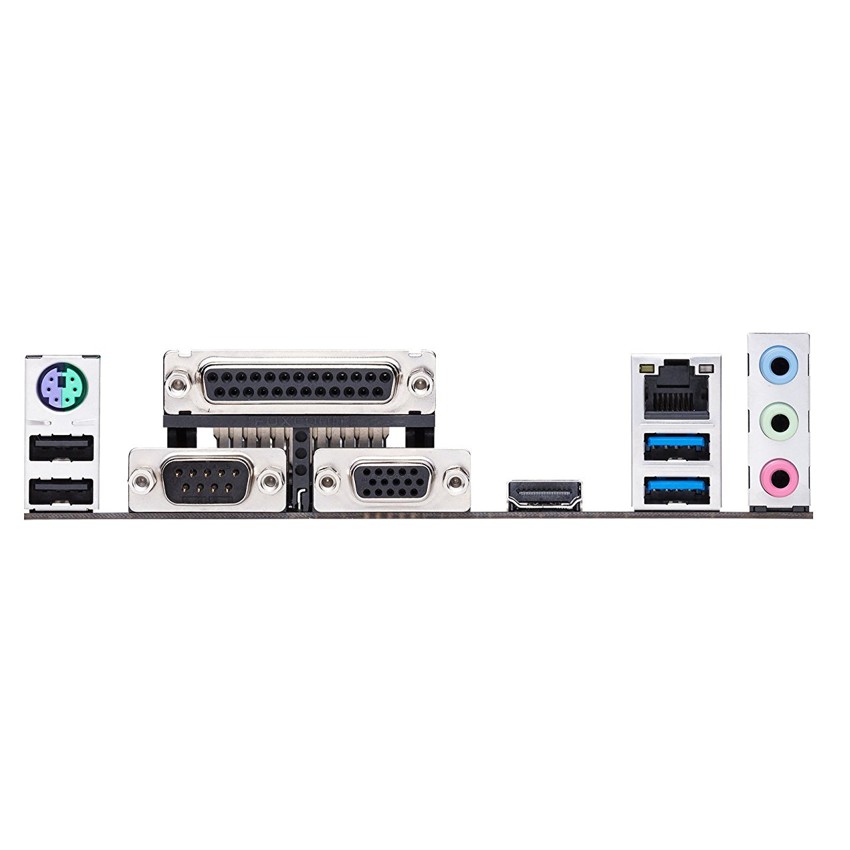

Puertos I/O Traseros
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
- 2 x USB 2.0
- 1 x COM port(s)
- 1 x LPT port
- 3 x Audio jack(s)
Internal I/O
- 1 x RGB Header(s)
- 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
- 4 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x COM port header
Accessorios
- Users manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x SCD
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Capacidad de gestión
- WOL by PME, PXE
Sistema Operativo
- Windows® 10 64-bit
Factor de forma
- ATX Form Factor
- 12 inch x 7.5 inch ( 30.5 cm x 19.1 cm )
