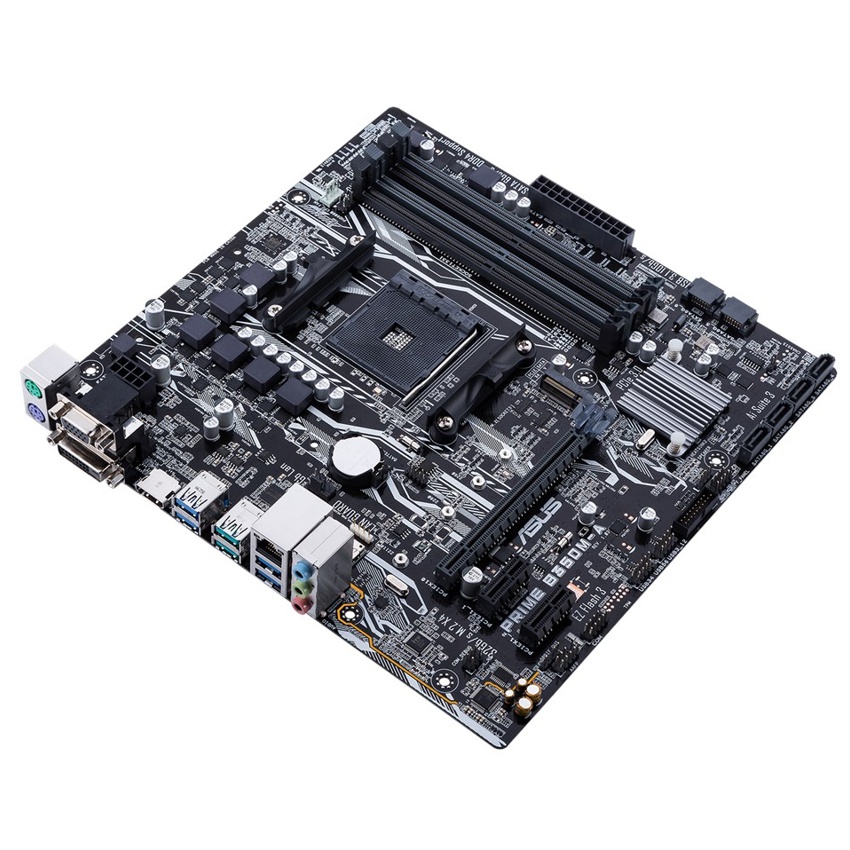

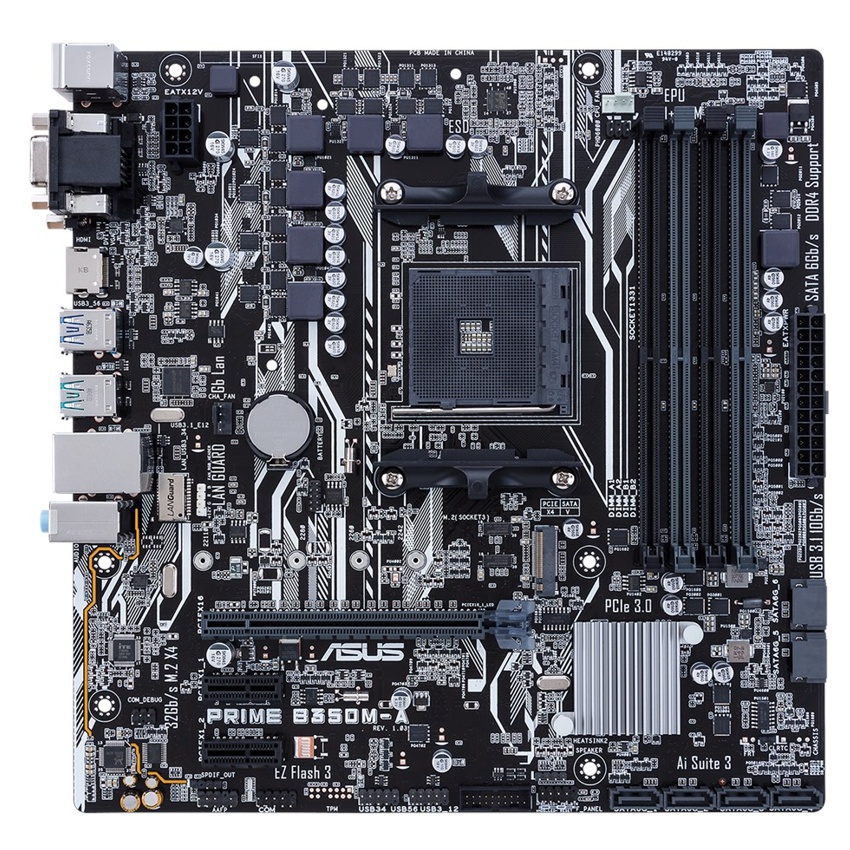

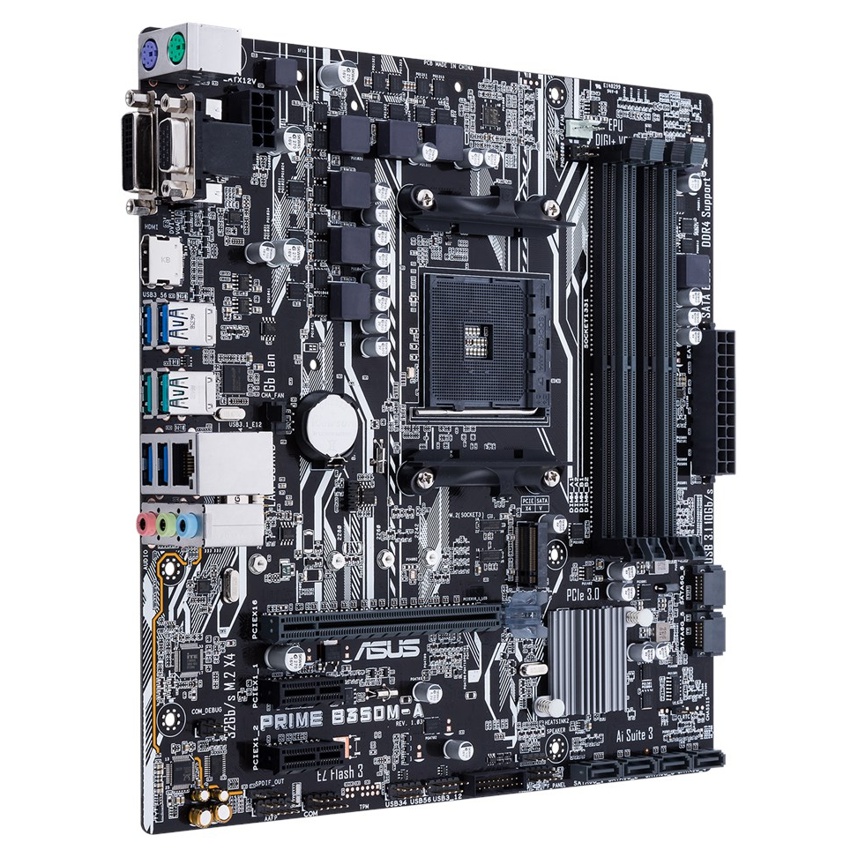

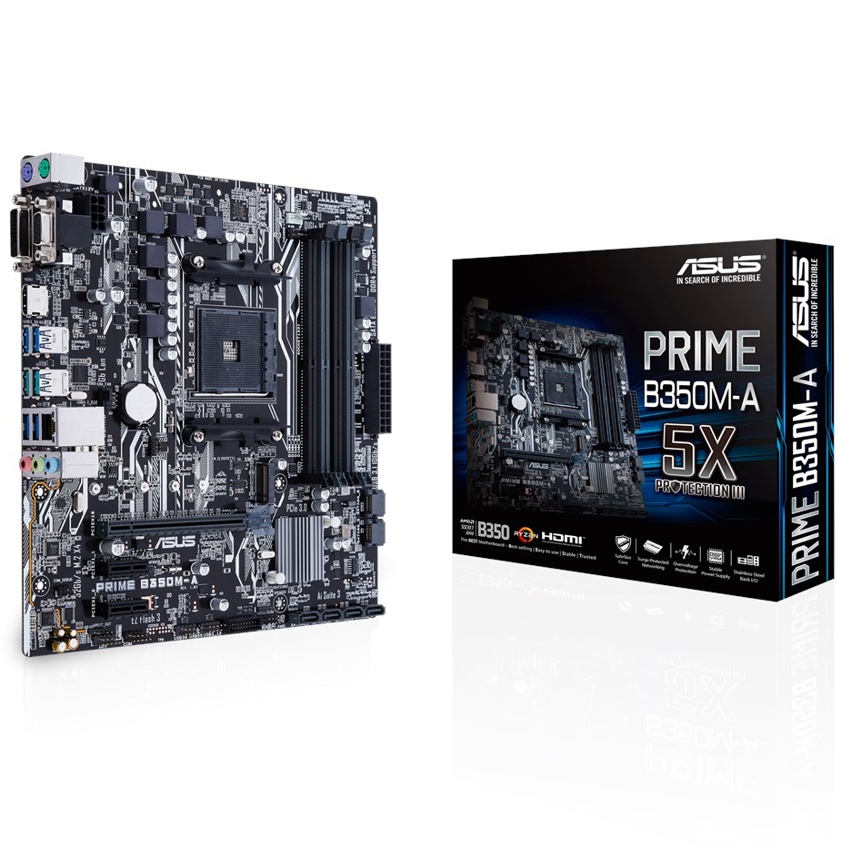

Asus Prime B350M-A

Descripción
PROVEN QUALITY
- SafeSlot Core
- Stainless Steel Back I/O
- LANGuard
- DIGI+ VRM
- Overvoltage Protection

EZ DIY
- Q-DIMM
- Q-SLOT
- EZ Flash 3

GAMING EXPERIENCE
- LED-Illuminated Design
- Audio Shielding
- Dedicated Audio PCB Layers
- Japanese Audio Caps
- FAN RGB LED Control

OPTIMIZED COOLING
- Fan Xpert



Especificaciones
CPU
- AM4 socket for AMD Ryzen?/7th Generation A-series/Athlon? Processors
- Supports CPU up to 8 cores*
- * Due to CPU limitation, CPU cores supported varies by processor.

- ** Refer to www.asus.com for the AMD® CPU support list.

Chipset
- AMD B350 Chipset

Memory
- AMD Ryzen? Processors
- 4 x DIMMs, max.
64GB, DDR4 2666/2400/2133 MHz,ECC and non-ECC, un-buffered memory
- AMD 7th Generation A-series/Athlon? Processors
- 4 x DIMMs, max.
64GB, DDR4 2400/2133 MHz, non-ECC un-buffered memory
- Dual Channel memory architecture
- ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).

Expansion Slots
- AMD Ryzen? Processors
- 1 x PCI Express 3.0/2.0 x16 slot(max.@x16 mode)
- AMD 7th Generation A-series/Athlon? Processors
- 1 x PCI Express 3.0/2.0 x16 slot(max.@x8 mode)
- AMD B350 Chipset:
- 2 x PCI Express 2.0 x1 slots

VGA- Integrated
- AMD Radeon? R Series Graphics in the 7th Generation A-Series  APU
- Multi-VGA output support: HDMI, DVI-D, D-Sub port
   - Supports HDMI 1.4b with max.
resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
   - Supports DVI-D with max.
resolution up to 1920 x 1200 @60Hz
   - Supports D-Sub with max.
resolution up to 1920 x 1200 @60Hz
   - Maximum shared memory of 2048 MB

Storage
   - 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
- AMD Ryzen? Processors
   - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)storage devices support*C33*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
- *When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
- AMD 7th Generation A-series/Athlon? Processors
   - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x2 and SATA modes)storage devices support*C33*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
- *When a SATA  mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports

LAN
- Realtek® 8111H Gigabit LAN Controller

Audio
- Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC
- *Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

USB
- ASMedia USB 3.1 controllers:
   - 2 x USB 3.1 ports (2 ports at back)
- AMD Ryzen?/7th Generation A-series/Athlon? Processors
   - 4 x USB 3.0 ports (4 ports at back panel)
- AMD B350 Chipset:
   - 2 x USB 3.0/2.0 ports ( 2 ports at mid-board)
   - 4 x USB 2.0/1.1 ports ( 4 ports at mid-board)

ASUS Unique Features
- Dependable Stability
- ASUS 5X PROTECTION III
   - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
   - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
   - ASUS Overvoltage Protection: World-class circuit-protecting power design
   - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
   - ASUS DIGI+ VRM: 6 Phase digital power design
- Superb performance
- UEFI BIOS
   - Most advanced options with fast response time
- Easy PC DIY
   - Safe motherboard mounting
      - Component-free areas to minimize damage risk
- Q-Design
   - ASUS Q-DIMM
   - ASUS Q-Slot
-       UEFI BIOS EZ Mode
   - featuring friendly graphics user interface
   - ASUS CrashFree BIOS 3
   - ASUS EZ Flash 3

ASUS Quiet Thermal Solution
- Quiet Thermal Design:
   - Stylish Fanless Design: Chipset Heat-sink
   - ASUS Fan Xpert

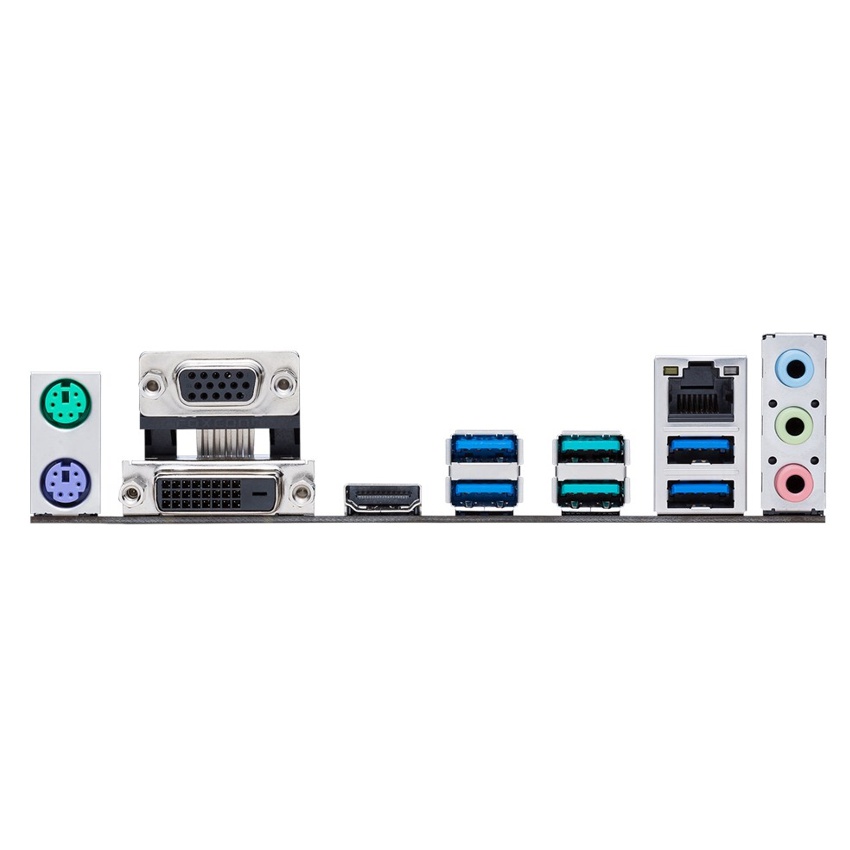

Back Panel I/O Ports
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse port (green)
- 1 x HDMI port
- 1 x DVI-D port
- 1 x D-Sub port
- 1 x LAN (RJ-45) port
- 2 x USB 3.1 ports
- 4 x USB 3.0/2.0 ports
- 3 x Audio jacks support 8-channel audio output
- 1 x USB 3.0 connector supports additional 2 USB 3.0 ports

Internal I/O Connectors
- 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
- 6 x SATA 6.0Gb/s connectors
- 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices,(both SATA & PCIE mode)
- 1 x COM connector
- 1 x CPU Fan connector
- 1 x Fan RGB header
- 1 x Chassis Fan connector (Support DC & PWM mode)
- 1 x Front panel audio connector
- 1 x 24-pin EATX Power connector
- 1 x 8-pin ATX 12V Power connector
- 1 x 2-pin Clear CMOS
- 1 x System Panel connector
- 1 x Speaker connector
- 1 x S/PDIF out header

BIOS
 - 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Manageability
- WfM 2.0, DMI 3.0, WOL by PME, PXE

Accessories
- 2 x Serial ATA 6.0Gb/s cables
- 1 x I/O shield
- 1 x M.2 screw package
- 1 x Users manual

Support DVD
- Drivers
- ASUS Utilities
- ASUS Update
- Anti-virus software (OEM version)

Operating System Support
- Windows® 10 (64-bit)

Form Factor
- uATX Form Factor, 9.6" x  9.45" (24.4 cm x 24 cm)
