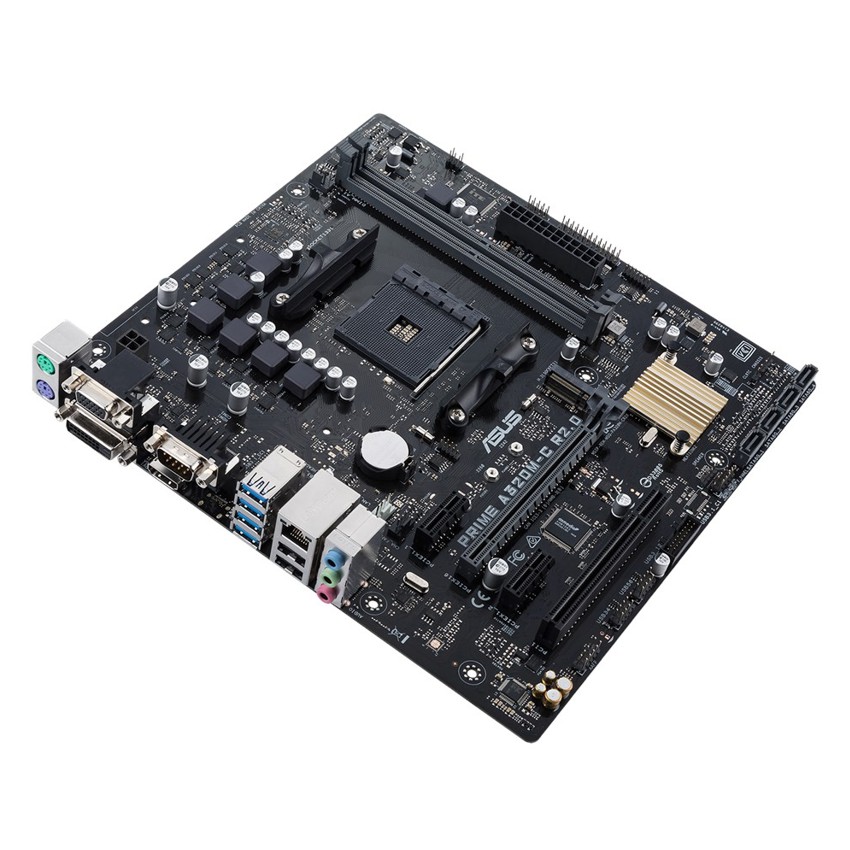

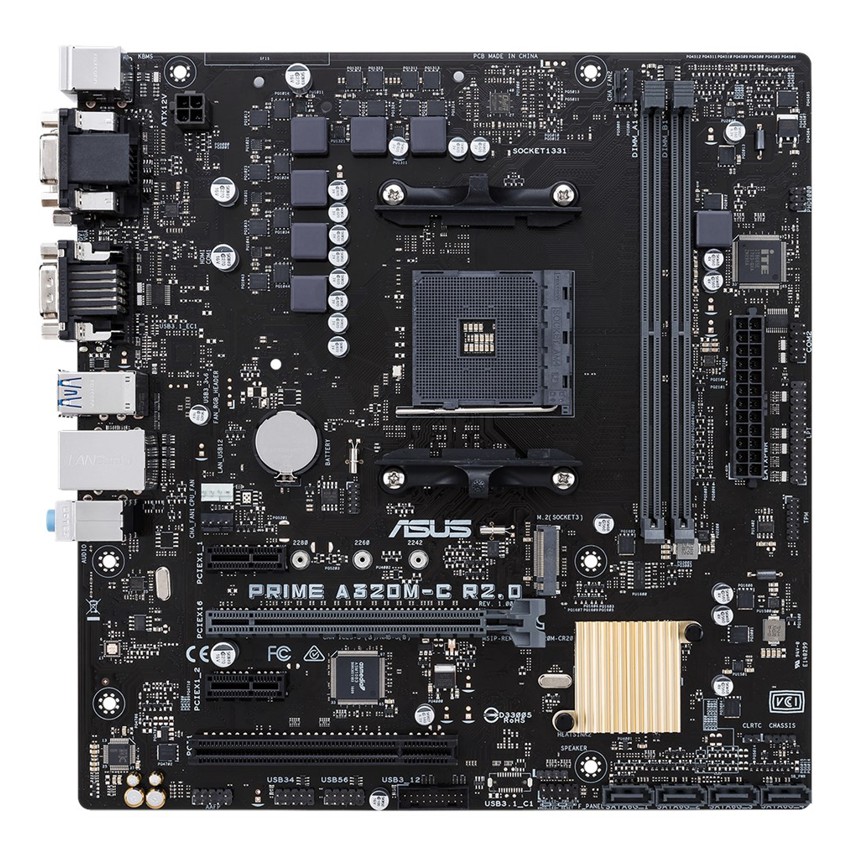

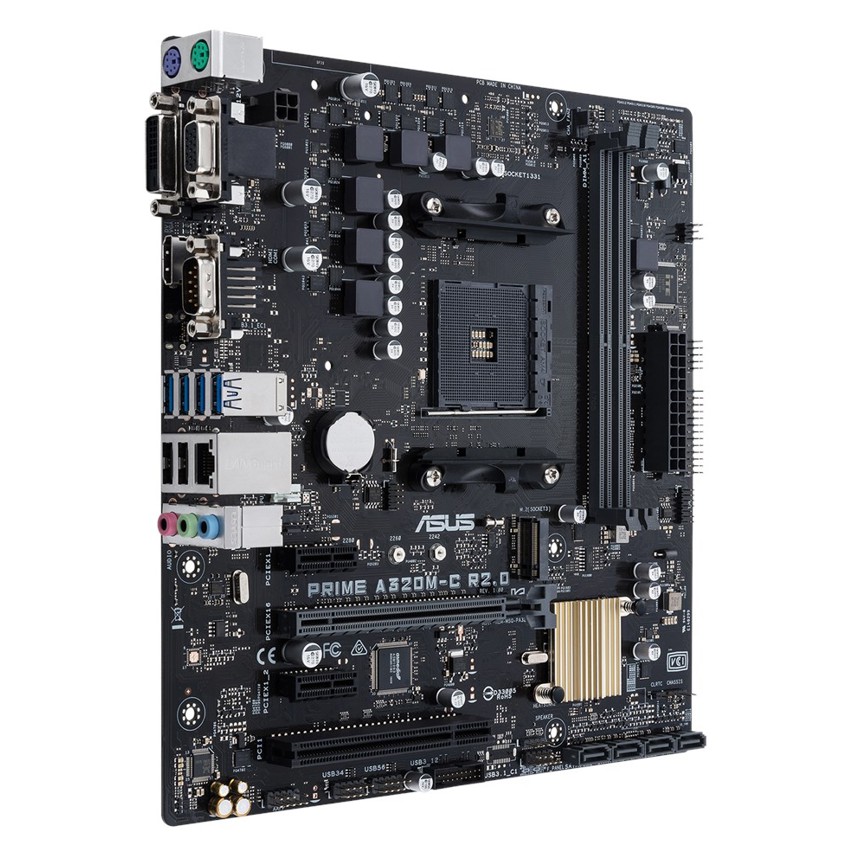

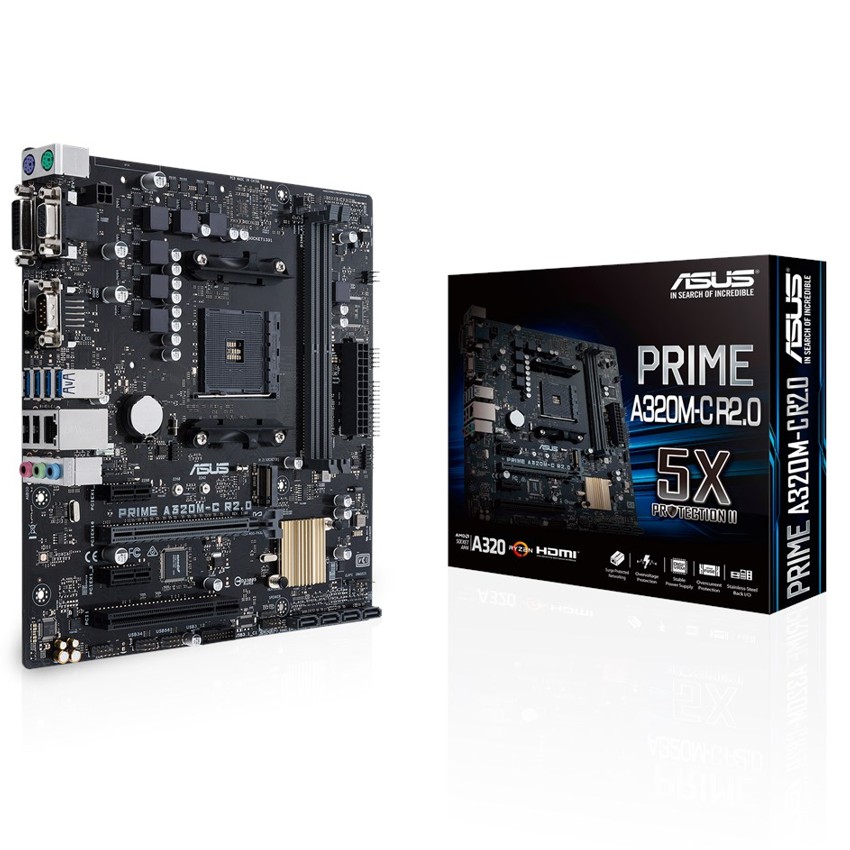

Asus Prime A320-C R2.0

Descripción
Tarjeta madre AMD AM4 uATX con 5X Protection II, DDR4 3200MHz, NVMe PCIe Gen3 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.1 Gen 1
5X Protection II ? Avanzadas salvaguardas de hardware para protección general
M.2 nativo: Velocidades de almacenamiento ultra rápidas
Controles one-stop: Aclamado UEFI BIOS con EZ Flash 3

Especificaciones
CPU
- AMD AM4 Socket for AMD Ryzen?/AMD Ryzen? 2nd Generation/7th Generation A-series/Athlon? Processors
- Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Chipset
- AMD A320
Memoria
- AMD Ryzen? 2nd Generation/ Ryzen? 1st Generation Processors
  - 2 x DIMM, Max.
32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
- AMD 7th Generation A-series/Athlon? Processors
  - 2 x DIMM, Max.
32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  - Dual Channel Memory Architecture
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
- Integrated AMD Radeon? R Series Graphics in the 7th Generation A-Series APU *1
- Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI 1.4b with max.
resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max.
resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max.
resolution 1920 x 1200 @ 60 Hz
- Maximum shared memory of 2048 MB (for iGPU exclusively)
Slots de Expansión
- AMD Ryzen? 2nd Generation/ Ryzen? 1st Generation Processors
  - 1 x PCIe 3.0/2.0 x16 (x16 mode)
- AMD 7th Generation A-series/Athlon? Processors
  - 1 x PCIe 3.0/2.0 x16 (x8 mode)
- AMD A320 chipset
  - 2 x PCIe 2.0 x1
  - 1 x PCI
Almacenamiento
- AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10
- AMD Ryzen? 2nd Generation/ Ryzen? 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- AMD 7th Generation A-series/Athlon? Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN
- Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
- Realtek® ALC887 8-Channel High Definition Audio CODEC
Puertos USB
- AMD Ryzen?/7th Generation A-series/Athlon? Processors :  4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
- AMD A320 chipset :  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
- AMD A320 chipset :  6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Caracteristicas Especiales
- ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 6 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
- ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
- ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM

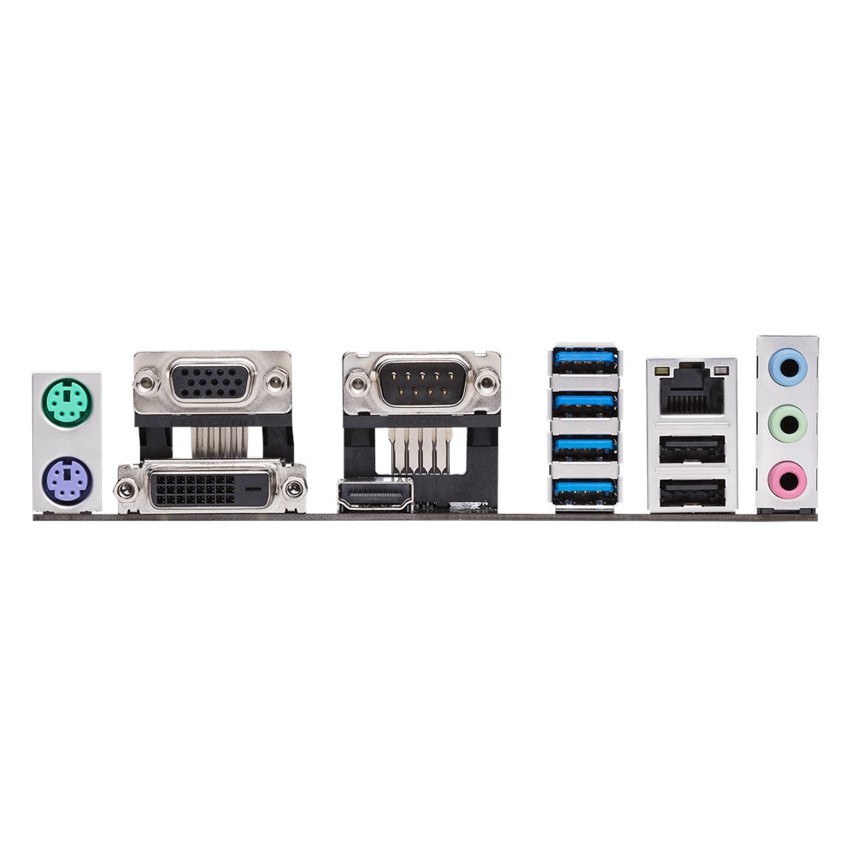

Puertos I/O Traseros
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.1 Gen 1 (blue) ,
- 2 x USB 2.0
- 1 x COM port(s)
- 3 x Audio jack(s)
Internal I/O
- 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x LPT header
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
- 1 x 14-1 pin TPM connector
- 1 x Chassis intrusion header
- 1 x Speaker connector
Accessorios
- Users manual
-I/O Shield
-2 x SATA 6Gb/s cable(s)
-1 x M.2 Screw Package
-1 x Supporting DVD
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Sistema Operativo
- Windows® 10 64-bit
Factor de forma
- mATX Form Factor
- 9.6 inch x 9.3 inch ( 24.4 cm x 23.6 cm )
Nota
*1?AMD Ryzen? Processor does not support
